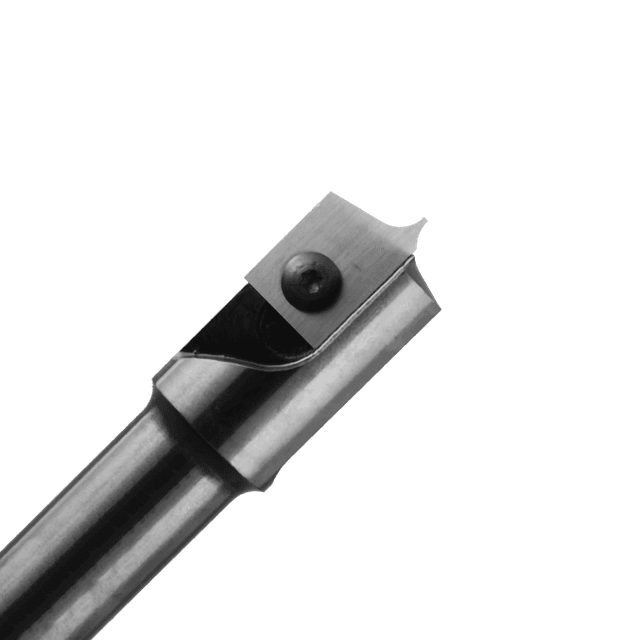

Insert Radius Profile Router Bit
Tool is used primarily when manufacturing MDF door profiles. Single steel tool body can accept "A-E" profiles. Sold with selected profile installed, optional/replacement profiled inserts available.
| Part | D | Ds | r | Sh | Z | Rotation | OA |
|---|---|---|---|---|---|---|---|
| 562R1.026-1W-A | 26mm | 1mm | 5mm | 0.750" | 1 | RH | 2.750" |
| 562R1.026-1W-B | 26mm | 1mm | 4mm | 0.750" | 1 | RH | 2.750" |
| 562R1.026-1W-C | 26mm | 1mm | 3mm | 0.750" | 1 | RH | 2.750" |
| 562R1.026-1W-D | 26mm | 1mm | 2mm | 0.750" | 1 | RH | 2.750" |
| 562R1.026-1W-E | 26mm | 1mm | 20° | 0.750" | 1 | RH | 2.750" |

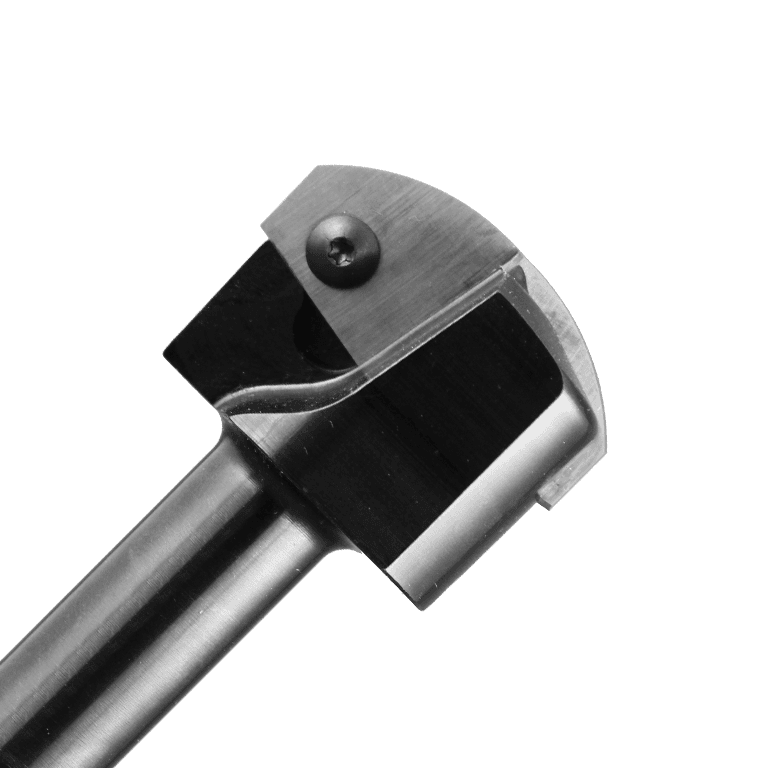

Insert Inside Profile Router Bit
Tool is used primarily when manufacturing MDF door profiles. Single steel tool body can accept "A-D" profiles. Sold with selected profile installed, optional/replacement profiled inserts available.
| Part | D | Sh | Z | Rotation | OA |
|---|---|---|---|---|---|
| 564IP.041-2W-A | 40mm | 0.750" | 2 | RH | 90mm |
| 564IP.041-2W-B | 40mm | 0.750" | 2 | RH | 90mm |
| 564IP.041-2W-C | 40mm | 0.750" | 2 | RH | 90mm |
| 564IP.041-2W-D | 40mm | 0.750" | 2 | RH | 90mm |

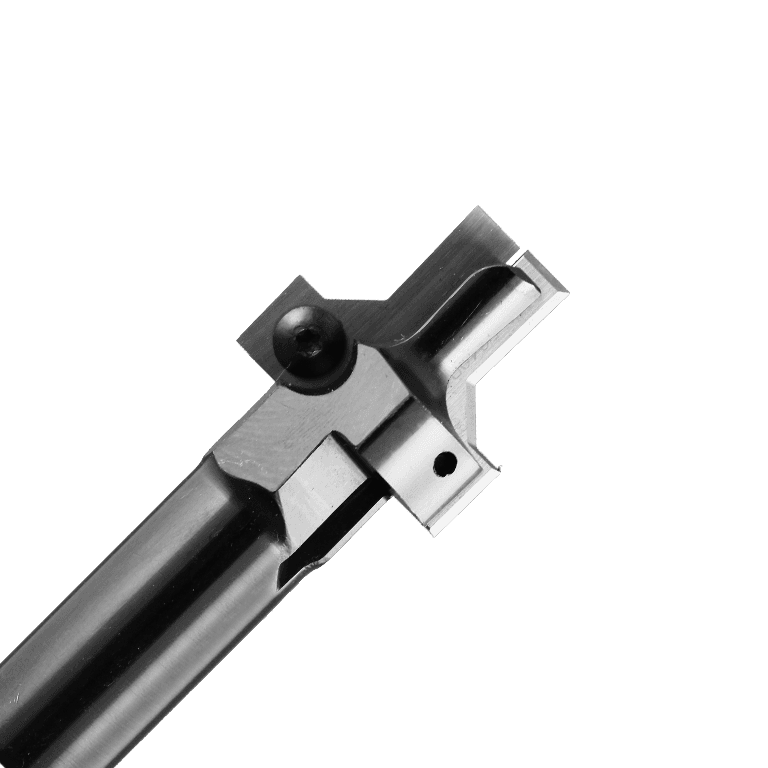

Insert Outside Edge Profile Router Bit
Tool is used primarily when manufacturing MDF door profiles. Single steel tool body can accept "A-D" profiles. Sold with selected profile installed, optional/replacement profiled inserts available.
| Part | D | Sh | Z | Rotation | OA |
|---|---|---|---|---|---|
| 564OP.016-2W-A | 35mm | 0.750" | 2 | RH | 3.500" |
| 564OP.016-2W-B | 35mm | 0.750" | 2 | RH | 3.500" |
| 564OP.016-2W-C | 35mm | 0.750" | 2 | RH | 3.500" |
| 564OP.016-2W-D | 35mm | 0.750" | 2 | RH | 3.500" |
Insert Panel and Outside Router Bit
Tool is used primarily when manufacturing MDF door profiles. Single steel tool body can accept "A-D" profiles. Sold with selected profile installed, optional/replacement profiled inserts available.
| Part | D | Sh | Z | Rotation | OA |
|---|---|---|---|---|---|
| 564RP.050-2W-A | 50mm | 0.750" | 2 | RH | 3.500" |
| 564RP.050-2W-B | 50mm | 0.750" | 2 | RH | 3.500" |
| 564RP.050-2W-C | 50mm | 0.750" | 2 | RH | 3.500" |
| 564RP.050-2W-D | 50mm | 0.750" | 2 | RH | 3.500" |

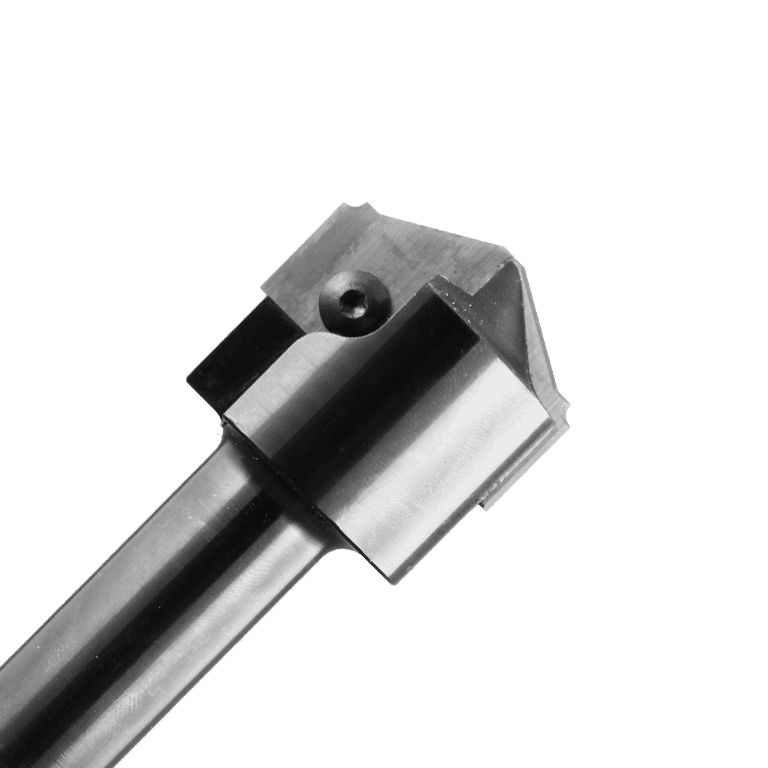

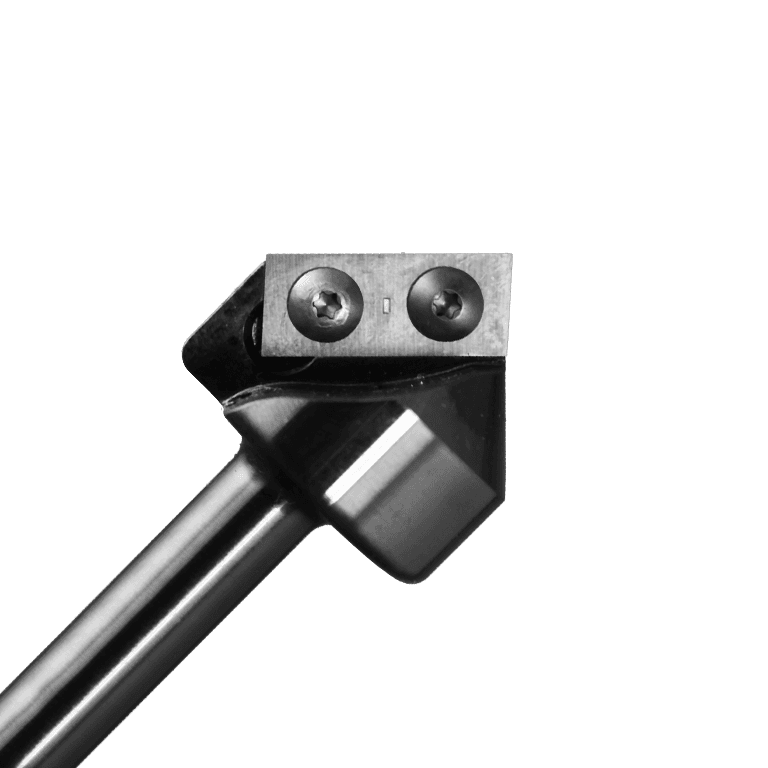

Insert Lock Mitre Router Bit
Insert router bit designed for machining lock mitre. Great for range hoods or posts. 2 separate tools create joints that can be assembled together. Locking joint helps align edges and create a stronger joint. 13/16"Lx x 1/2"Lm
| Part | D | Ds | a1 | Sh | Z | Rotation | OA |
|---|---|---|---|---|---|---|---|
| 564LM.050-023F | 2.000" | 0.617" | 135° | 0.750" | 2 | RH | 3.750" |
| 564LM.050-023M | 2.000" | 0.617" | 135° | 0.750" | 2 | RH | 3.750" |
| 564LM.060-045F | 2.400" | 0.500" | 90° | 0.750" | 2 | RH | 3.750" |
| 564LM.060-045M | 2.400" | 0.500" | 90° | 0.750" | 2 | RH | 3.750" |

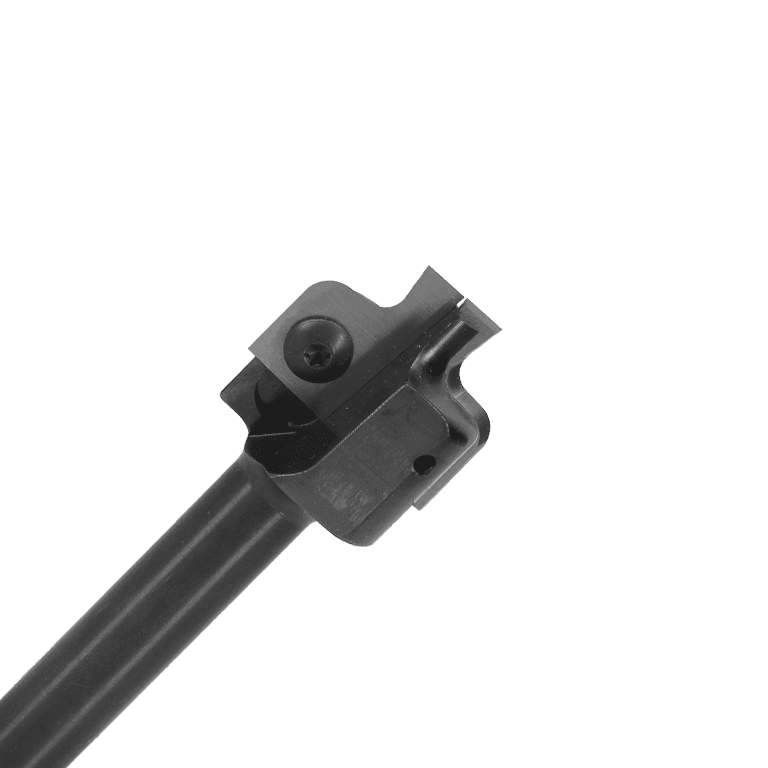

Insert Dovetail Router Bit
Tool is used primarily when manufacturing drawer boxes. Single steel tool body can accept "A" profile. Sold with selected profile installed, replacement profiled inserts available.
| Part | D | Ds | Sh | Z | Rotation | OA |
|---|---|---|---|---|---|---|
| 564DT.030-2W-A | 30.88mm | 11.18mm | 0.5000" | 2 | RH | 3.500" |

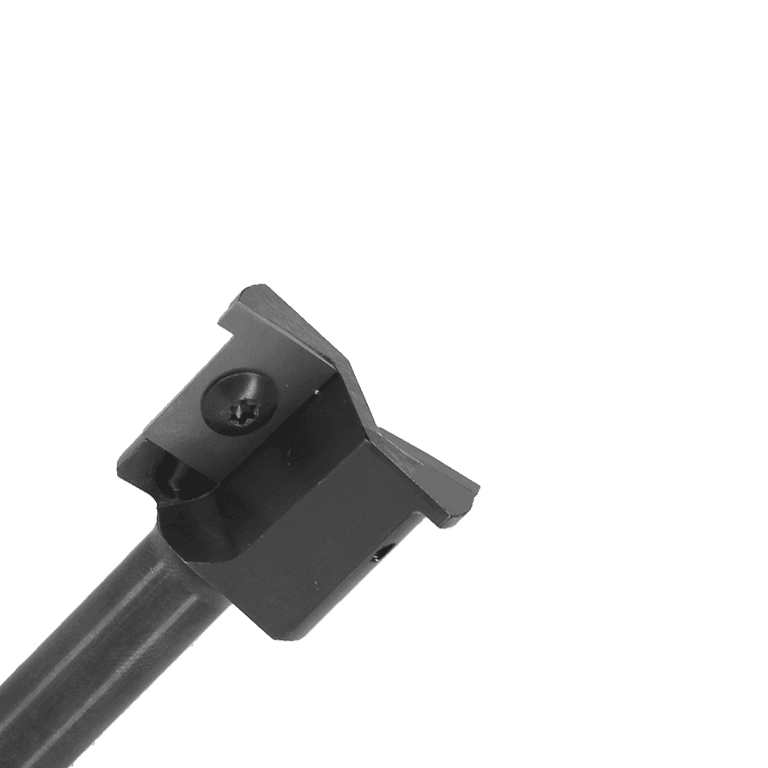

Insert Slim Shaker Router Bit
Tool is used primarily when manufacturing slim shaker MDF Cabinet Doors. Single steel tool body can accept "A" profile. Sold with "A" profile installed, replacement profiled inserts available.
| Part | D | Ds | CE | Sh | Z | Rotation | OA |
|---|---|---|---|---|---|---|---|
| 564SS.038-2W-A | 1.500" | 1.264" | 0.781" | 0.5000" | 2 | RH | 2.530" |
Insert Small Diameter Router Bit
Insert router bit with unique gib design to create a stronger tool at smaller diameters. Knives can be rotated once for a new cutting edge.
| Part | D | CE | Sh | Z | Rotation | OA |
|---|---|---|---|---|---|---|
| 565.012.030L | 0.500" | 30mm | 0.500" | 1 | LH | 3.125" |
| 565.012.030R | 0.500" | 30mm | 0.500" | 1 | RH | 3.125" |

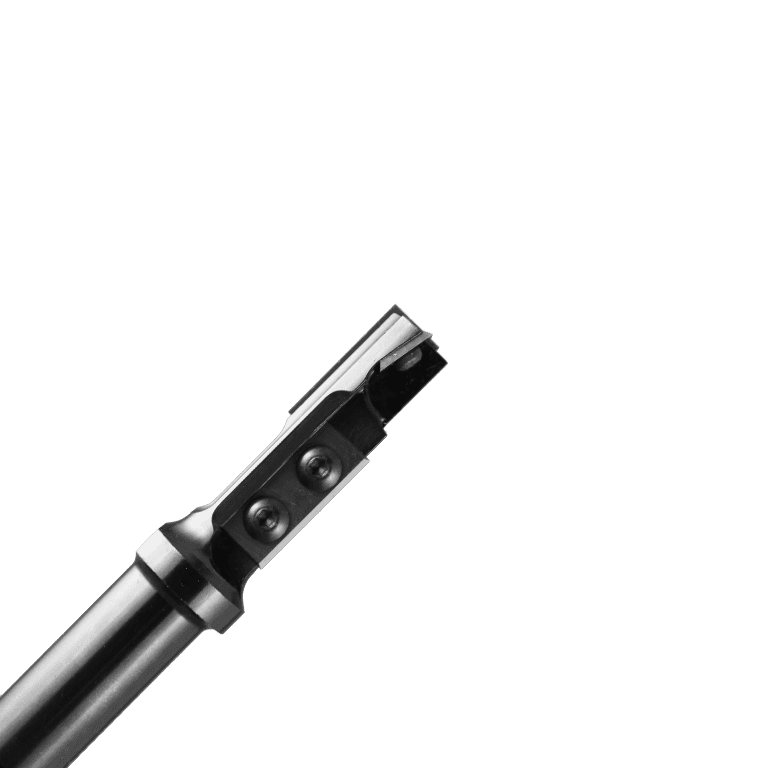

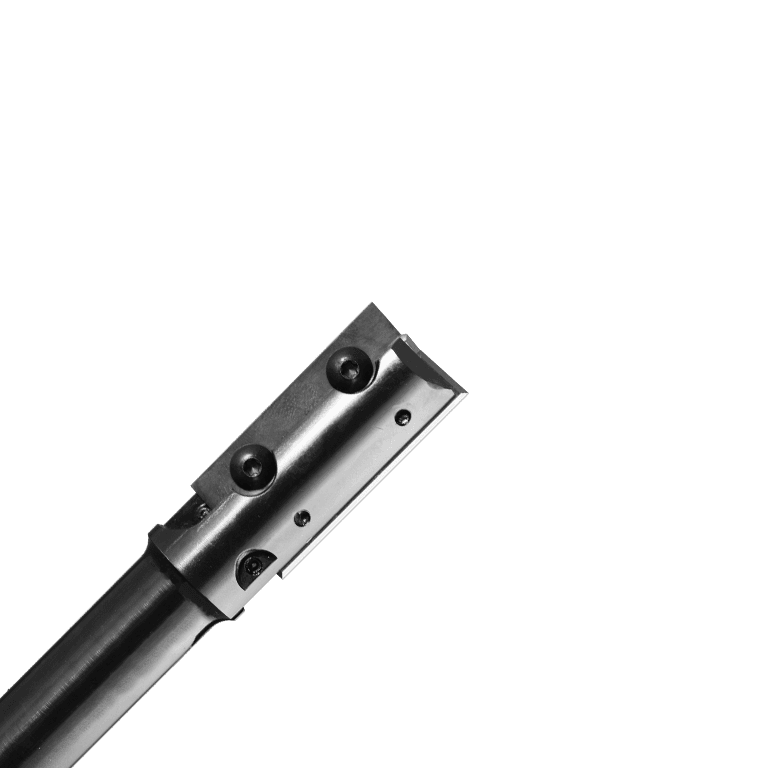

Insert Single Flute Router Bit
Single flute insert router bit. Knives can be rotated once for a new cutting edge. Good general purpose tool. Tool does not have to be measured after knife changes.
| Part | D | CE | Sh | Z | Rotation | OA |
|---|---|---|---|---|---|---|
| 566-016.030 | 16mm | 30mm | 0.500" | 1 | RH | 3.375" |
| 566-016.0502 | 16mm | 50mm | 0.625" | 1 | RH | 4.500" |
| 566.019.030R | 0.750" | 30mm | 0.750" | 1 | RH | 4.000" |
| 566.019.050L | 0.750" | 50mm | 0.750" | 1 | LH | 4.750" |
| 566.019.050R | 0.750" | 50mm | 0.750" | 1 | RH | 4.750" |

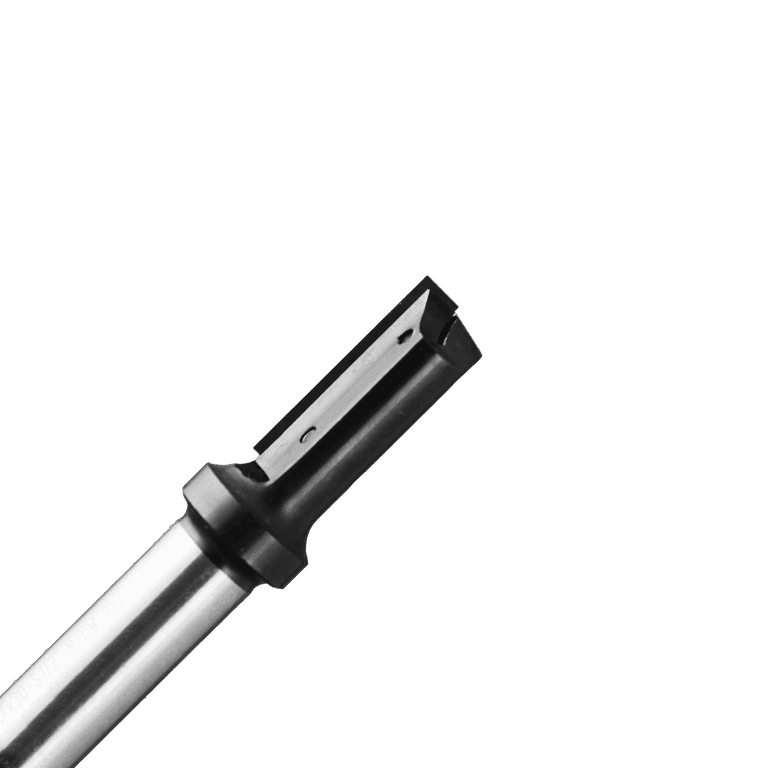

Insert Single Flute with Plunge Router Bit
Single flute insert router bit. Knives can be rotated once for a new cutting edge. Good general purpose tool, tool does not have to be measured after knife change. Tool has plunge point to allow straight plunging.
| Part | D | CE | Sh | Z | Rotation | OA |
|---|---|---|---|---|---|---|
| 569.16.030-1/2 | 0.625" | 30mm | 0.500" | 1 | RH | 3.500" |
| 569.19.030 | 0.750" | 30mm | 0.750" | 1 | RH | 3.500" |
| 569.19.030-LH | 0.750" | 30mm | 0.750" | 1 | LH | 3.500" |
| 569.19.050 | 0.750" | 55mm | 0.750" | 1 | RH | 4.500" |
| 569.25.050 | 1.000" | 55mm | 0.750" | 1 | RH | 4.750" |

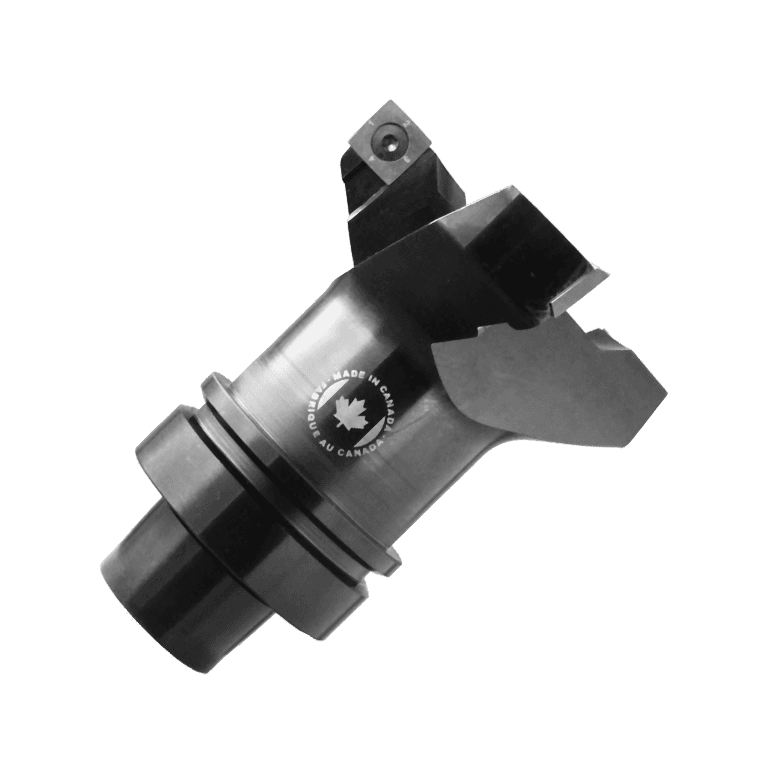

Integrated Insert Surfacing Tool
Insert router bit designed for surfacing and pocketing applications. “Integrated” tool design eliminates any run out and deflection generated by collet interface. Extremely rigid tool has radius inserts for improved bottom finish.
| Part | D | CE | Wt | Core | Z | Rotation | OA |
|---|---|---|---|---|---|---|---|
| 563SI.075.14-63F3 | 3" | 0.551" | 4lbs | HSK63F | 3 | RH | 100mm |
| 563SI.100.14-63F3 | 4" | 0.590" | 4.5lbs | HSK63F | 3 | RH | 100mm |

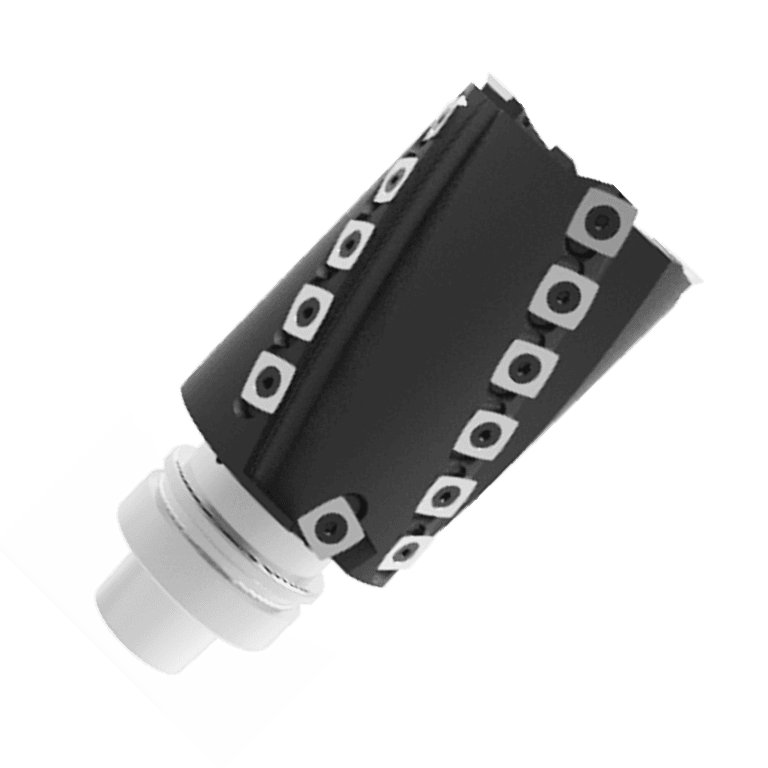

Integrated Insert 510HI Hogging Tool
Best suited for hogging solid wood on CNC routers. Inserts can be rotated when dull. Tool has spurs to allow rebating. Reduce cycle times by utilizing the high removal rates. Integrated tool design for maximum tool strength and reduced run out.
| Part | D | CE | Wt | Core | Z | Rotation | OA |
|---|---|---|---|---|---|---|---|
| 510HI-090.120.63F2 | 90mm | 120mm | 10.9lbs | HSK63F | 2 | RH | 180mm |
Integrated Insert 533FI Hogging Tool
Best suited for hogging solid wood on CNC routers. Inserts can be rotated 4 times when dull. Tool has spurs to allow rebating. Reduce cycle times by utilizing the high removal rates. Integrated tool design for maximum tool strength and reduced run out. Lighter design than the 510HI tool above. Spiralex design allows smaller diameter.
| Part | D | CE | Wt | Core | Z | Rotation | OA |
|---|---|---|---|---|---|---|---|
| 533FI.070.100-63F2 | 70mm | 100mm | 8.2lbs | HSK63F | 2 | RH | 170mm |
| 533FI.070.100-63F2.L | 70mm | 100mm | 8.2lbs | HSK63F | 2 | LH | 170mm |

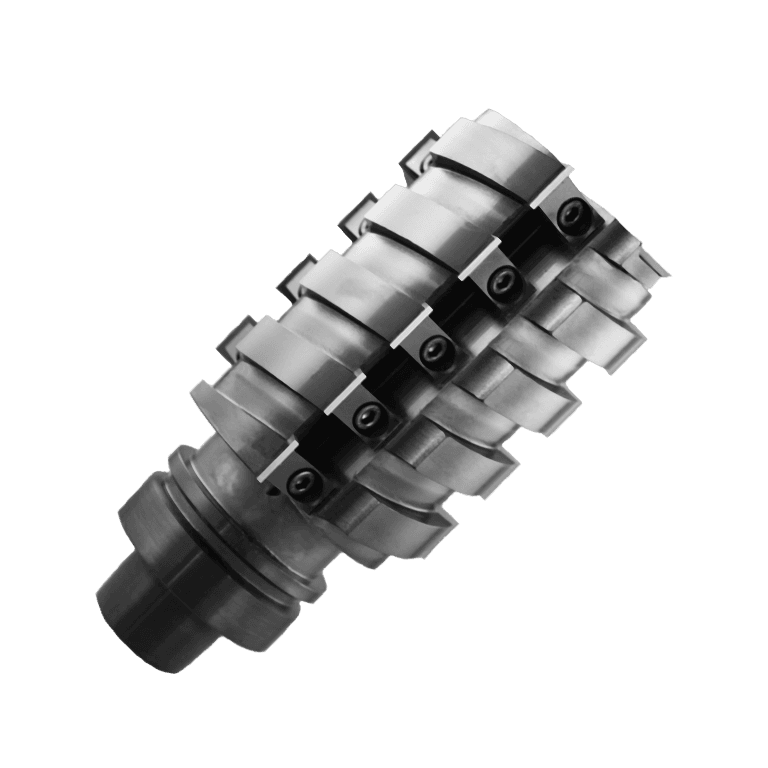

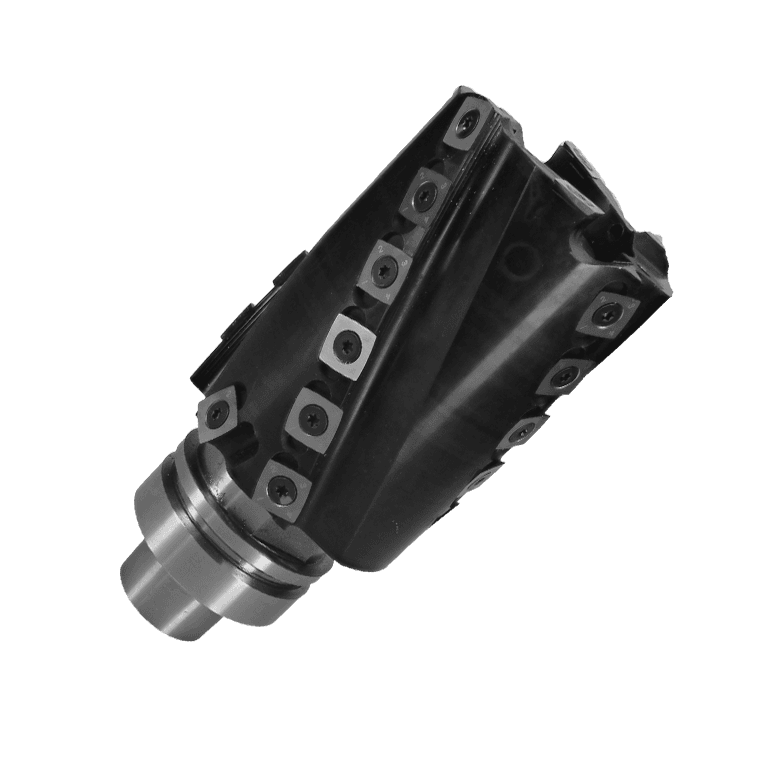

Integrated Insert 533H Lightweight Hogging Tool
Best suited for hogging solid wood on CNC routers. Inserts can be rotated 4 times when dull. Tool has spurs to allow rebating. Reduce cycle times by utilizing the high removal rates. Aluminum body for lightweight design.
| Part | D | CE | OA | Rotation | Z | Core | Wt |
|---|---|---|---|---|---|---|---|
| 533H.040.190.63E | 40mm | 191mm | 240mm | RH | 2 | HSK63E | 4.5lbs |
| 533H.040.190.63F | 40mm | 191mm | 240mm | RH | 2 | HSK63F | 4.5lbs |
| 533H.090.120.63F2 | 90mm | 129mm | 170mm | RH | 2 | HSK63F | 7.2lbs |
| 533H.090.200.63F2 | 90mm | 200mm | 239mm | RH | 2 | HSK63F | 9.5lbs |

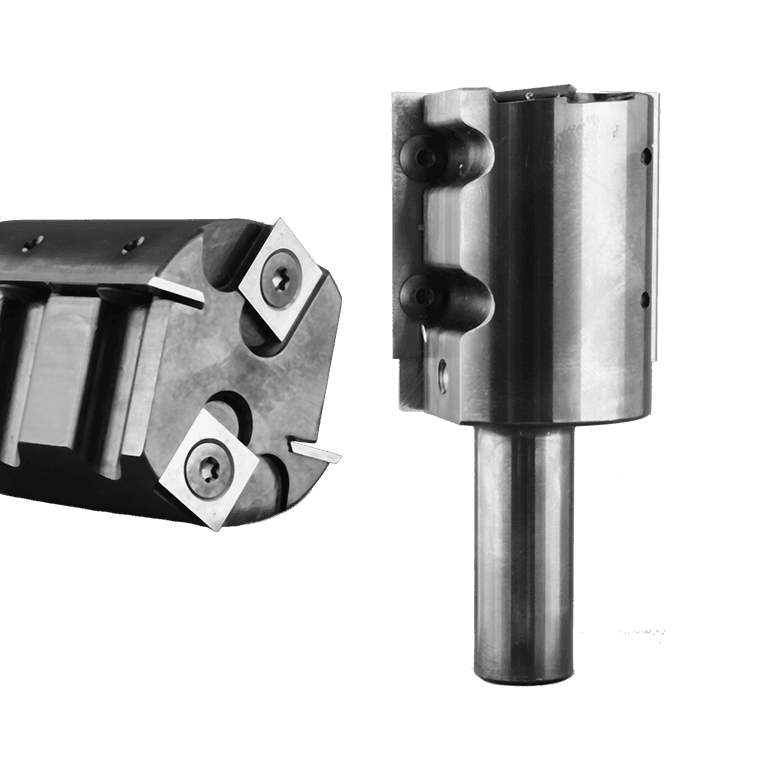

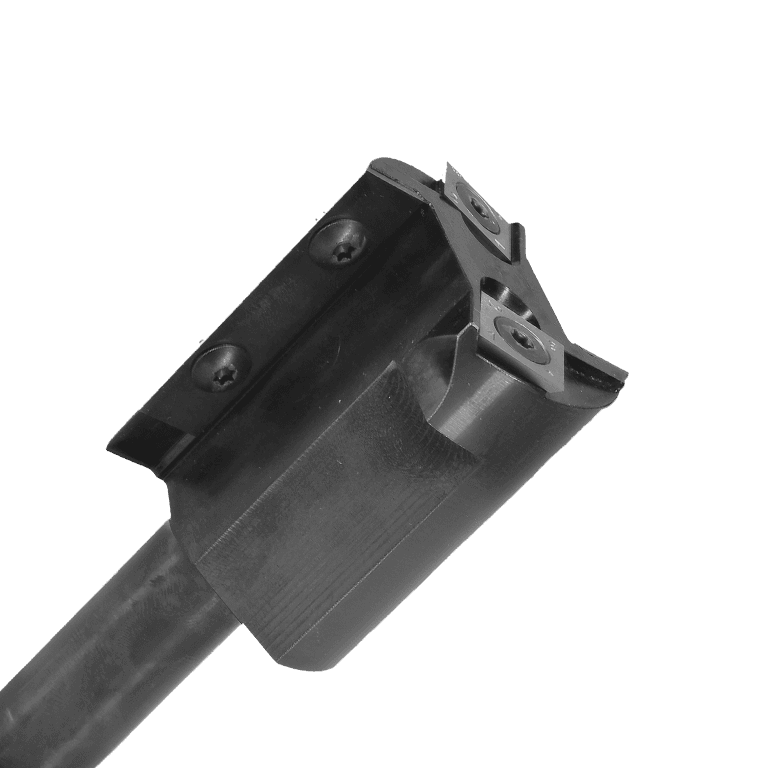

Insert Rebate Router Bit
Turn over knife "TOK" insert router bit. Reversible knives have 2 cutting edges. Good for producing rebates in solid wood suitable for cutting MDF and some plastics. 2 spurs on the bottom of the tool for improved bottom cutting.
| Part | D | CE | Sh | Z | Rotation | OA |
|---|---|---|---|---|---|---|
| 561.050.050 | 50mm | 50mm | 0.750" | 2 | RH | 110mm |
| 561.060.050 | 60mm | 50mm | 0.750"" | 2 | RH | 120mm |
