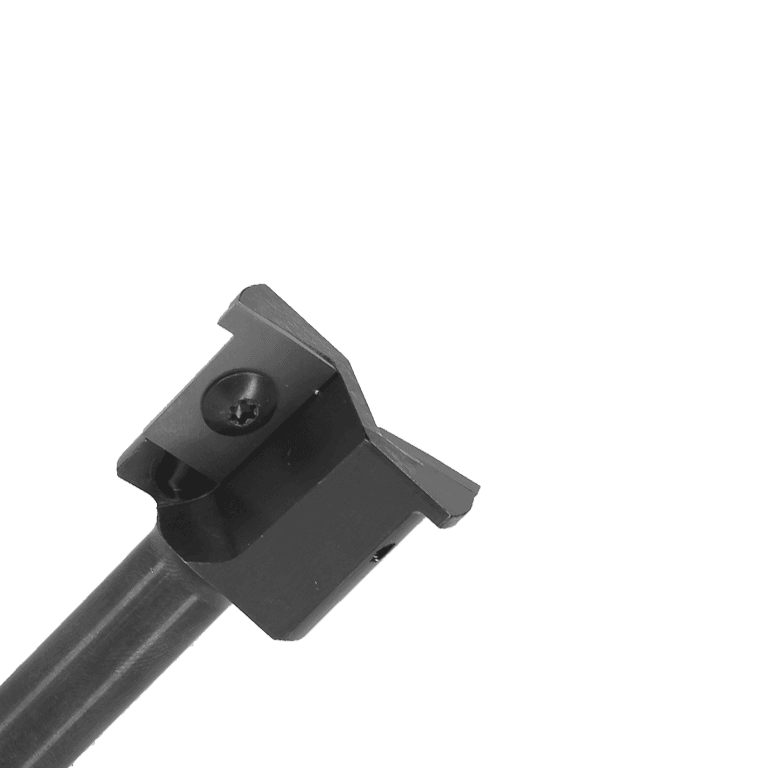

Insert Slim Shaker Router Bit
Tool is used primarily when manufacturing slim shaker MDF Cabinet Doors. Single steel tool body can accept "A" profile. Sold with "A" profile installed, replacement profiled inserts available.
Hw
Fb
Hp
Rp
Machine Types
CNC Router
Industries
MDF Door Manufacturing

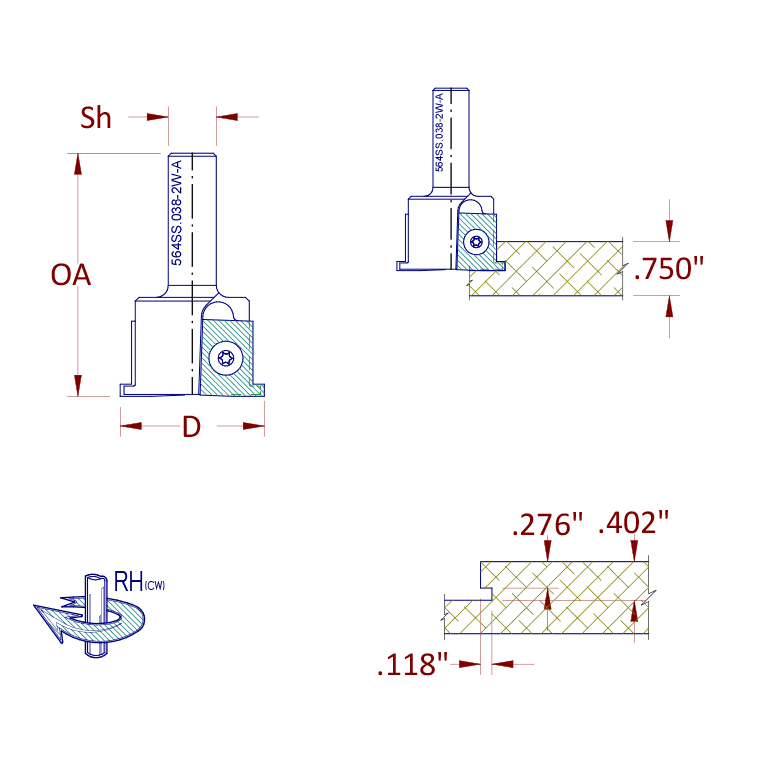

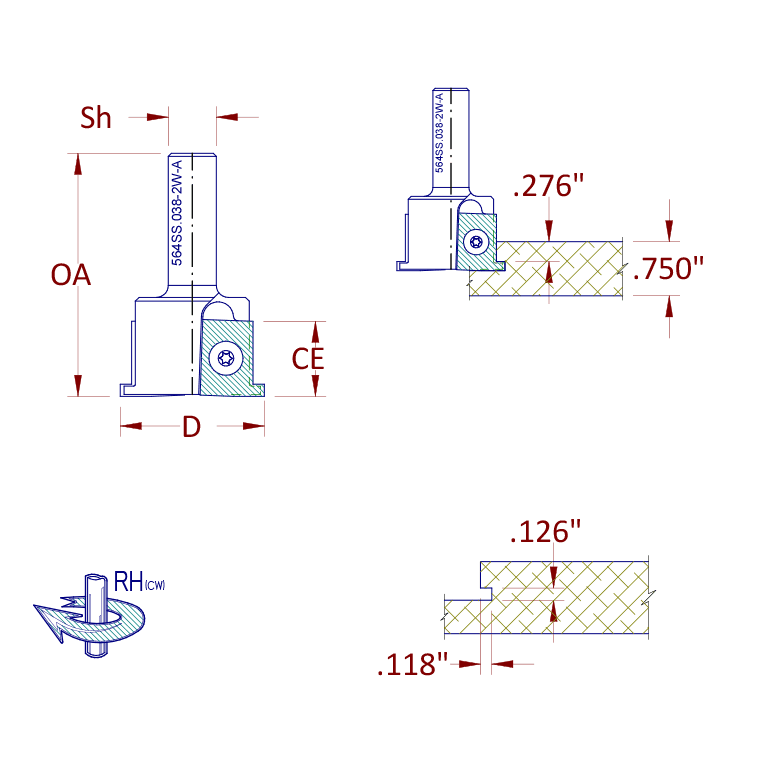

| Part | D | Ds | Sh | Z | Rotation | OA |
|---|---|---|---|---|---|---|
| 564SS.038-2W-A | 1.500" | 1.264" | 0.5000" | 2 | RH | 2.530" |
