564DT.030-2W-A

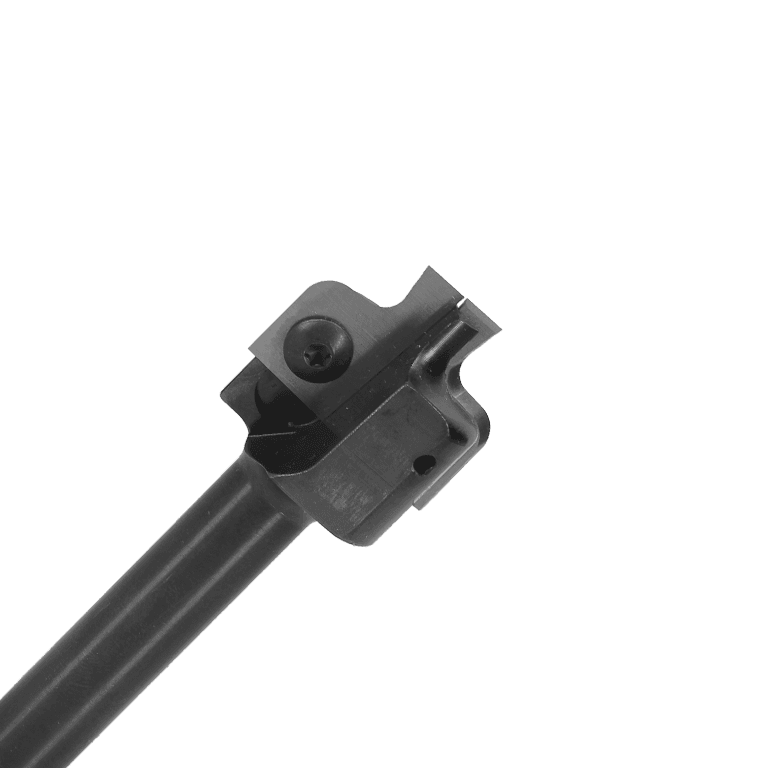

Tool is used primarily when manufacturing drawer boxes. Single steel tool body can accept "A" profile. Sold with "A" profile installed, replacement profiled inserts available.

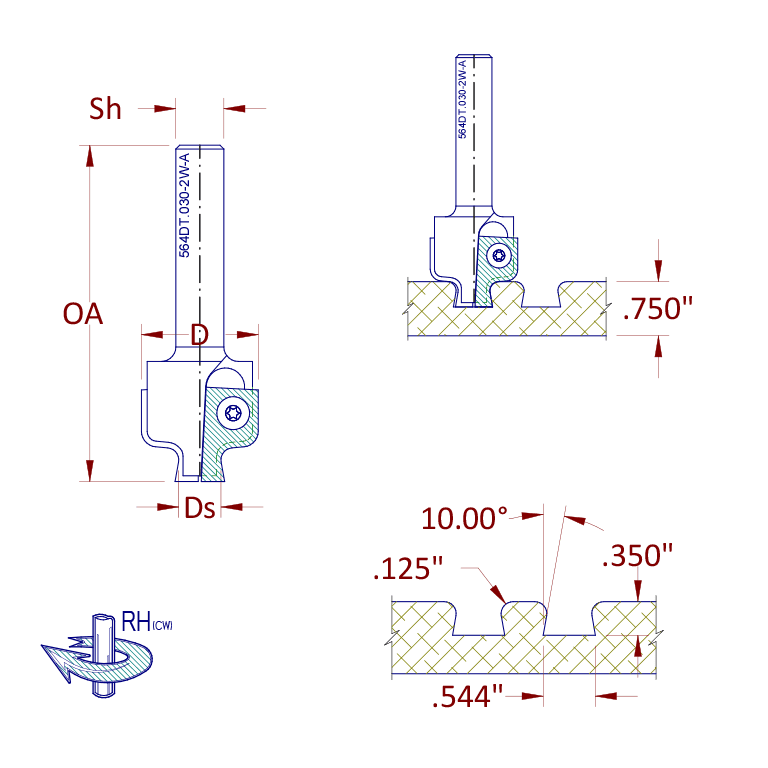

Diameter (D) | 30.88mm |
Shank (Sh) | 0.5000" |
Overall Length (OA) | 3.500" |
Number of Wings/Flutes/Teeth (Z) | 2 |
Material (Material) | HW |
Rotation (Rotation) | RH |
Small Diameter (Ds) | 11.18mm |
Replacement Parts
| Part Number | Description | Quantity Per One |
|---|---|---|
| 564DT.030-2W | Replacement Tool Body | 1 |
| 158-564DT.030-2W-A | Replacement Insert Knife | 2 |
