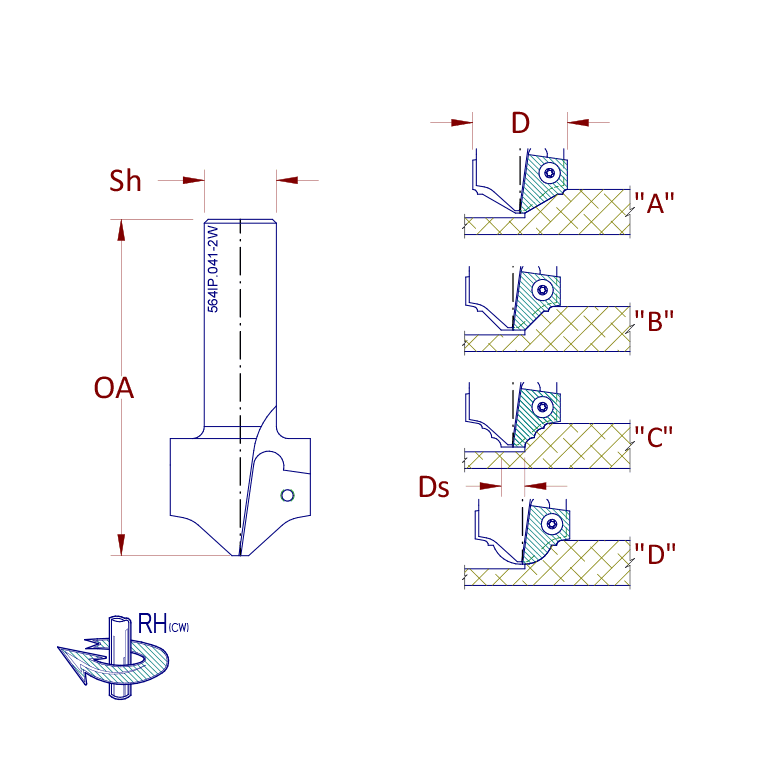

Insert Inside Profile Router Bit
Tool is used primarily when manufacturing MDF door profiles. Single steel tool body can accept "A-D" profiles. Sold with selected profile installed, optional/replacement profiled inserts available.
Hw
Fb
Hp
Rp
Machine Types
CNC Router
Industries
MDF Door Manufacturing
| Part | D | Sh | OA | Z | Rotation |
|---|---|---|---|---|---|
| 564IP.041-2W-A | 40mm | 0.750" | 90mm | 2 | RH |
| 564IP.041-2W-B | 40mm | 0.750" | 90mm | 2 | RH |
| 564IP.041-2W-C | 40mm | 0.750" | 90mm | 2 | RH |
| 564IP.041-2W-D | 40mm | 0.750" | 90mm | 2 | RH |
