Insert V Groove Router Bit
1 and 2 wing insert router with varying cutting angles. Great for doing folding applications on CNC routers in Solid Wood, MDF and Particle Board. 44.75º tool designed to produce 90º corner with a tight close on outside.
Hw
Fb
Hp
Rp
Machine Types
CNC Router
Industries
Cabinet & Casegoods Manufacturing
Moulding & Millwork
MDF Door Manufacturing

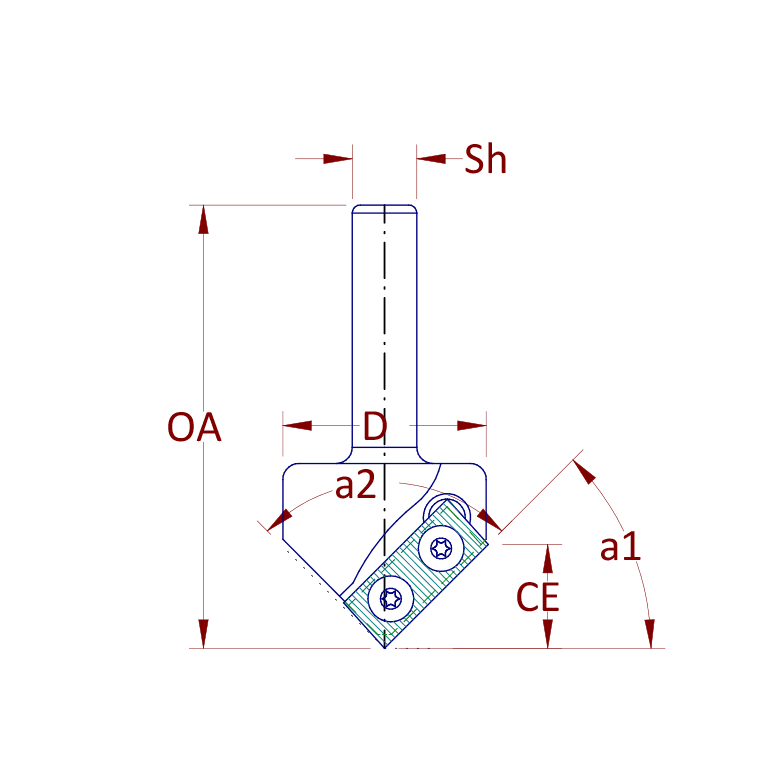

| Part | D | CE | a1 | a2 | Sh | Z | Rotation | OA |
|---|---|---|---|---|---|---|---|---|
| 563-V23.060 | 35mm | 1.675" | 22.50º | 45.00º | 0.500" | 1 | RH | 101mm |
| 563-V30.050 | 52mm | 1.420" | 30.00º | 60.00º | 0.500" | 1 | RH | 97mm |
| 563-V45.030 | 40mm | 0.800" | 45.00º | 90.00º | 0.500" | 1 | RH | 87mm |
| 563-V45.035 | 53mm | 1.045" | 45.00º | 90.00º | 0.750" | 2 | RH | 101mm |
| 563-V45.050 | 75mm | 1.360" | 45.00º | 90.00º | 0.750" | 1 | RH | 101mm |
| 563-V46.030 | 40mm | 0.800" | 45.25º | 90.50º | 0.500" | 1 | RH | 87mm |
| 563-V46.050 | 75mm | 1.350" | 45.25º | 90.50º | 0.750" | 1 | RH | 101mm |
| 563-V60.030 | 50mm | 0.560" | 60.00º | 120.00º | 0.500" | 1 | RH | 71mm |
| 563.V60.030 | 57mm | 0.560" | 60.00º | 120.00º | 0.500" | 1 | RH | |
| 563-V60.050 | 90mm | 0.960" | 60.00º | 120.00º | 0.750" | 1 | RH | 91mm |
| 563-V65.050 | 95mm | 0.810" | 65.00º | 130.00º | 0.750" | 1 | RH | 91mm |
| 563-V75.030 | 62mm | 0.305" | 75.00º | 150.00º | 0.500" | 2 | RH | 75mm |
| 563-V75.050 | 100mm | 0.500" | 75.00º | 150.00º | 0.750" | 2 | RH | 85mm |
