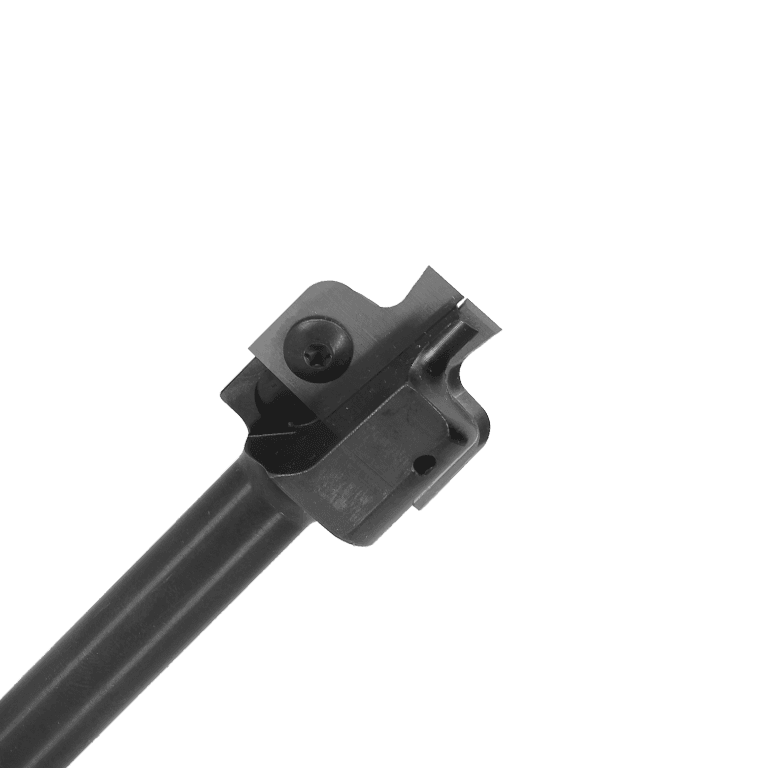

Insert Dovetail Router Bit
Tool is used primarily when manufacturing drawer boxes. Single steel tool body can accept "A" profile. Sold with selected profile installed, replacement profiled inserts available.
Hw
Fb
Hp
Rp
Machine Types
CNC Router
Industries
Cabinet & Casegoods Manufacturing

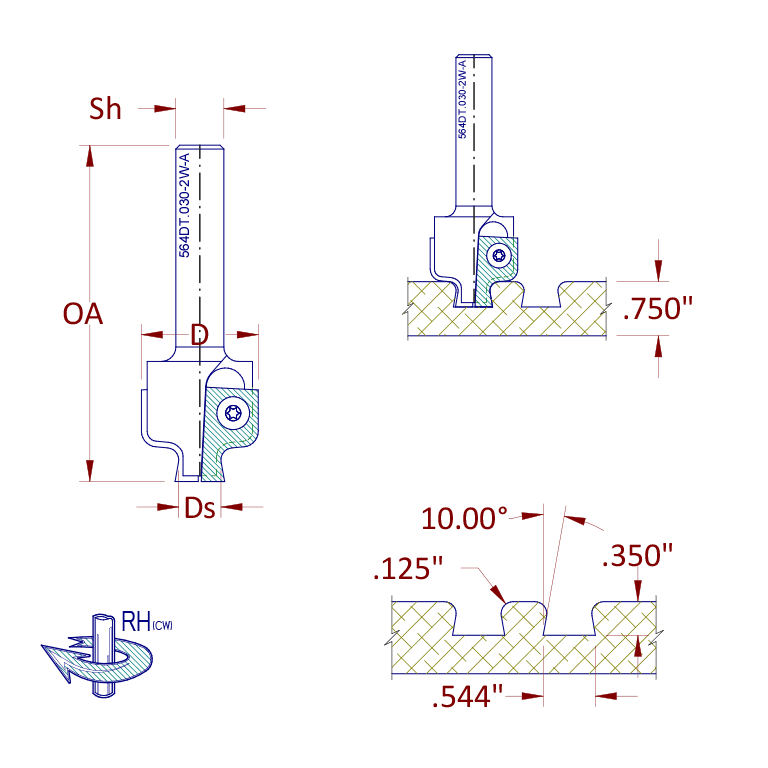

| Part | D | Ds | Sh | Z | Rotation | OA |
|---|---|---|---|---|---|---|
| 564DT.030-2W-A | 30.88mm | 11.18mm | 0.5000" | 2 | RH | 3.500" |
