564SS.038-2W-A

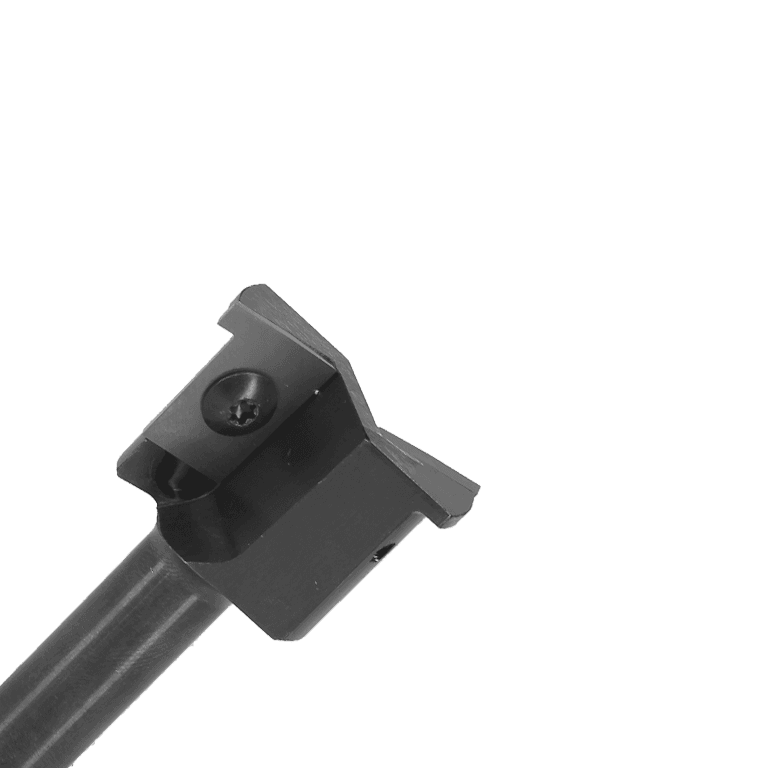

Tool is used primarily when manufacturing slim shaker MDF Cabinet Doors. Single steel tool body can accept "A" profile. Sold with "A" profile installed, replacement profiled inserts available.

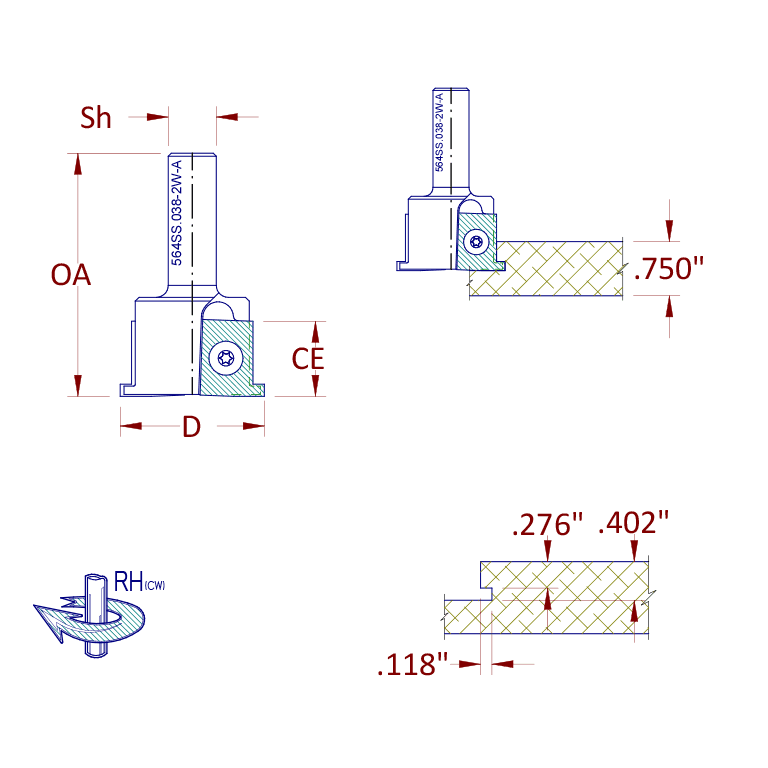

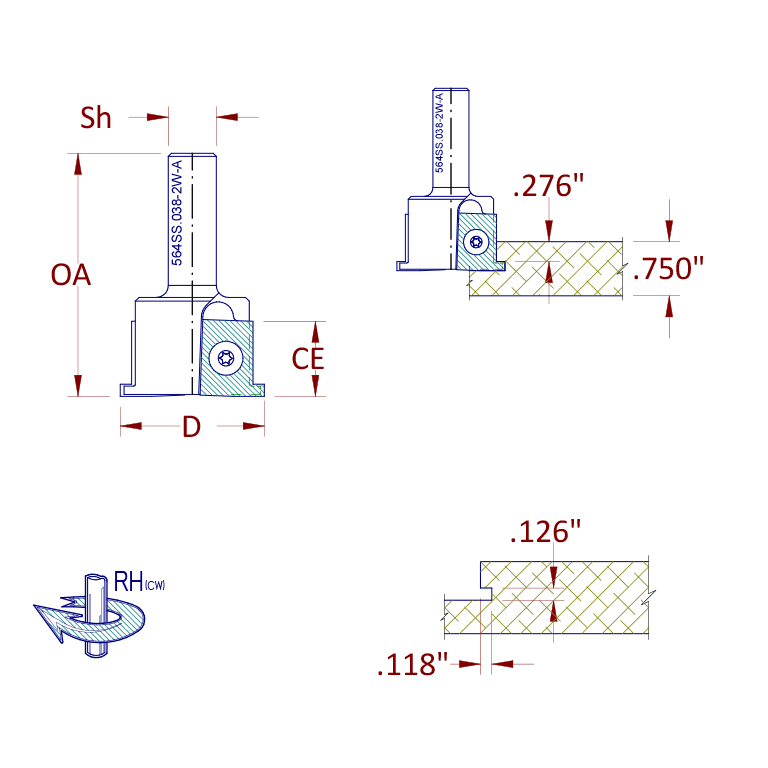

Diameter (D) | 1.500" |
Cutting Edge (CE) | 0.781" |
Shank (Sh) | 0.5000" |
Overall Length (OA) | 2.530" |
Number of Wings/Flutes/Teeth (Z) | 2 |
Material (Material) | HW |
Rotation (Rotation) | RH |
Small Diameter (Ds) | 1.264" |
Replacement Parts
| Part Number | Description | Quantity Per One |
|---|---|---|
| 564SS.038-2W | Replacement Tool Body | 1 |
| 158-564SS.038-2W.A | Replacement Insert Knife | 2 |
