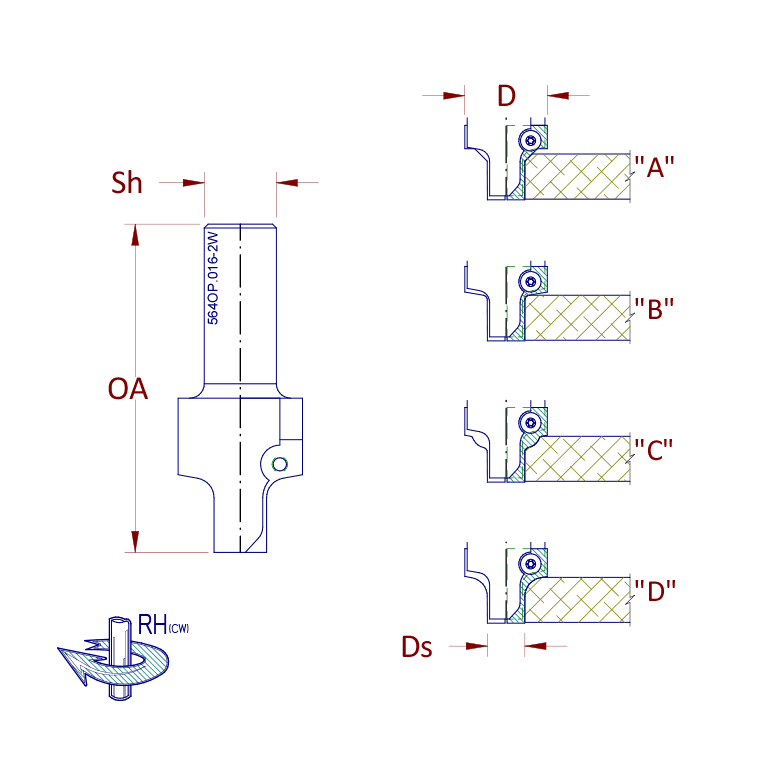

Insert Outside Edge Profile Router Bit
Tool is used primarily when manufacturing MDF door profiles. Single steel tool body can accept "A-D" profiles. Sold with selected profile installed, optional/replacement profiled inserts available.
Material
Hw
Fb
Hp
Rp
Machine Types
CNC Router
Industries
MDF Door Mfg.
| Part | D | Sh | OA | Z | Rotation |
|---|---|---|---|---|---|
| 564OP.016-2W-A | 35mm | 0.750" | 3.500" | 2 | RH |
| 564OP.016-2W-B | 35mm | 0.750" | 3.500" | 2 | RH |
| 564OP.016-2W-C | 35mm | 0.750" | 3.500" | 2 | RH |
| 564OP.016-2W-D | 35mm | 0.750" | 3.500" | 2 | RH |
