564LM.050-023F

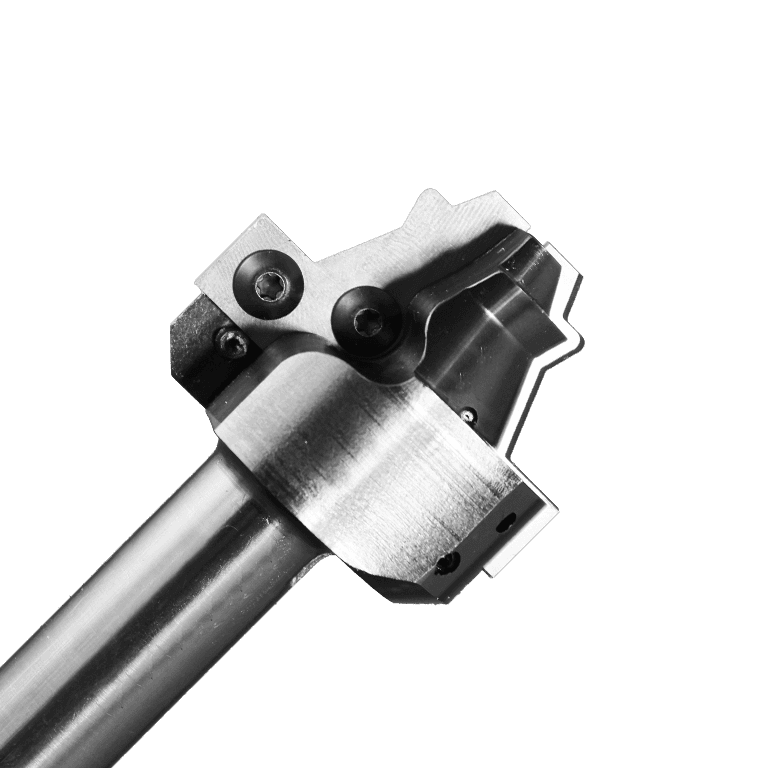

Insert router bit designed for machining lock mitre. Great for range hoods or posts. 2 separate tools create joints that can be assembled together. Locking joint helps align edges and create a stronger joint. 13/16"Lx x 1/2"Lm

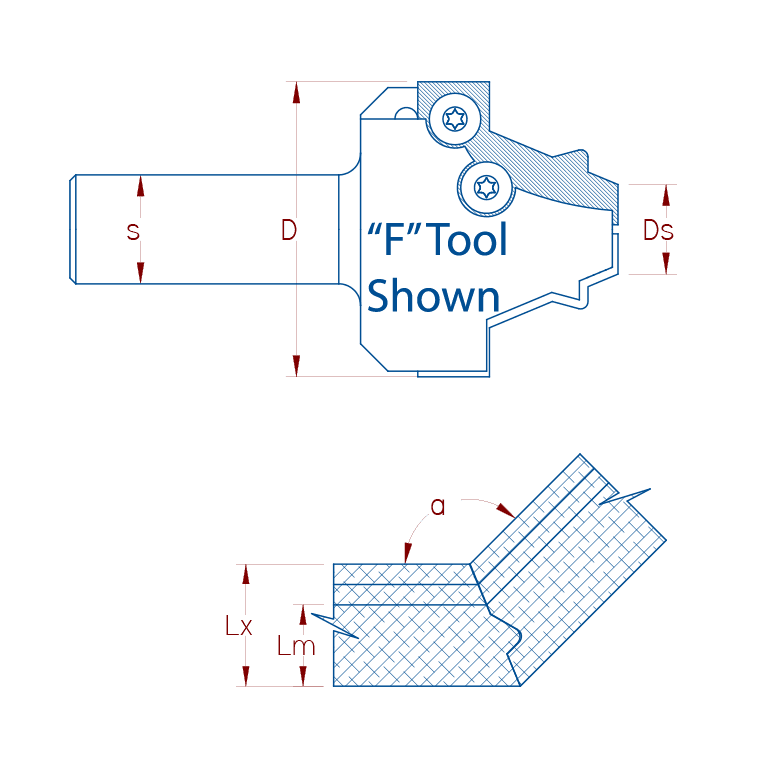

Diameter (D) | 2.000" |
Shank (Sh) | 0.750" |
Overall Length (OA) | 3.750" |
Number of Wings/Flutes/Teeth (Z) | 2 |
Material (Material) | HW |
Angle Variable 1 (a1) | 135° |
Rotation (Rotation) | RH |
Small Diameter (Ds) | 0.617" |
Replacement Parts
| Part Number | Description | Quantity Per One |
|---|---|---|
| 158-564LM.050-023F | Replacement Insert Knife | 2 |
| 580.RH-M3505.9 | Replacement Knife Screw | 2 |
