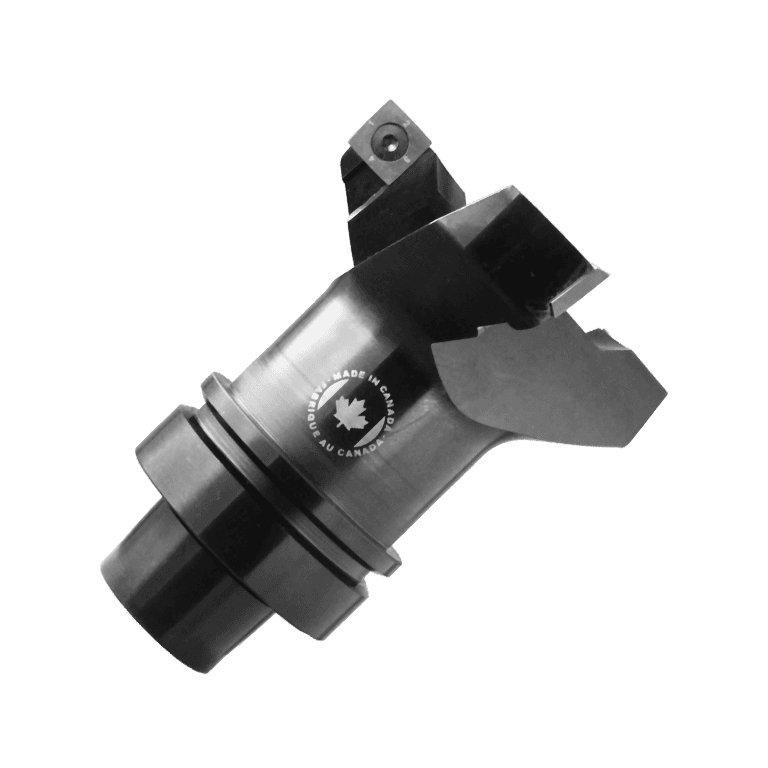

563SI.100.14-63F3
Insert router bit designed for surfacing and pocketing applications. “Integrated” tool design eliminates any run out and deflection generated by collet interface. Extremely rigid tool has radius inserts for improved bottom finish.

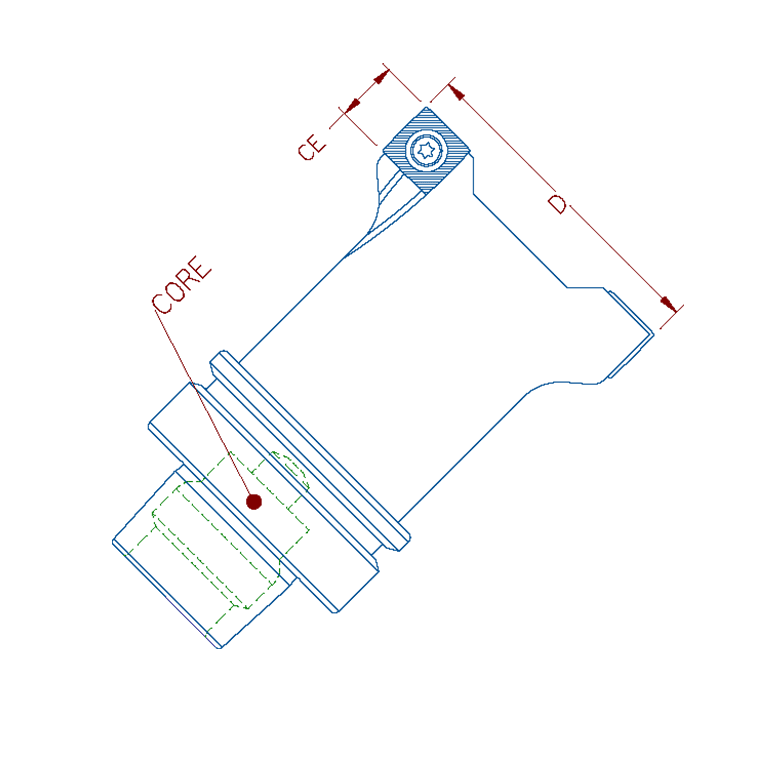

Diameter (D) | 4" |
Cutting Edge (CE) | 0.590" |
Overall Length (OA) | 100mm |
Number of Wings/Flutes/Teeth (Z) | 3 |
Material (Material) | HW |
Rotation (Rotation) | RH |
Core (Core) | HSK63F |
Weight (Wt) | 4.5lbs |
Replacement Parts
| Part Number | Description | Quantity Per One |
|---|---|---|
| 592-0007 | Insert Knives | 3 |
| 580.CST-M4067.TX | Screws | 3 |
