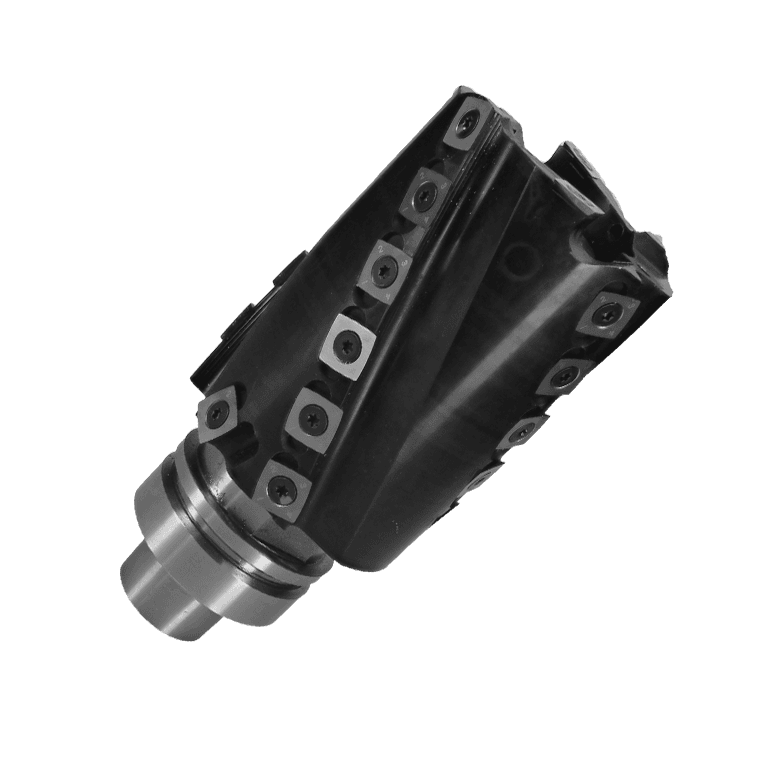

Integrated Insert 533H Lightweight Hogging Tool
Best suited for hogging solid wood on CNC routers. Inserts can be rotated 4 times when dull. Tool has spurs to allow rebating. Reduce cycle times by utilizing the high removal rates. Aluminum body for lightweight design.
Hw
Sw
Fb
Hp

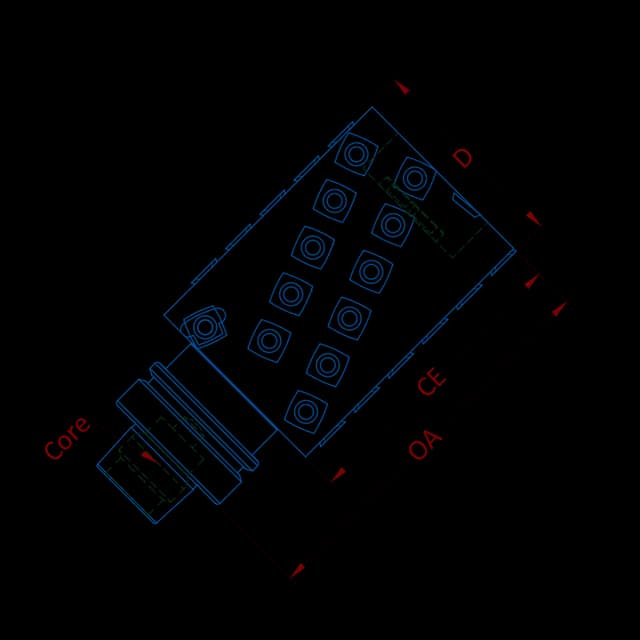

| Part | D | CE | OA | Rotation | Z | Core | Wt |
|---|---|---|---|---|---|---|---|
| 533H.040.190.63E | 40mm | 191mm | 240mm | RH | 2 | HSK63E | 4.5lbs |
| 533H.040.190.63F | 40mm | 191mm | 240mm | RH | 2 | HSK63F | 4.5lbs |
| 533H.090.120.63F2 | 90mm | 129mm | 170mm | RH | 2 | HSK63F | 7.2lbs |
| 533H.090.200.63F2 | 90mm | 200mm | 239mm | RH | 2 | HSK63F | 9.5lbs |
