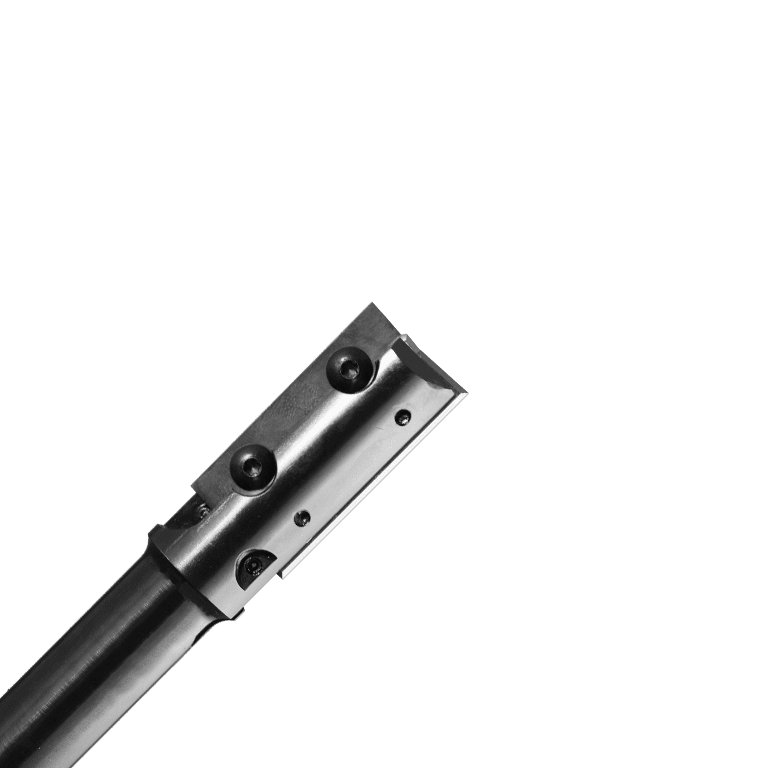

Insert Double Flute Router Bit
Double flute insert router bit. Knives can be rotated once for a new cutting edge. Good general purpose tool. Tool does not have to be measured after knife changes.
Hw
Fb
Hp
Sp
Sw
Pb
Machine Types
CNC Router
Industries
Moulding & Millwork
Cabinet & Casegoods Manufacturing

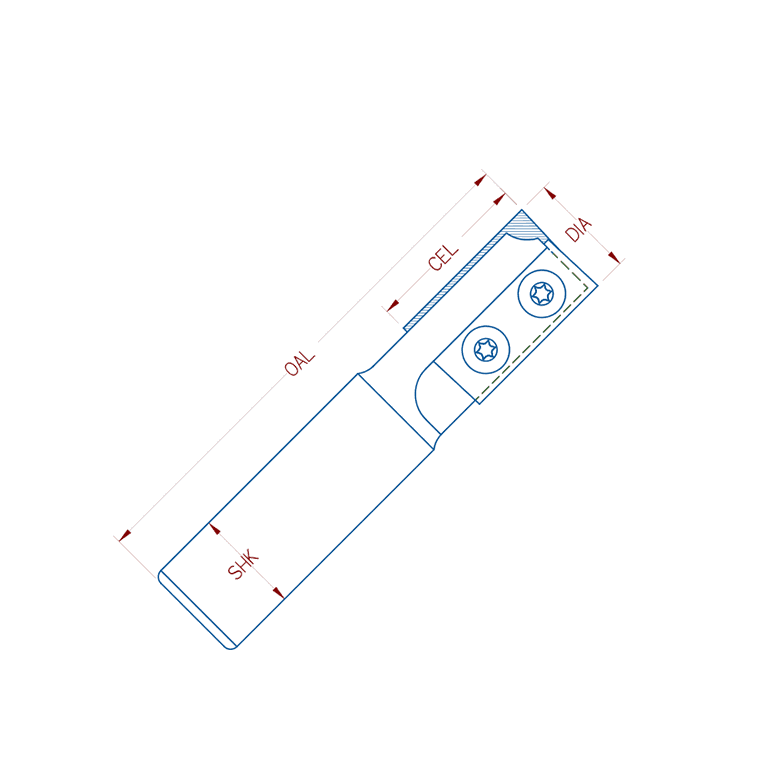

| Part | D | CE | Sh | OA | Z | Rotation |
|---|---|---|---|---|---|---|
| 568.019.060 | 0.750" | 60mm | 0.750" | 4.750" | 2 | RH |
| 568.16.030 | 0.625" | 30mm | 0.625" | 3.500" | 2 | RH |
| 568.19.030 | 0.750" | 30mm | 0.750" | 3.625" | 2 | RH |
| 568.19.030L | 0.750" | 30mm | 0.750" | 3.625" | 2 | LH |
| 568.19.040 | 0.750" | 40mm | 0.750" | 4.000" | 2 | RH |
| 568.19.050 | 0.750" | 50mm | 0.750" | 4.375" | 2 | RH |
| 568.19.050-LH | 0.750" | 50mm | 0.750" | 4.375" | 2 | LH |
| 568.25.030 | 1.000" | 30mm | 0.750" | 3.500" | 2 | RH |
| 568.25.050 | 1.000" | 50mm | 0.750" | 4.375" | 2 | RH |
| 568.25.050-LH | 1.000" | 50mm | 0.750" | 4.375" | 2 | LH |
