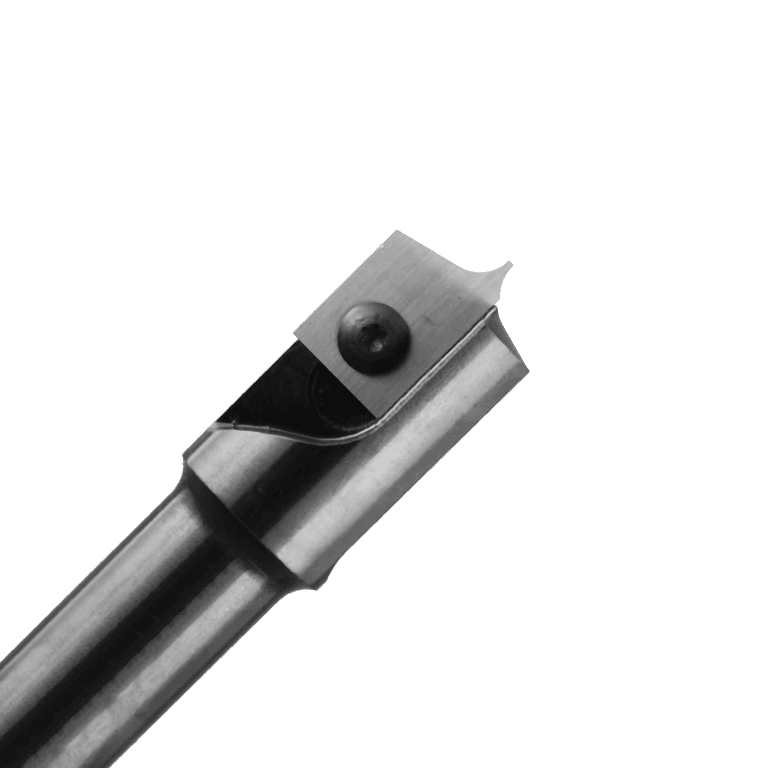

Insert Radius Profile Router Bit

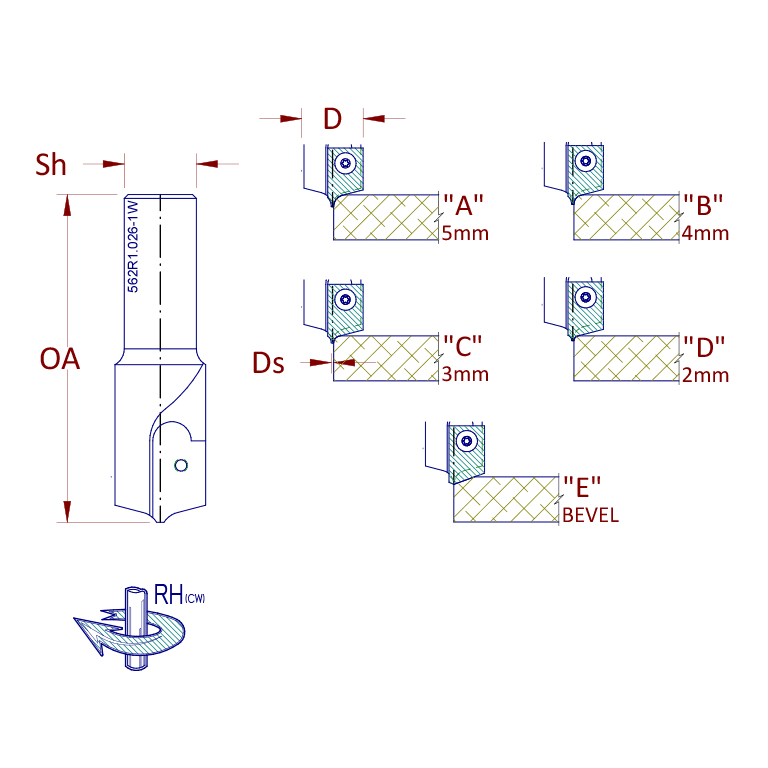

Tool is used primarily when manufacturing MDF door profiles. Single steel tool body can accept "A-E" profiles. Sold with selected profile installed, optional/replacement profiled inserts available.
Hw
Fb
Hp
Rp
Machine Types
CNC Router
Industries
MDF Door Manufacturing

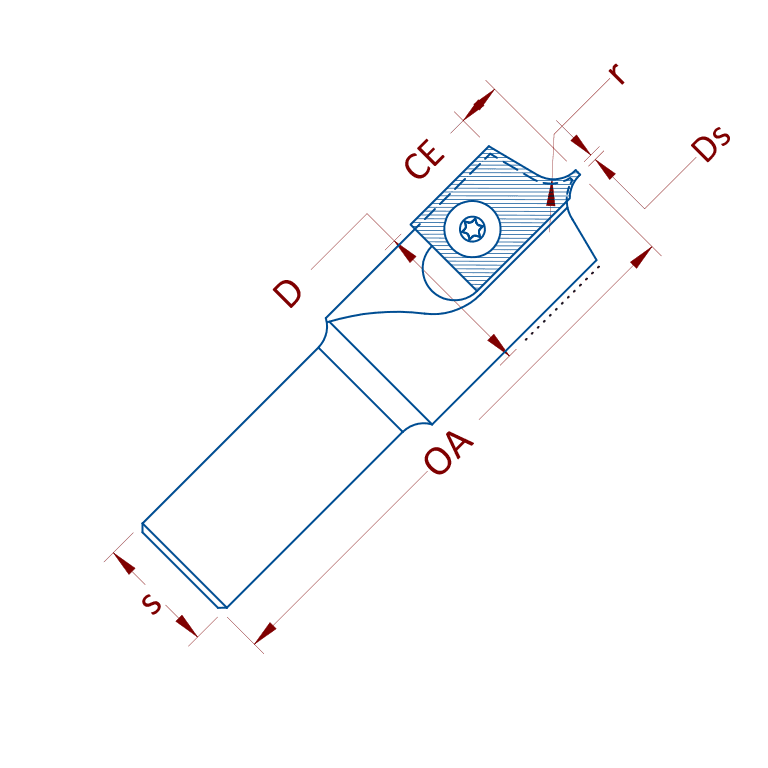

| Part | D | Ds | r | Sh | Z | Rotation | OA |
|---|---|---|---|---|---|---|---|
| 562R1.026-1W-A | 26mm | 1mm | 5mm | 0.750" | 1 | RH | 2.750" |
| 562R1.026-1W-B | 26mm | 1mm | 4mm | 0.750" | 1 | RH | 2.750" |
| 562R1.026-1W-C | 26mm | 1mm | 3mm | 0.750" | 1 | RH | 2.750" |
| 562R1.026-1W-D | 26mm | 1mm | 2mm | 0.750" | 1 | RH | 2.750" |
| 562R1.026-1W-E | 26mm | 1mm | 20° | 0.750" | 1 | RH | 2.750" |
