564IP.041-2W-A

Includes 564IP.041-2W tool body with profiled insert "A" installed. Tool is used primarily when manufacturing MDF door profiles. Optional/replacement profiled inserts shown below.

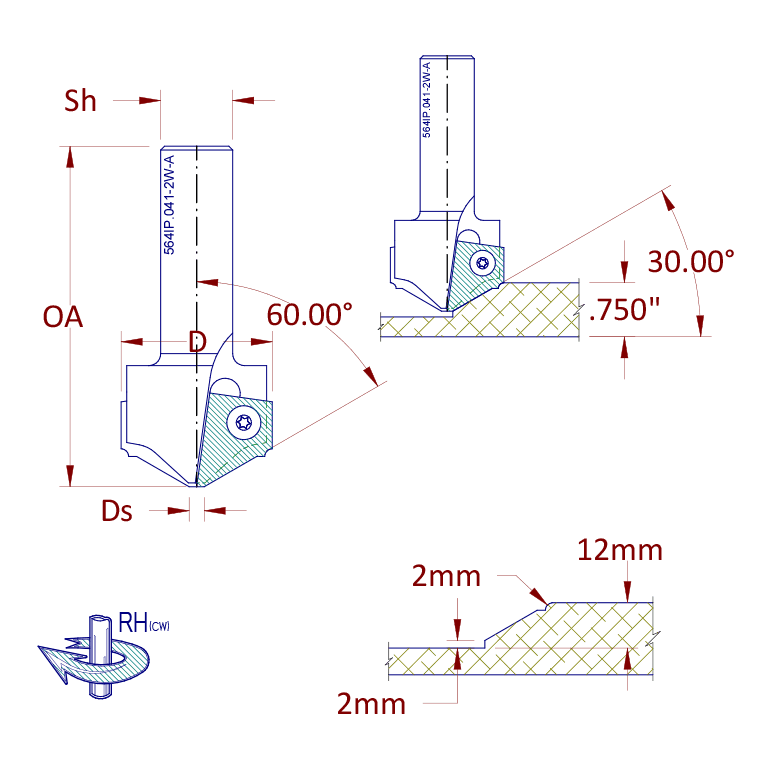

564IP.041-2W-A 1
564IP.041-2W-A 2
Diameter (D)
40mm
Shank (Sh)
0.750"
Overall Length (OA)
90mm
Number of Wings/Flutes/Teeth (Z)
2
Material (Material)
HW
Rotation (Rotation)
RH
See Full Series

Replacement Parts

Part NumberDescriptionQuantity Per One
564IP.041-2WReplacement Tool Body1
158-564IP.041-2W-AReplacement Insert Knife2
158-564IP.041-2W-BOptional Profiled Insert Knife2
158-564IP.041-2W-COptional Profiled Insert Knife2
158-564IP.041-2W-DOptional Profiled Insert Knife2
580.RH-M3505.9Replacement Knife Screw2
