564LM.060-045F

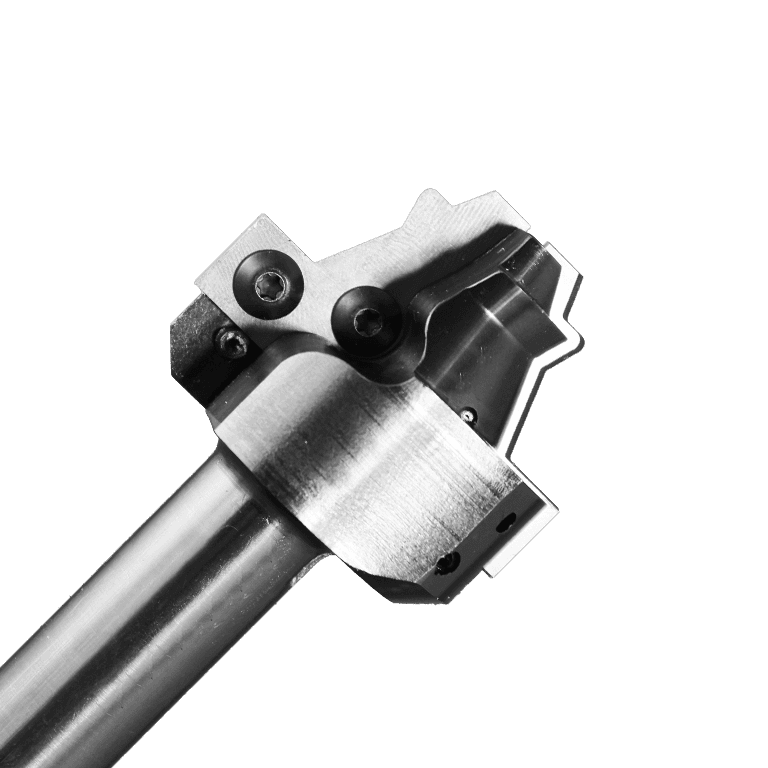

Insert router bit designed for machining lock mitre. Great for range hoods or posts. 2 separate tools create joints that can be assembled together. Locking joint helps align edges and create a stronger joint. 13/16"Lx x 1/2"Lm

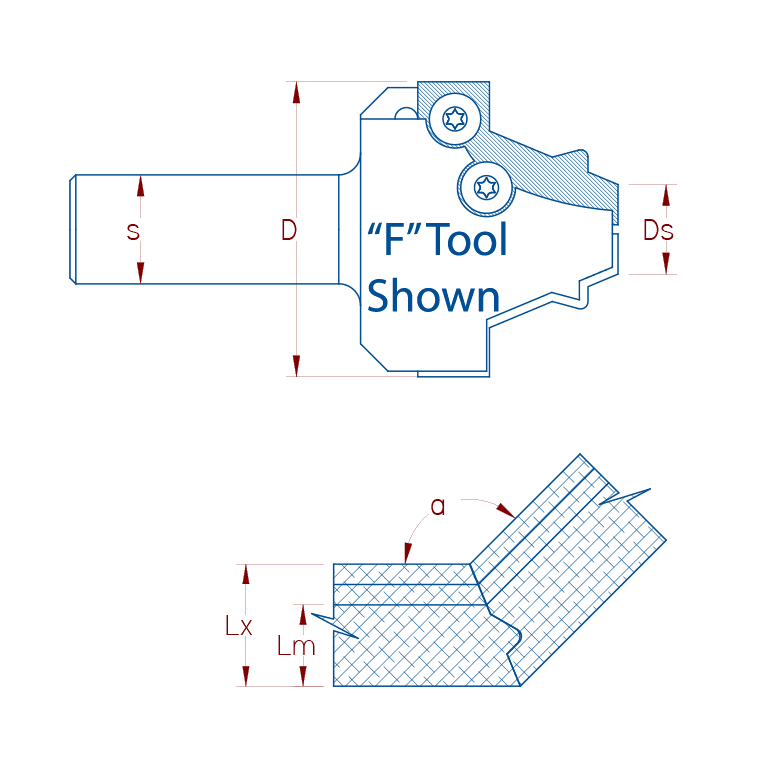

Diameter
2.400”
Shank
0.750"
Overall Length
3.750"
Small Diameter
0.500"
Angle Variable 1
90°
Rotation
RH
Number of Wings
2
Material
HW

Replacement Parts

Part NumberDescriptionQuantity Per One
158-564LM.060-045FReplacement Insert Knife2
580.RH-M3505.9Replacement Knife Screw2
