533FI.070.100-63F2.L

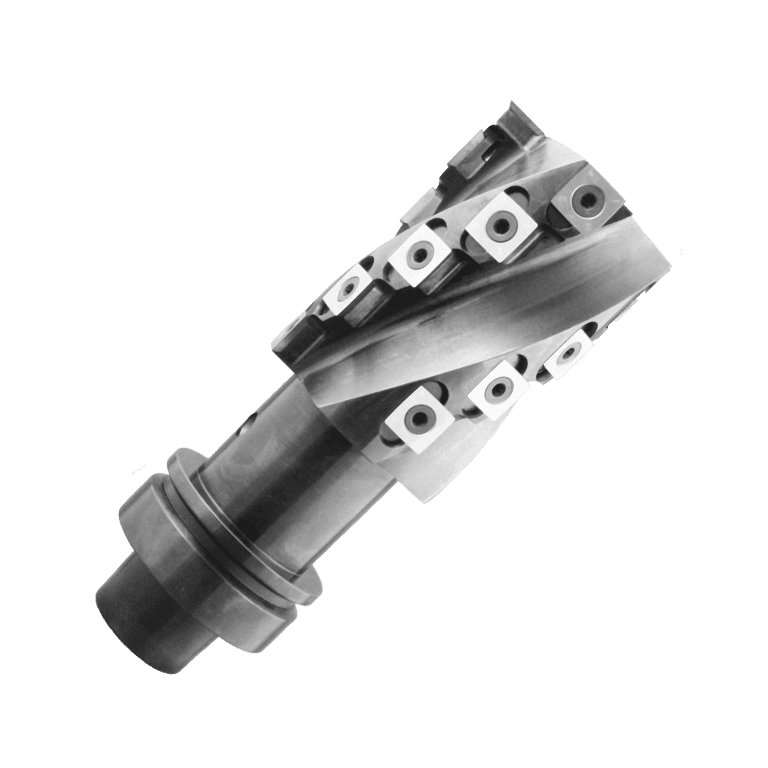

Best suited for hogging solid wood on CNC routers. Inserts can be rotated 4 times when dull. Tool has spurs to allow rebating. Reduce cycle times by utilizing the high removal rates. Integrated tool design for maximum tool strength and reduced run out. Lighter design than the 510HI tool above. Spiralex design allows smaller diameter.

533FI.070.100-63F2.L 1
533FI.070.100-63F2.L 2

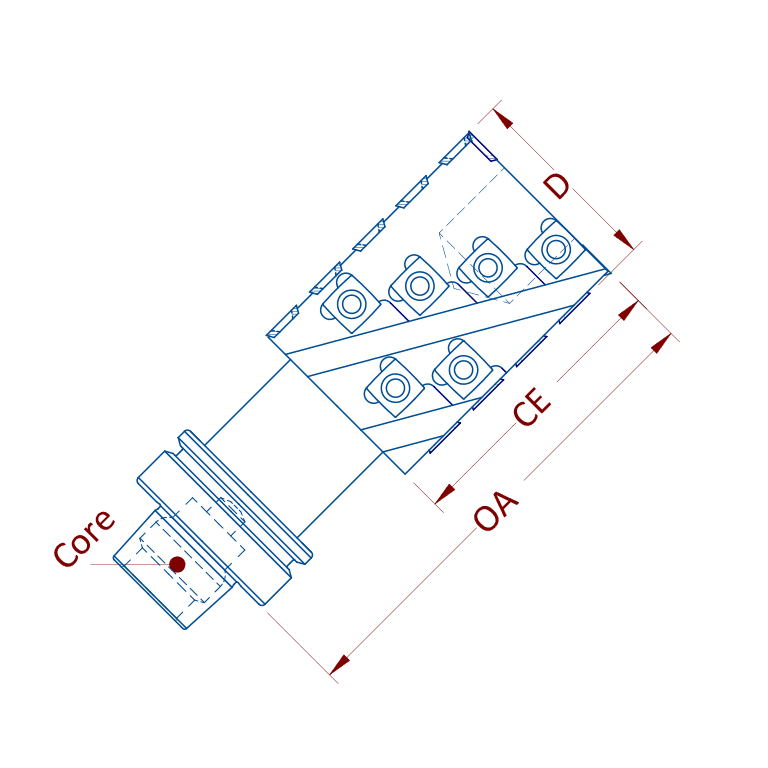

Diameter (D)
70mm
Cutting Edge (CE)
100mm
Overall Length (OA)
170mm
Number of Wings/Flutes/Teeth (Z)
2
Material (Material)
HW
Rotation (Rotation)
LH
Core (Core)
HSK63F
Weight (Wt)
8.2lbs
