564IP.041-2W-B

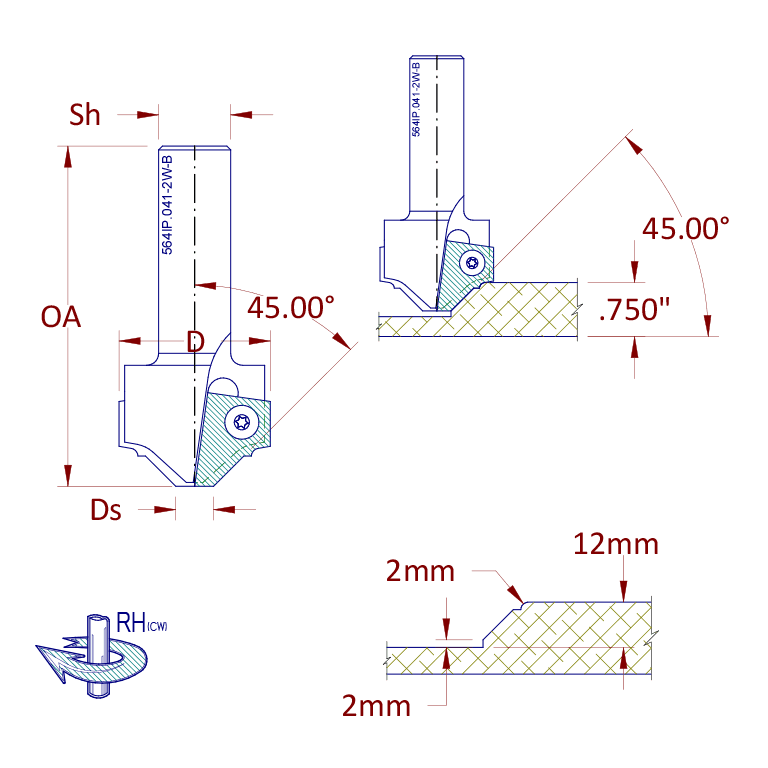

Includes 564IP.041-2W tool body with profiled insert "B" installed. Tool is used primarily when manufacturing MDF door profiles. Optional/replacement profiled inserts shown below.

Diameter
40mm
Shank
0.750"
Overall Length
90mm
Rotation
RH
Number of Wings
2
Material
HW

Replacement Parts

Part NumberDescriptionQuantity Per One
564IP.041-2WReplacement Tool Body1
158-564IP.041-2W-AOptional Profiled Insert Knife2
158-564IP.041-2W-BReplacement Insert Knife2
158-564IP.041-2W-COptional Profiled Insert Knife2
158-564IP.041-2W-DOptional Profiled Insert Knife2
580.RH-M3505.9Replacement Knife Screw2
