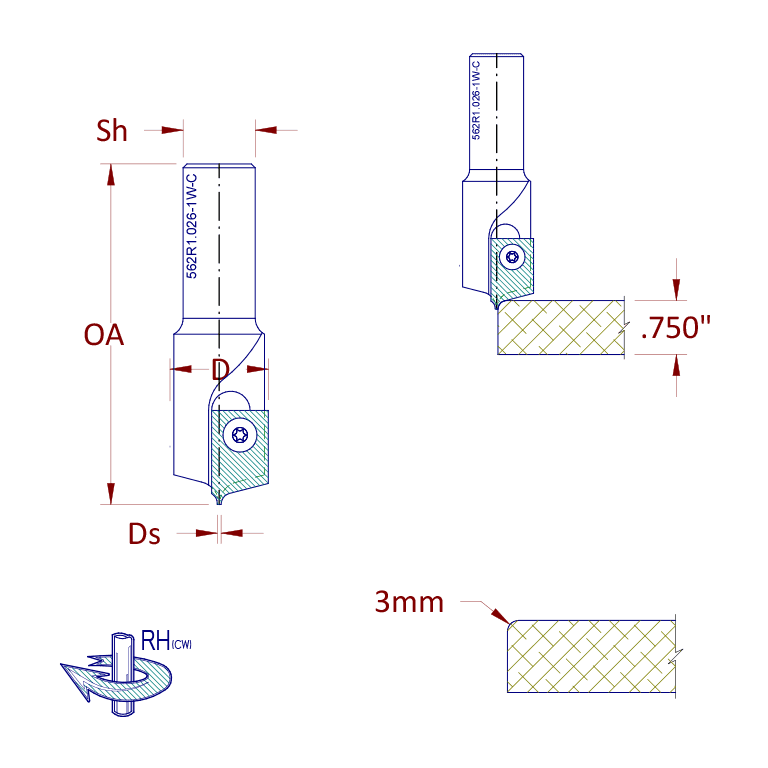

562R1.026-1W-C
Includes 562R1.026-1W tool body with profiled insert "C" installed. Tool is used primarily when manufacturing MDF door profiles. Optional/replacement profiled inserts shown below.

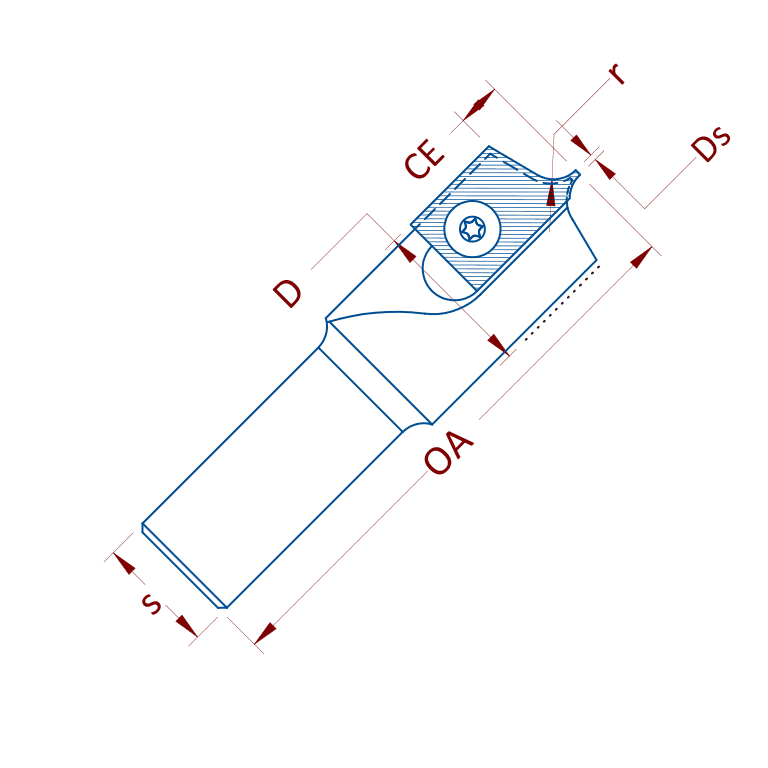

Diameter | 26mm |
Cutting Edge | 7mm |
Shank | 0.750" |
Overall Length | 2.750" |
Small Diameter | 1mm |
Radius Variable | 3mm |
Rotation | RH |
Number of Wings | 1 |
Material | HW |
Replacement Parts
| Part Number | Description | Quantity Per One |
|---|---|---|
| 562R1.026-1W | Replacement Tool Body | 1 |
| 158-562R1.026-1W-A | Optional Profiled Insert Knife | 1 |
| 158-562R1.026-1W-B | Optional Profiled Insert Knife | 1 |

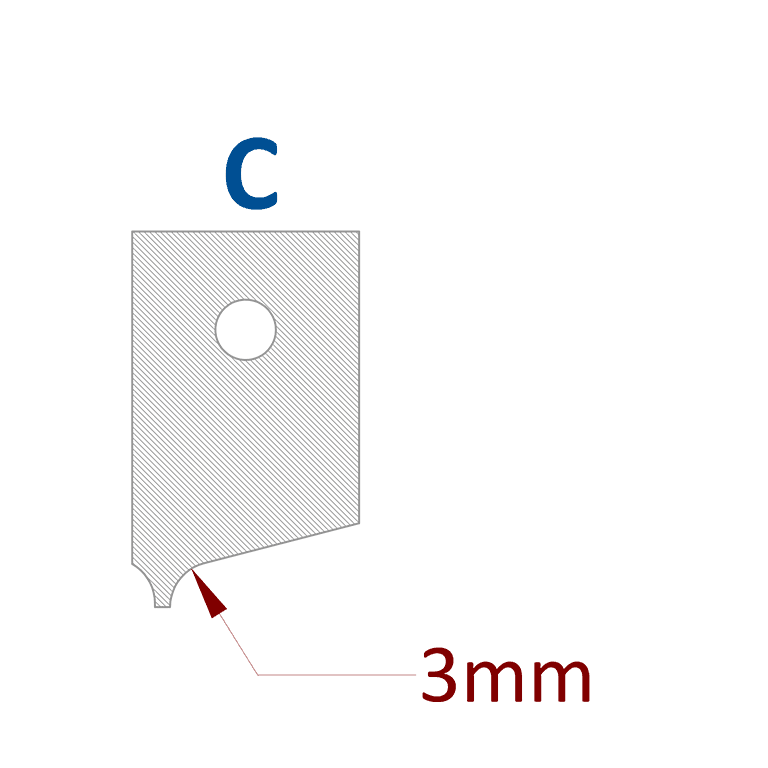

| 158-562R1.026-1W-C | Replacement Insert Knife | 1 |
| 158-562R1.026-1W-D | Optional Profiled Insert Knife | 1 |
| 158-562R1.026-1W-E | Optional Profiled Insert Knife | 1 |
| 580.RH-M3505.9 | Replacement Knife Screw | 1 |
