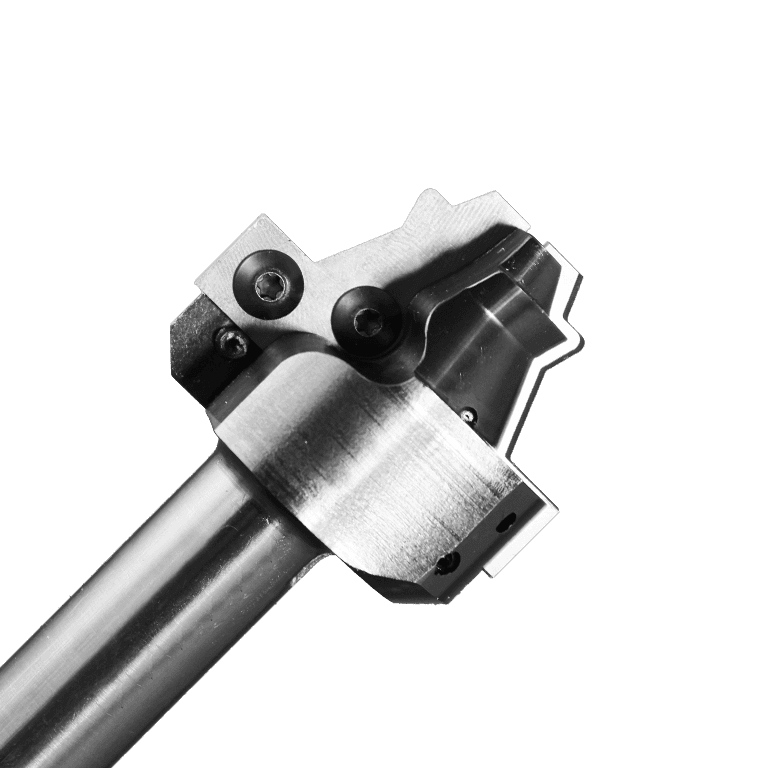

Insert Lock Mitre Router Bit
Insert router bit designed for machining lock mitre. Great for range hoods or posts. 2 separate tools create joints that can be assembled together. Locking joint helps align edges and create a stronger joint. 13/16"Lx x 1/2"Lm
Hw
Fb
Hp
Rp
Machine Types
CNC Router
Industries
Cabinet & Casegoods Manufacturing
Moulding & Millwork

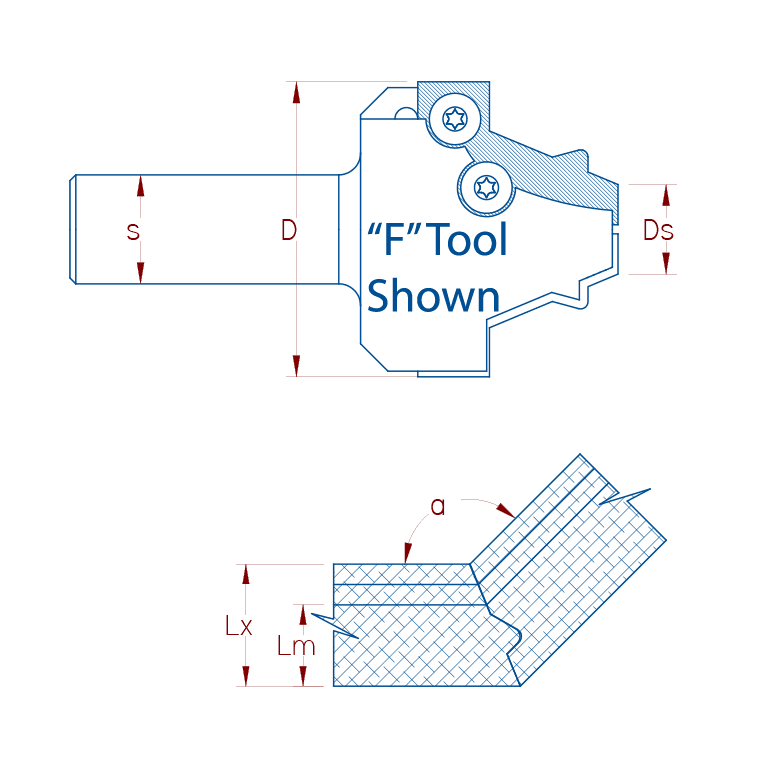

| Part | D | Ds | a1 | Sh | Z | Rotation | OA |
|---|---|---|---|---|---|---|---|
| 564LM.050-023F | 2.000" | 0.617" | 135° | 0.750" | 2 | RH | 3.750" |
| 564LM.050-023M | 2.000" | 0.617" | 135° | 0.750" | 2 | RH | 3.750" |
| 564LM.060-045F | 2.400" | 0.500" | 90° | 0.750" | 2 | RH | 3.750" |
| 564LM.060-045M | 2.400" | 0.500" | 90° | 0.750" | 2 | RH | 3.750" |
