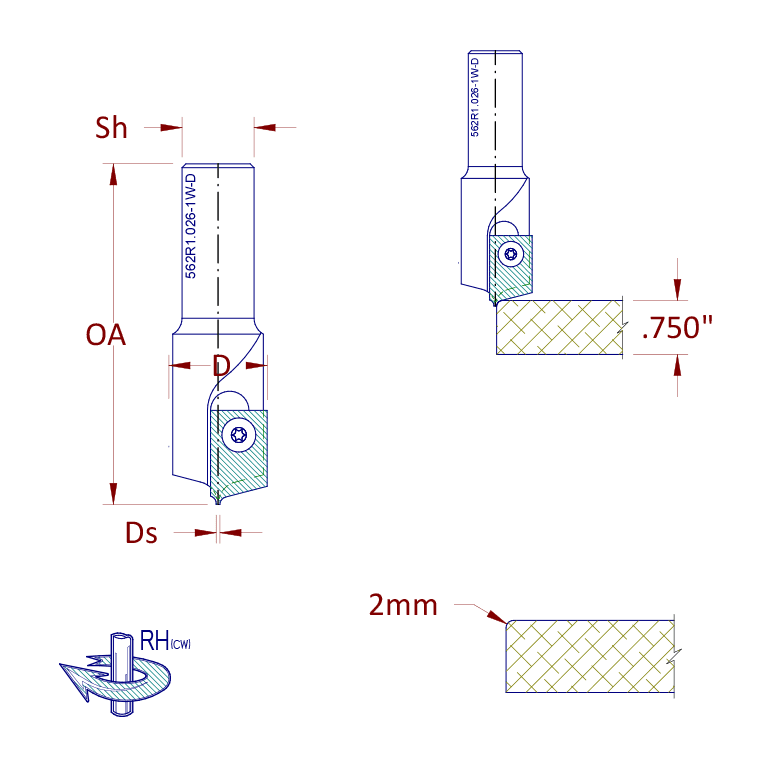

562R1.026-1W-D
Includes 562R1.026-1W tool body with profiled insert "D" installed. Tool is used primarily when manufacturing MDF door profiles. Optional/replacement profiled inserts shown below.

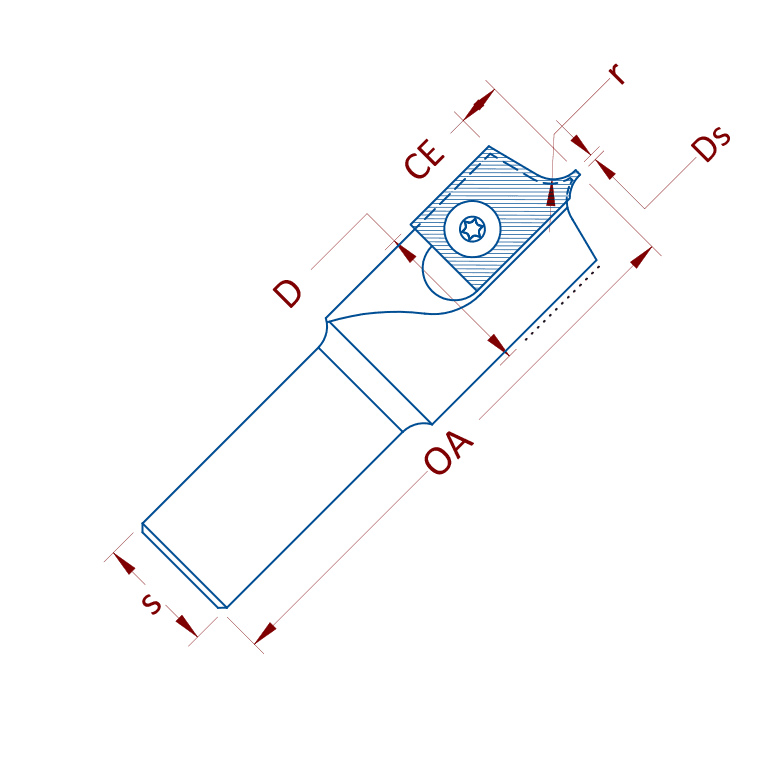

Diameter (D) | 26mm |
Cutting Edge (CE) | 7mm |
Shank (Sh) | 0.750" |
Overall Length (OA) | 2.750" |
Number of Wings/Flutes/Teeth (Z) | 1 |
Material (Material) | HW |
Rotation (Rotation) | RH |
Radius Variable (r) | 2mm |
Small Diameter (Ds) | 1mm |
Replacement Parts
| Part Number | Description | Quantity Per One |
|---|---|---|
| 562R1.026-1W | Replacement Tool Body | 1 |
| 158-562R1.026-1W-A | Optional Profiled Insert Knife | 1 |
| 158-562R1.026-1W-B | Optional Profiled Insert Knife | 1 |
| 158-562R1.026-1W-C | Optional Profiled Insert Knife | 1 |

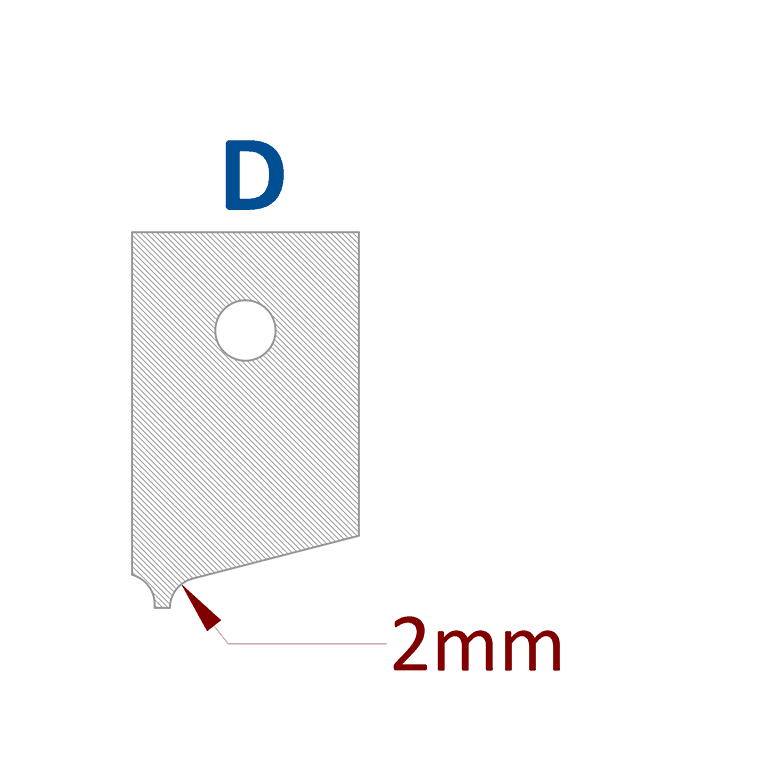

| 158-562R1.026-1W-D | Replacement Insert Knife | 1 |
| 158-562R1.026-1W-E | Optional Profiled Insert Knife | 1 |
| 580.RH-M3505.9 | Replacement Knife Screw | 1 |
