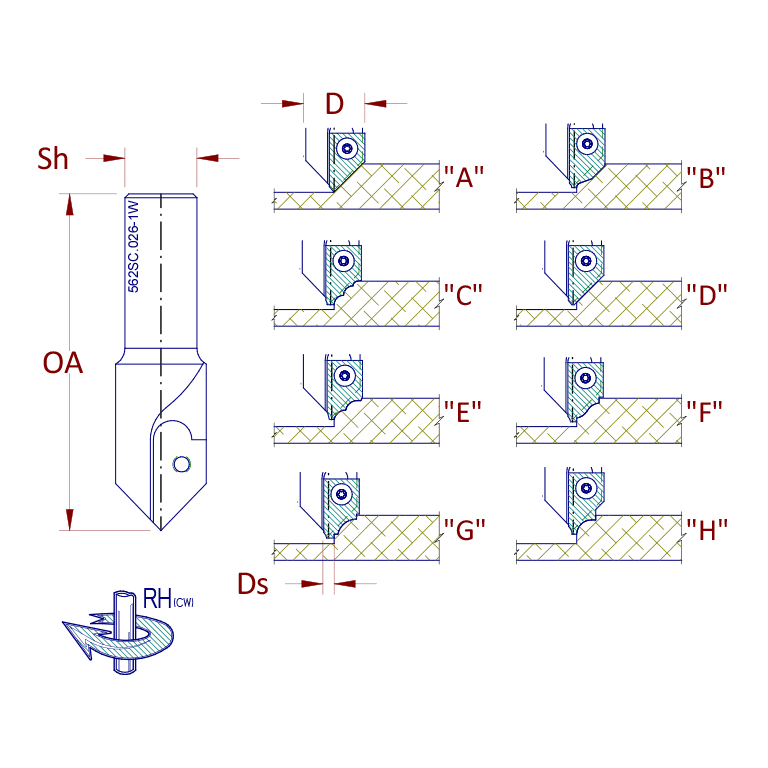

Insert Corner Clean Out Profile Router Bit
Tool is used primarily when manufacturing MDF door profiles. Single steel tool body can accept "A-H" profiles. Sold with selected profile installed, optional/replacement profiled inserts available.
Material
Hw
Fb
Hp
Rp
Machine Types
CNC Router
Industries
MDF Door Mfg.
| Part | D | Sh | OA | Z | Rotation |
|---|---|---|---|---|---|
| 562SC.026-1W-A | 26mm | 0.750" | 90mm | 1 | RH |
| 562SC.026-1W-B | 26mm | 0.750" | 90mm | 1 | RH |
| 562SC.026-1W-C | 26mm | 0.750" | 90mm | 1 | RH |
| 562SC.026-1W-D | 26mm | 0.750" | 90mm | 1 | RH |
| 562SC.026-1W-E | 26mm | 0.750" | 90mm | 1 | RH |
| 562SC.026-1W-F | 26mm | 0.750" | 90mm | 1 | RH |
| 562SC.026-1W-G | 26mm | 0.750" | 90mm | 1 | RH |
| 562SC.026-1W-H | 26mm | 0.750" | 90mm | 1 | RH |
