566-016.030

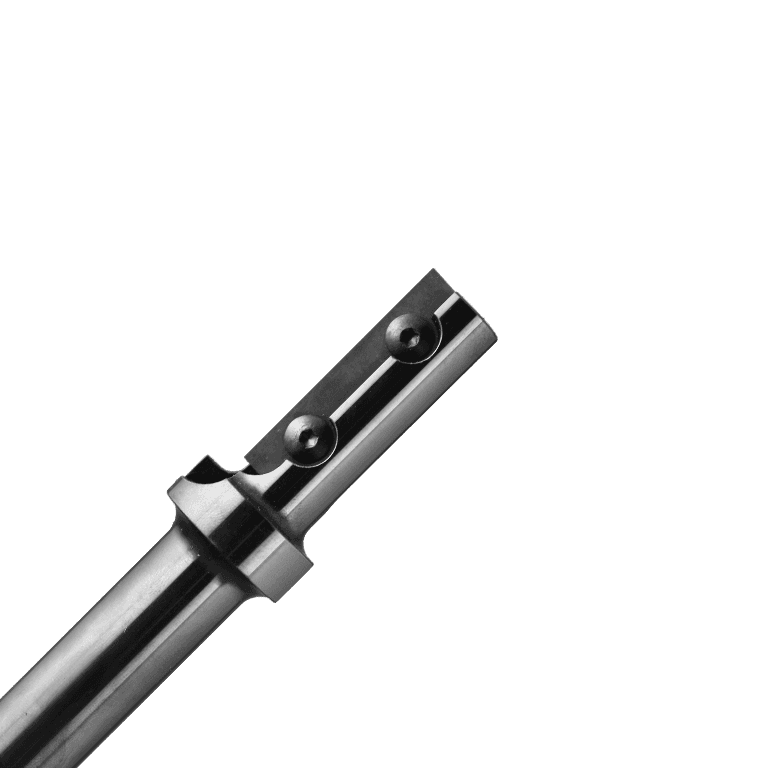

Single flute insert router bit. Knives can be rotated once for a new cutting edge. Good general purpose tool. Tool does not have to be measured after knife changes.

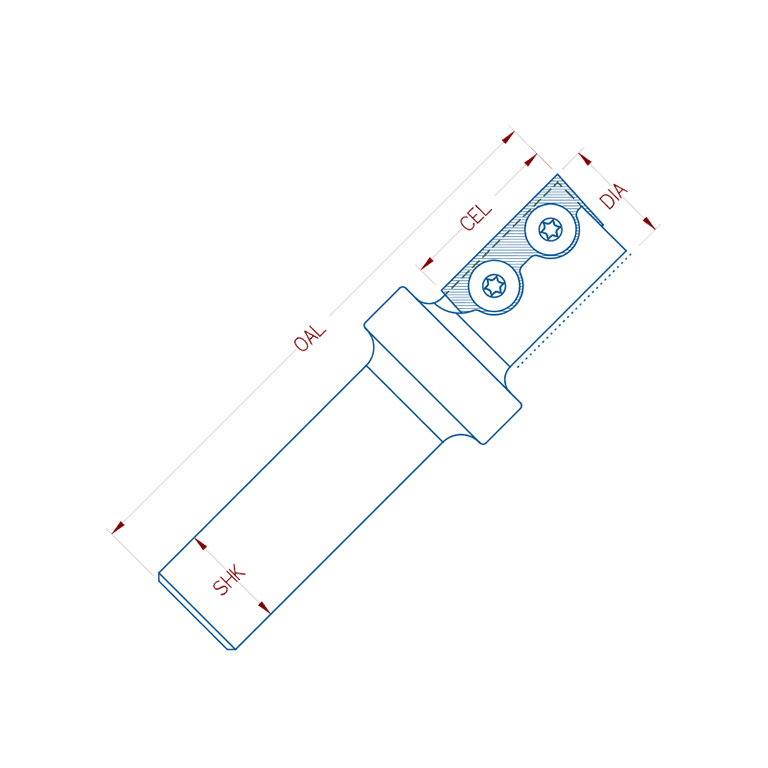

Diameter (D) | 16mm |
Cutting Edge (CE) | 30mm |
Shank (Sh) | 0.500" |
Overall Length (OA) | 3.375" |
Number of Wings/Flutes/Teeth (Z) | 1 |
Material (Material) | HW |
Rotation (Rotation) | RH |
Replacement Parts
| Part Number | Description | Quantity Per One |
|---|---|---|
| 595-3090R (96510R) | Replacement Insert Knife | 1 |
| 580.RH-M3505.9 | Replacement Knife Screw | 2 |
