569.25.050

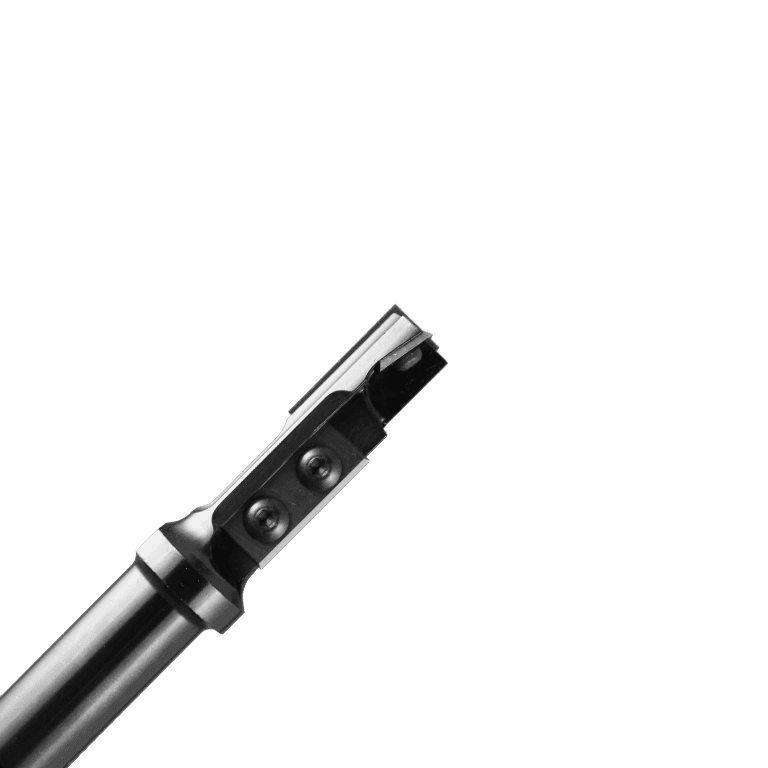

Single flute insert router bit. Knives can be rotated once for a new cutting edge. Good general purpose tool, tool does not have to be measured after knife change. Tool has plunge point to allow straight plunging.

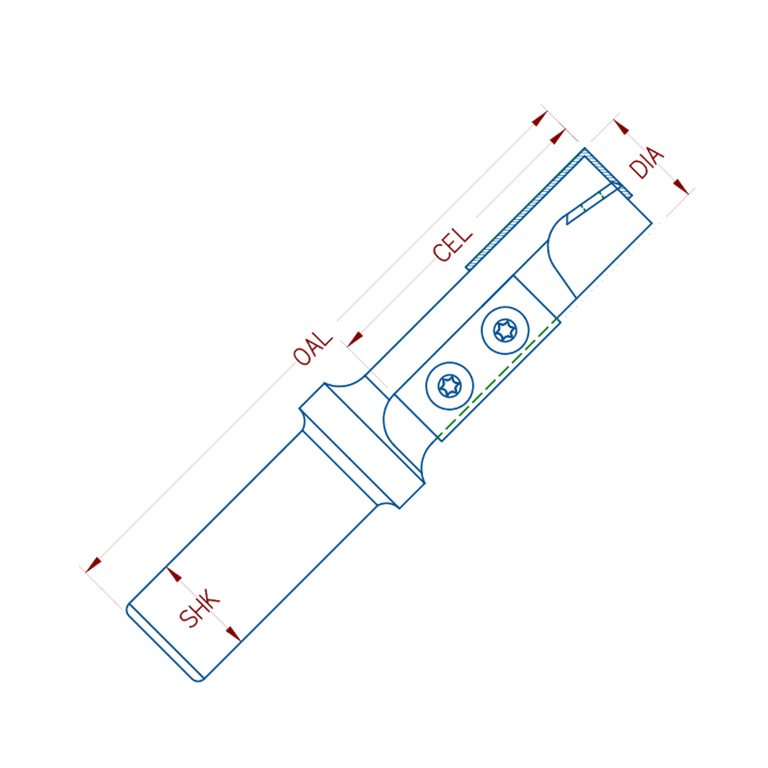

Diameter (D) | 1.000" |
Cutting Edge (CE) | 55mm |
Shank (Sh) | 0.750" |
Overall Length (OA) | 4.750" |
Number of Wings/Flutes/Teeth (Z) | 1+1 |
Material (Material) | HW |
Rotation (Rotation) | RH |
Replacement Parts
| Part Number | Description | Quantity Per One |
|---|---|---|
| 591-3012 * | Replacement Insert Knife | 2 |
| 590-0075 * | Replacement Insert Knife | 1 |
| 580.RH-M3504.6 | Replacement Knife Screw | 3 |
