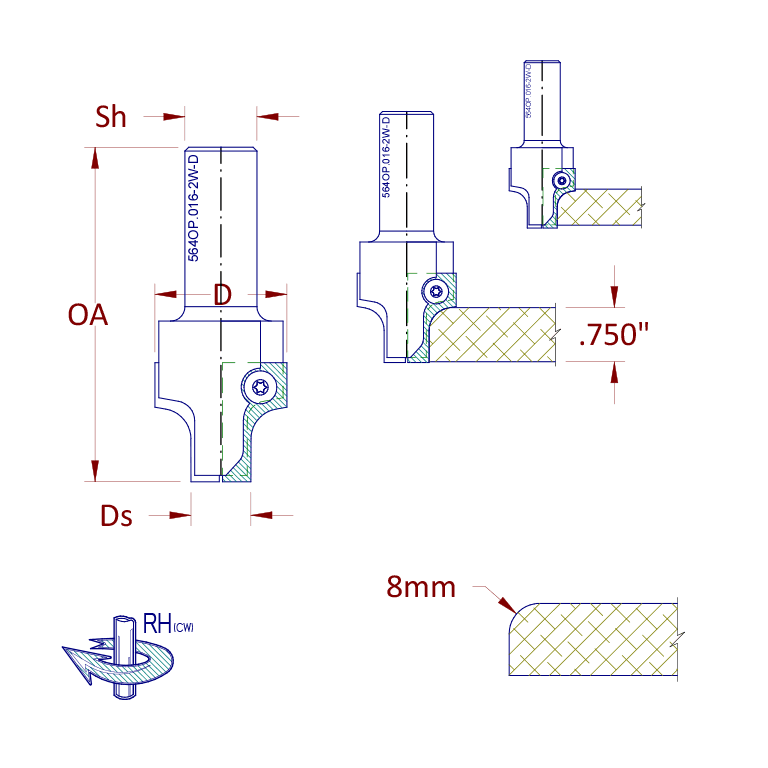

564OP.016-2W-D

Includes 564OP.016-2W tool body with profiled insert "D" installed. Tool is used primarily when manufacturing MDF door profiles. Optional/replacement profiled inserts shown below.

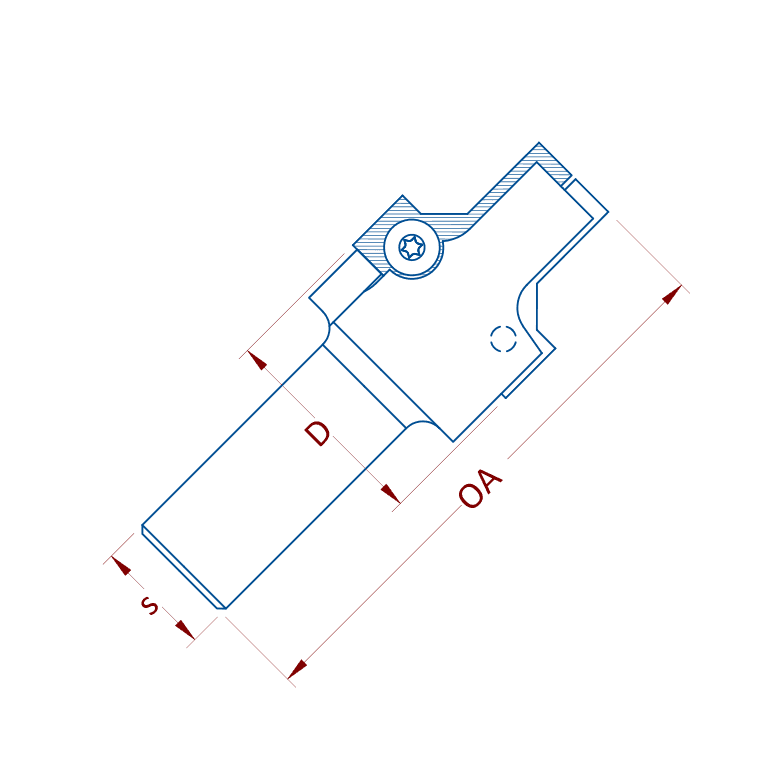

Diameter
35mm
Shank
0.750"
Overall Length
3.500"
Rotation
RH
Number of Wings
2
Material
HW

Replacement Parts

Part NumberDescriptionQuantity Per One
564OP.016-2WReplacement Tool Body1
158-564OP.016-2W-AOptional Profiled Insert Knife2
158-564OP.016-2W-BOptional Profiled Insert Knife2
158-564OP.016-2W-COptional Profiled Insert Knife2
158-564OP.016-2W-DReplacement Insert Knife2
580.RH-M3505.9Replacement Knife Screw2
