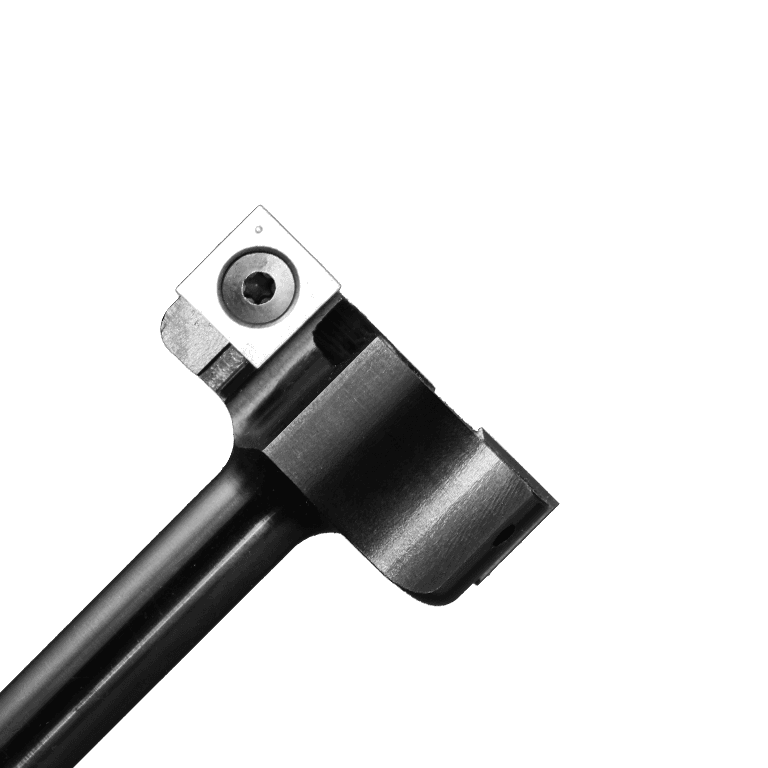

Insert Spoil Board Surfacing Router Bit
Insert surfacing router bits ideal for surfacing table boards and spoil boards on CNC nested based routers. Can be used for pocketing as well. Part numbers with “S” have 8º upshear.
Hw
Fb
Hp
Rp
Machine Types
CNC Router
Industries
MDF Door Manufacturing
Cabinet & Casegoods Manufacturing
Moulding & Millwork
Sign making & Clad paneling
Advanced Composite Materials

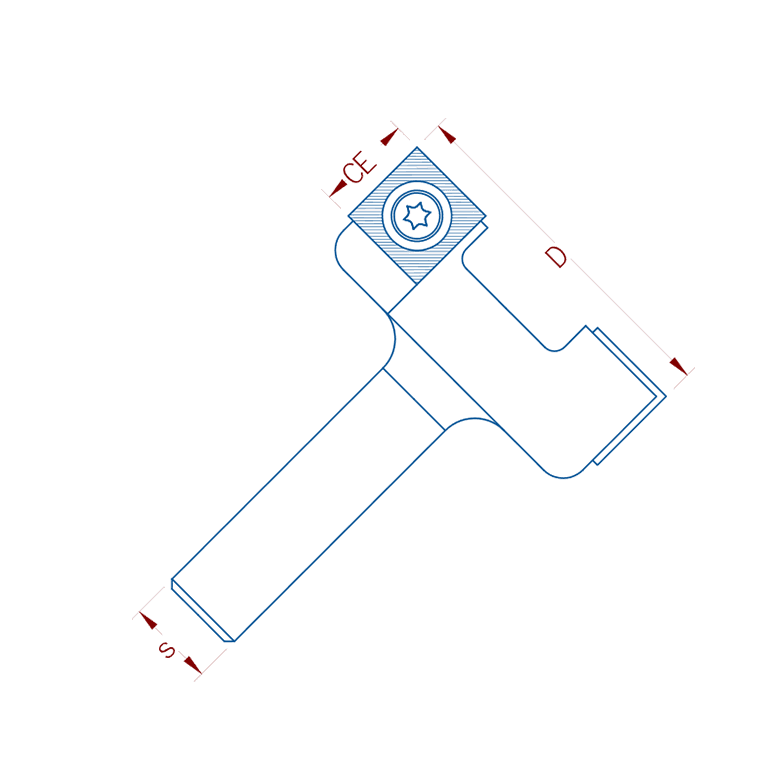

| Part | D | CE | Sh | Z | Rotation | OA |
|---|---|---|---|---|---|---|
| 563S.032.14-752S | 1.250" | 0.551" | 0.750" | 2 | RH | |
| 563S.048.14-753S | 1.875" | 0.551" | 0.750" | 3 | RH | |
| 563S.050.14-502 | 2.000" | 0.551" | 0.500" | 2 | RH | |
| 563S.050.14-753 | 2.000" | 0.551" | 0.750" | 3 | RH | |
| 563S.065.14-502S | 2.500" | 0.551" | 0.500" | 2 | RH | |
| 563S.100.14-753 | 4.000" | 0.551" | 0.750" | 3 | RH | |
| 563S.100.14-753S | 4.000" | 0.551" | 0.750" | 3 | RH |
