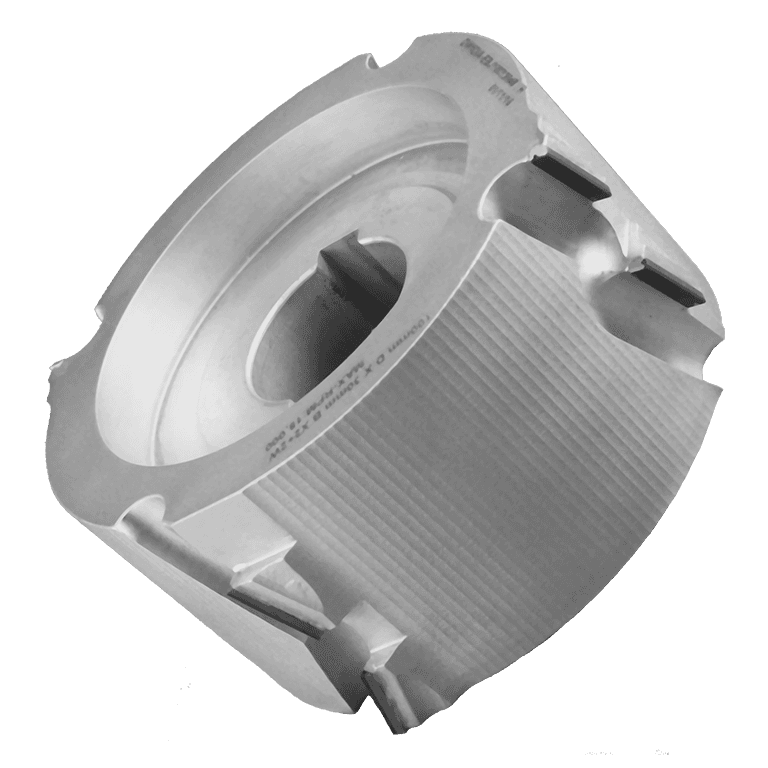

Straight Edgebander Cutterhead
PCD Diamond edgebander cutterhead for CNC edgebanders. Premium tool geometry and high quality PCD for maximum tool life.
| Part | D | CE | Z | b1 | d | Keyways |
|---|---|---|---|---|---|---|
| DIA-EBJ-07041610 | 70mm | 10mm | 4 | 11mm | 16mm | 5mm |

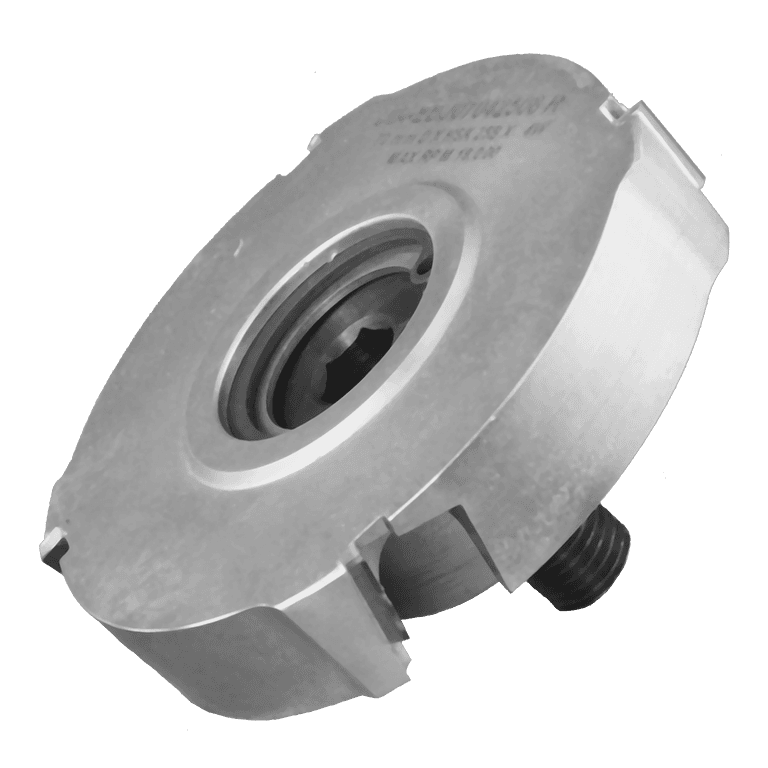

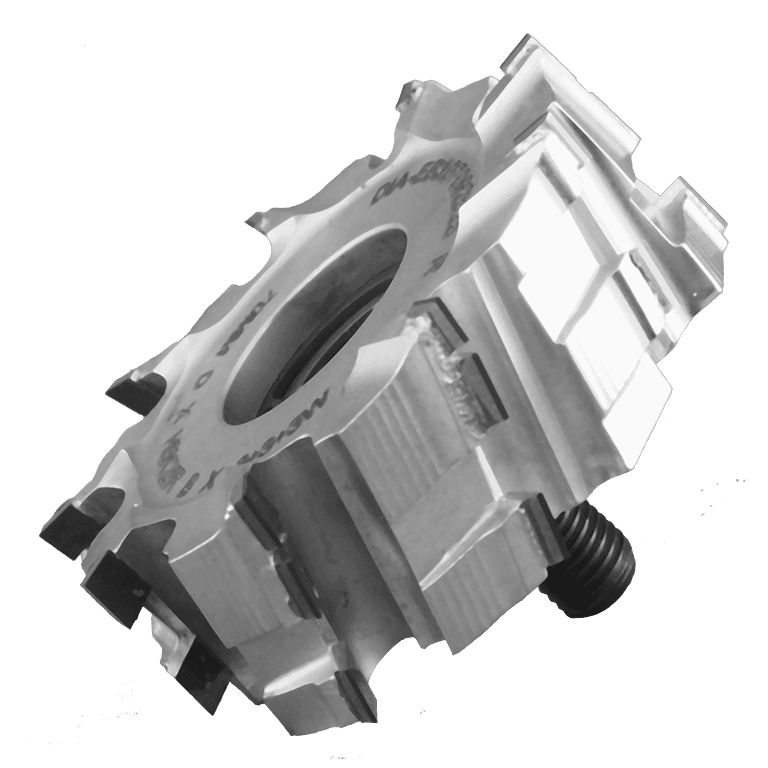

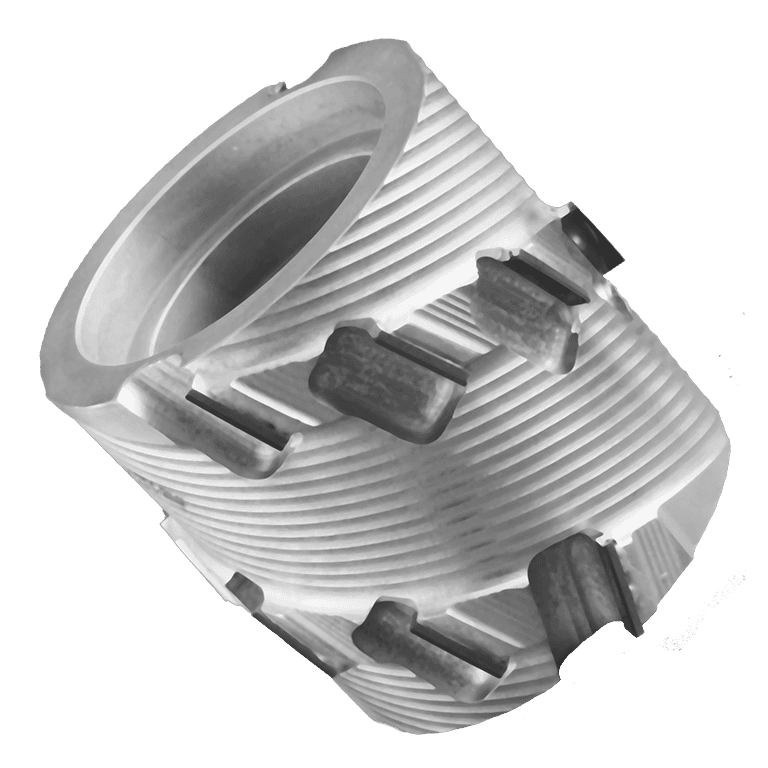

Straight Edgebander Cutterheads HSK25R
PCD Diamond edgebander cutterhead for CNC edgebanders. Premium tool geometry and high quality PCD for maximum tool life.
| Part | D | CE | Z | Rotation | b1 | d |
|---|---|---|---|---|---|---|
| DIA-EBJ-07092525.L | 70mm | 25mm | 3+3+3 | LH | 28mm | HSK25R |
| DIA-EBJ-07092525.R | 70mm | 25mm | 3+3+3 | RH | 28mm | HSK25R |

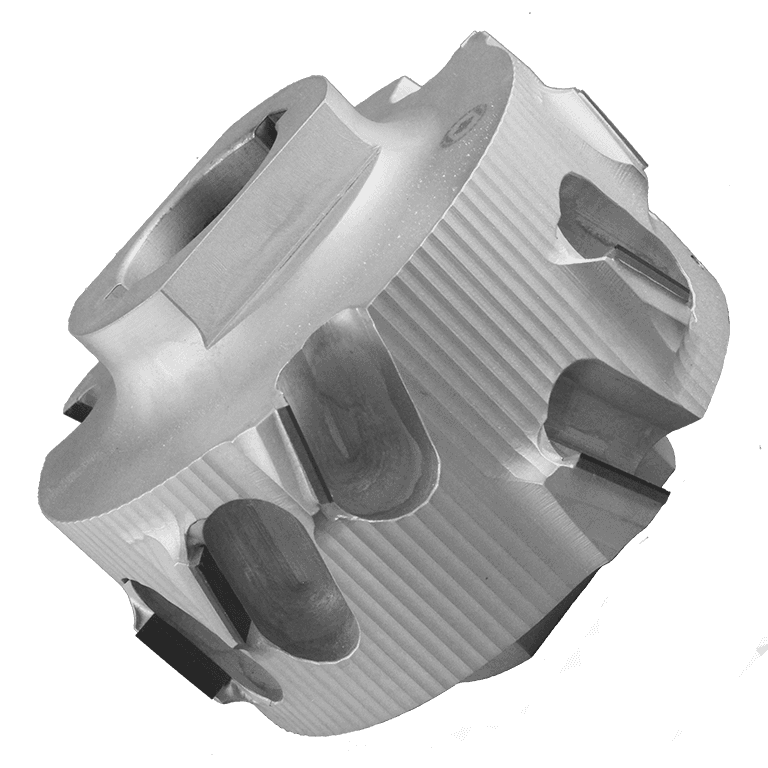

Straight Edgebander Cutterheads with Hub
PCD Diamond edgebander cutterhead for CNC edgebanders. Premium tool geometry and high quality PCD for maximum tool life.
| Part | D | CE | Z | Rotation | b1 | d | Keyways |
|---|---|---|---|---|---|---|---|
| DIA-EBJ06022540L | 60mm | 40mm | 2+2 | LH | 57mm | HSK25R | 8mm |
| DIA-EBJ06022540R | 60mm | 40mm | 2+2 | RH | 57mm | HSK25R | 8mm |
Straight Edgebander Cutterheads HSK25R Narrow
PCD Diamond edgebander cutterhead for CNC edgebanders. Premium tool geometry and high quality PCD for maximum tool life.
| Part | D | CE | Z | Rotation | b1 | d |
|---|---|---|---|---|---|---|
| DIA-EBJ-07042508.L | 70mm | 8mm | 4 | LH | 22mm | HSK25R |
| DIA-EBJ-07042508.R | 70mm | 8mm | 4 | RH | 22mm | HSK25R |
| DIA-EBJ07062508L | 70mm | 8mm | 6 | LH | 22mm | HSK25R |
| DIA-EBJ07062508R | 70mm | 8mm | 6 | RH | 22mm | HSK25R |

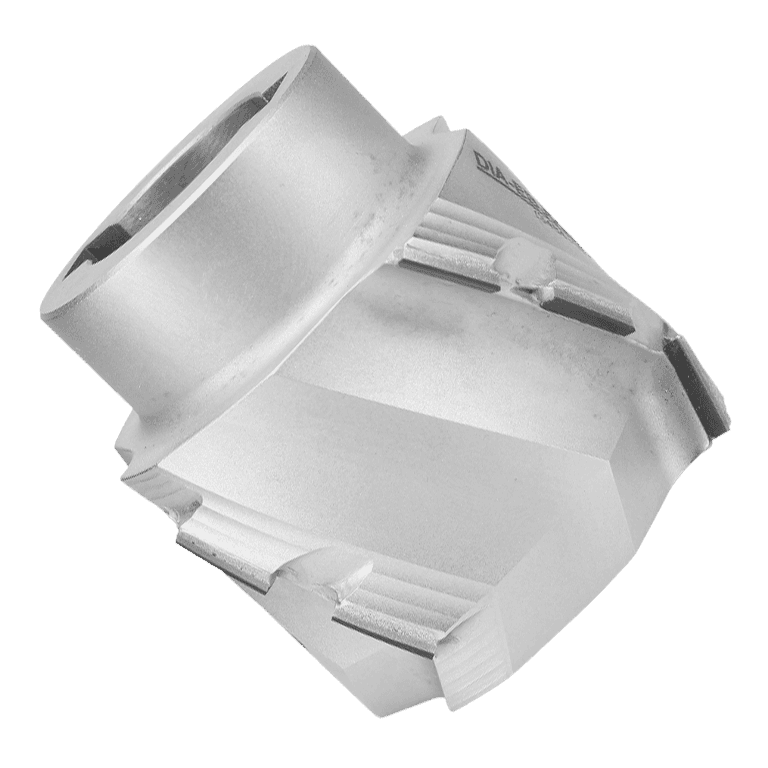

Straight Edgebander Cutterheads with Stepped Hub
PCD Diamond edgebander cutterhead for CNC edgebanders. Premium tool geometry and high quality PCD for maximum tool life.
| Part | D | CE | Z | Rotation | b1 | d | Keyways |
|---|---|---|---|---|---|---|---|
| DIA-EBJ07023064.L | 70mm | 65mm | 2+2 | LH | 41mm | 30mm | 8mm |
| DIA-EBJ07023064.R | 70mm | 65mm | 2+2 | RH | 41mm | 30mm | 8mm |

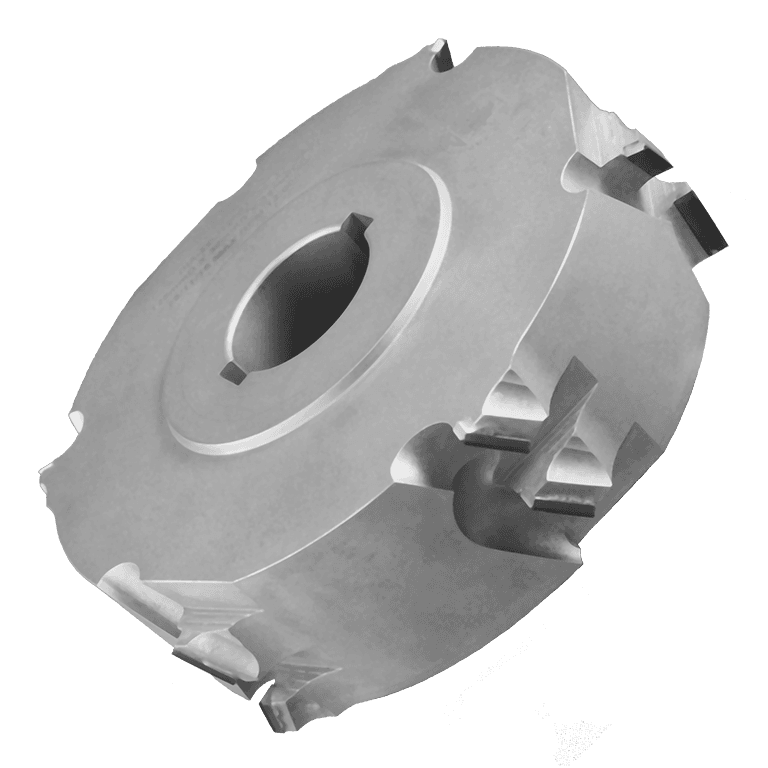

Straight Edgebander Cutterheads with Reversible Hub
PCD Diamond edgebander cutterhead for CNC edgebanders. Premium tool geometry and high quality PCD for maximum tool life.
| Part | D | CE | Z | b1 | d | Pinholes | Keyways |
|---|---|---|---|---|---|---|---|
| DIA-EBJ10033045 | 100mm | 46mm | 3+3 | 75mm | 30mm | 8mm | |
| DIA-EBJ10033065 | 100mm | 65mm | 3+3 | 75mm | 30mm | 2/5.5/80mm | 8mm |

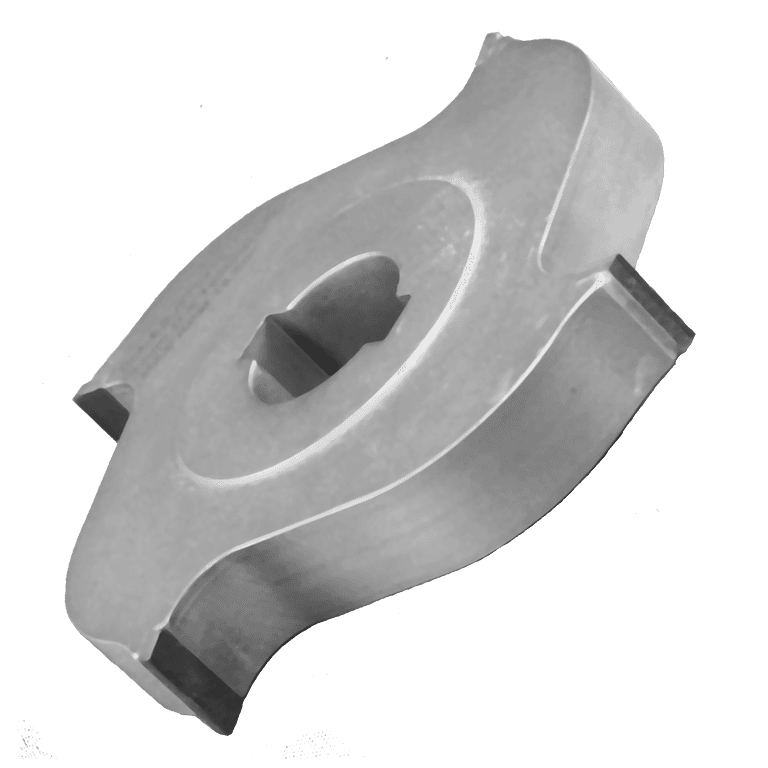

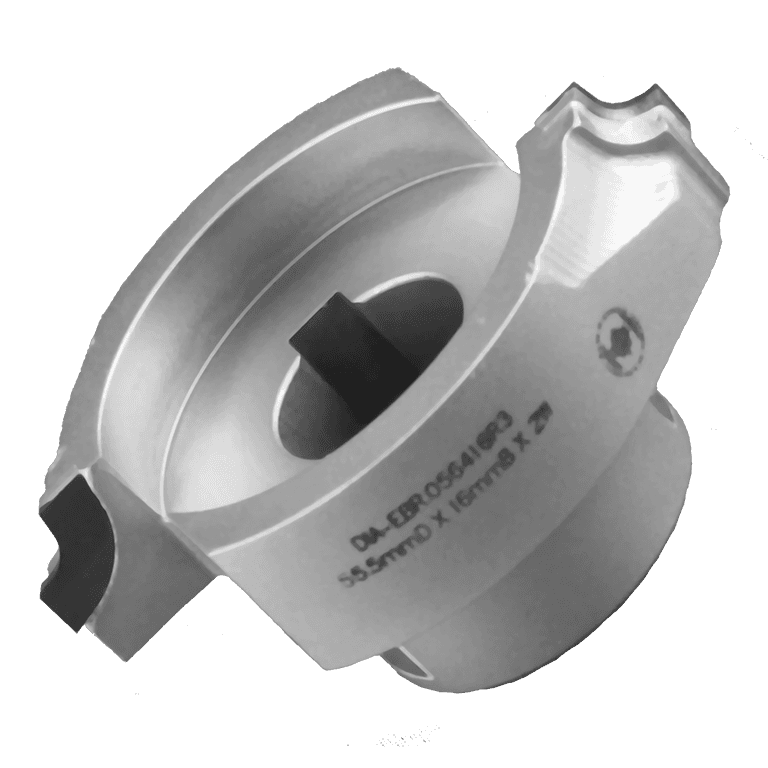

Radius Edgebander Cutterheads Olympic
PCD Diamond edgebander cutterhead for CNC edgebanders. Premium tool geometry and high quality PCD for maximum tool life.
| Part | D | Z | Rotation | b1 | r | d | Keyways |
|---|---|---|---|---|---|---|---|
| DIA-EBR-056416R02.L | 56mm | 2 | LH | 27mm | 2mm | 16mm | 5mm |
| DIA-EBR-056416R02.R | 56mm | 2 | RH | 27mm | 2mm | 16mm | 5mm |
| DIA-EBR-056416R03.L | 56mm | 2 | LH | 27mm | 3mm | 16mm | 5mm |
| DIA-EBR-056416R03.R | 56mm | 2 | RH | 27mm | 3mm | 16mm | 5mm |

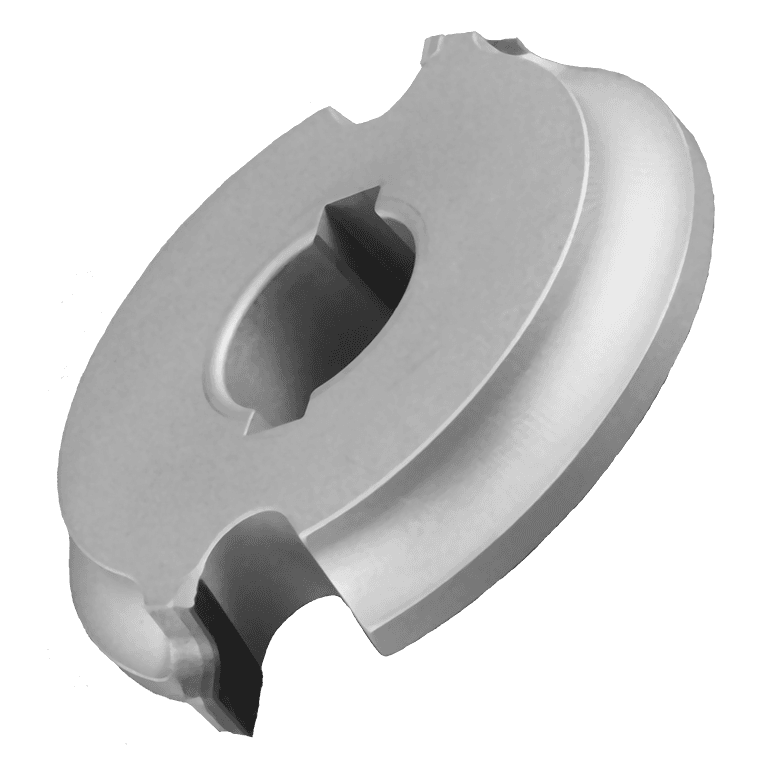

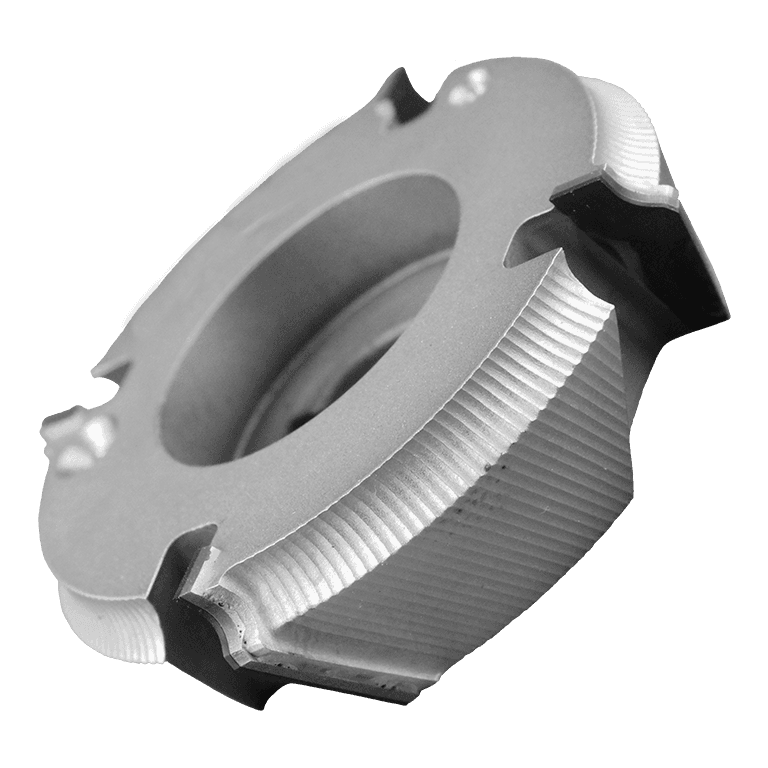

Radius Edgebander Cutterheads
PCD Diamond edgebander cutterhead for CNC edgebanders. Premium tool geometry and high quality PCD for maximum tool life.
| Part | D | Z | Rotation | b1 | r | d | Keyways |
|---|---|---|---|---|---|---|---|
| DIA-EBR-057216R2 LH | 57mm | 2 | LH | 12.5mm | 2.0mm | 16mm | 5mm |
| DIA-EBR-057216R2 RH | 57mm | 2 | RH | 12.5mm | 2.0mm | 16mm | 5mm |
| DIA-EBR-057216R3 LH | 57mm | 2 | LH | 12.5mm | 3.0mm | 16mm | 5mm |
| DIA-EBR-057216R3 RH | 57mm | 2 | RH | 12.5mm | 3.0mm | 16mm | 5mm |
Radius Edgebander Cutterheads Brandt
PCD Diamond edgebander cutterhead for CNC edgebanders. Premium tool geometry and high quality PCD for maximum tool life.
| Part | D | Z | Rotation | b1 | r | d | Keyways |
|---|---|---|---|---|---|---|---|
| DIA-EBR070416R3.L | 70.6mm | 4 | LH | .800" | 3.0mm | 16mm | 5mm |
| DIA-EBR070416R3.R | 70.6mm | 4 | RH | .800" | 3.0mm | 16mm | 5mm |

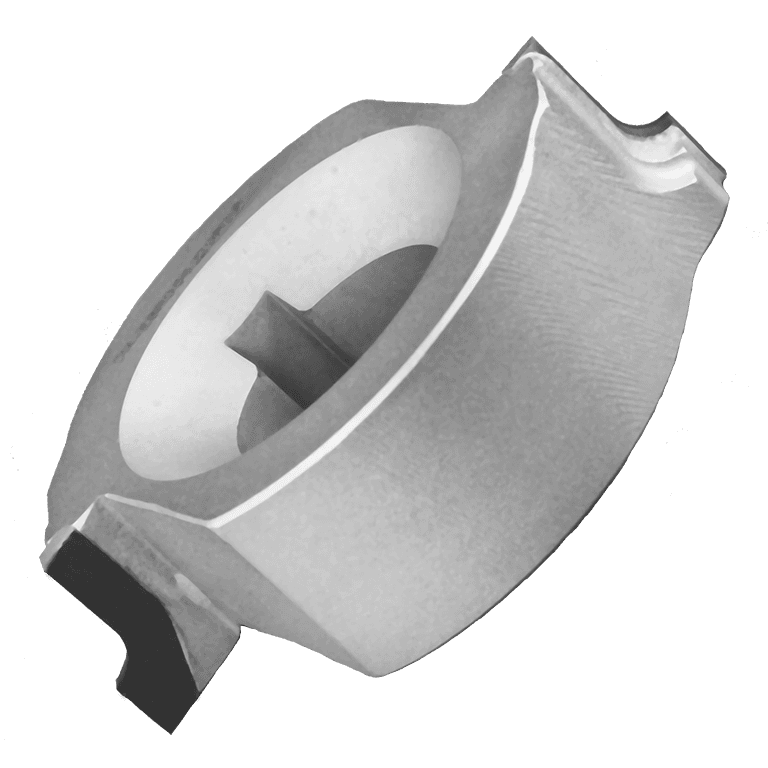

Radius Edgebander Cutterheads Tapered Bore
PCD Diamond edgebander cutterhead for CNC edgebanders. Premium tool geometry and high quality PCD for maximum tool life.
| Part | D | Z | Rotation | b1 | r | d | Keyways |
|---|---|---|---|---|---|---|---|
| DIA-EBR073420R1.L | 73mm | 4 | LH | 19mm | 1.0mm | 20mm | 5mm |
| DIA-EBR073420R1.R | 73mm | 4 | RH | 19mm | 1.0mm | 20mm | 5mm |

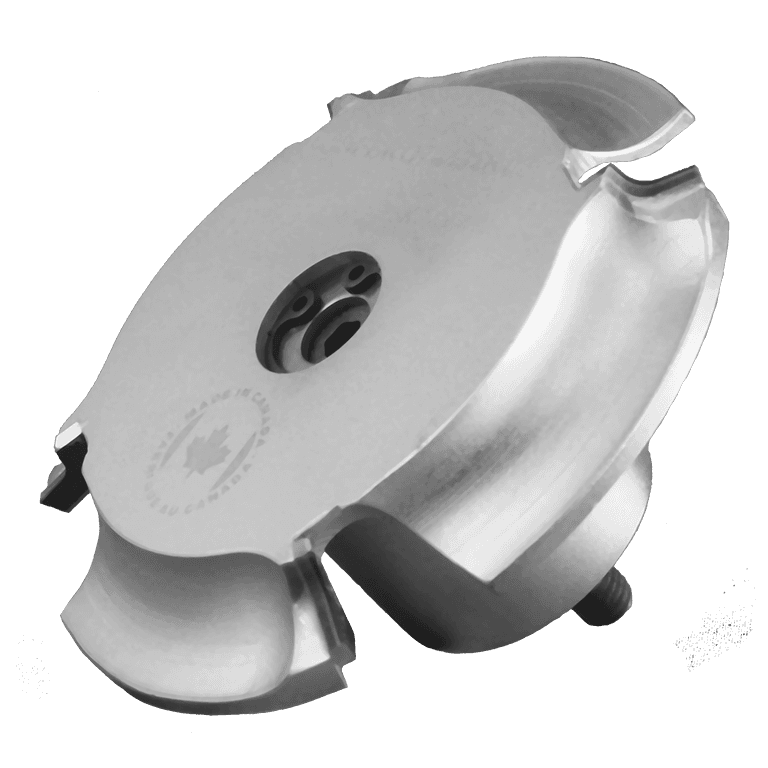

Radius Edgebander Cutterheads HSK32
PCD Diamond edgebander cutterhead for CNC edgebanders. Premium tool geometry and high quality PCD for maximum tool life.
| Part | D | Z | Rotation | b1 | r | d |
|---|---|---|---|---|---|---|
| DIA-EBR-074432R03.L | 74mm | 4 | LH | 33mm | 3mm | HSK32 |
| DIA-EBR-074432R03.R | 74mm | 4 | RH | 33mm | 3mm | HSK32 |

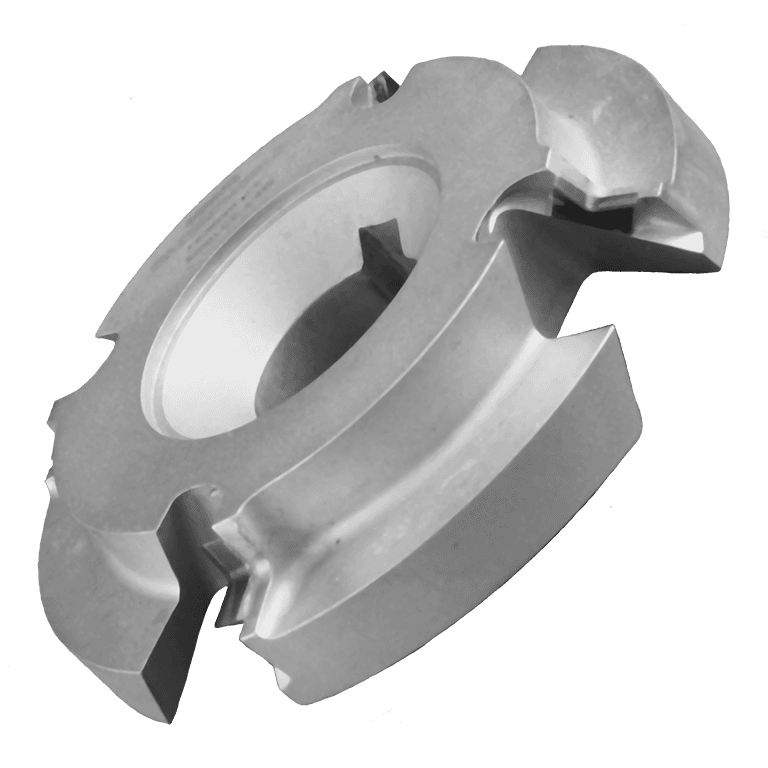

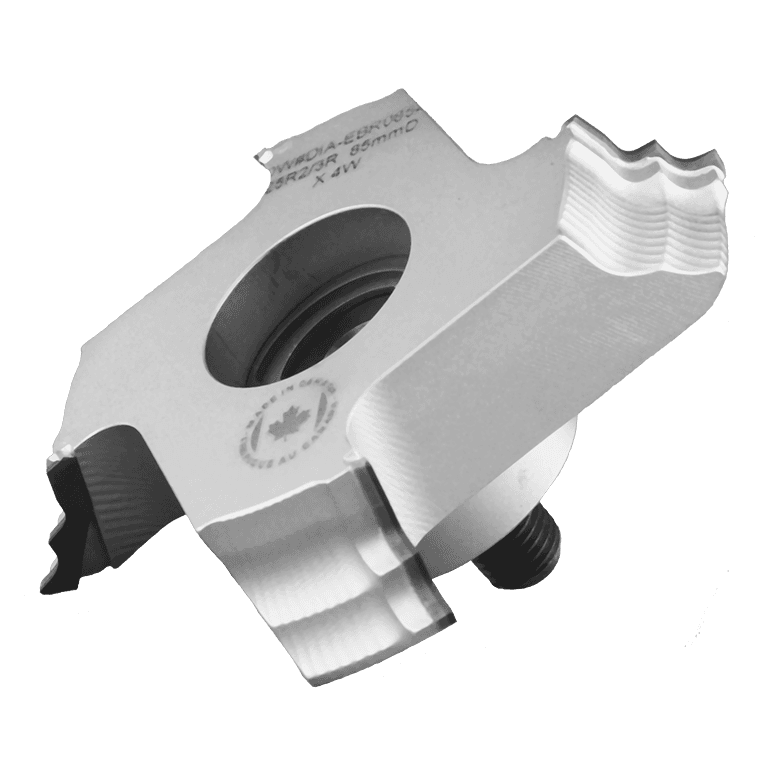

Double Radius Edgebander Cutterheads HSK25
PCD Diamond edgebander cutterhead for CNC edgebanders. Premium tool geometry and high quality PCD for maximum tool life.
| Part | D | Z | Rotation | b1 | r1 | d | r2 |
|---|---|---|---|---|---|---|---|
| DIA-EBR-085425R2/3.L | 85mm | 4 | LH | 28mm | 2mm | HSK25 | 3mm |
| DIA-EBR-085425R2/3.R | 85mm | 4 | RH | 28mm | 2mm | HSK25 | 3mm |
