DIA-EBR073420R1.L

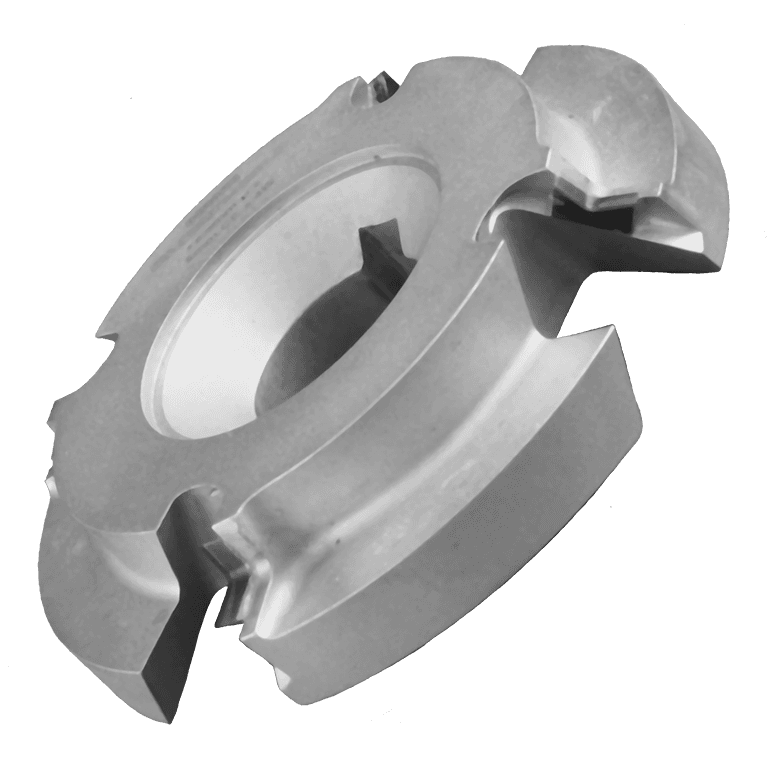

PCD Diamond edgebander cutterhead for CNC edgebanders. Premium tool geometry and high quality PCD for maximum tool life. Left Hand Rotation.

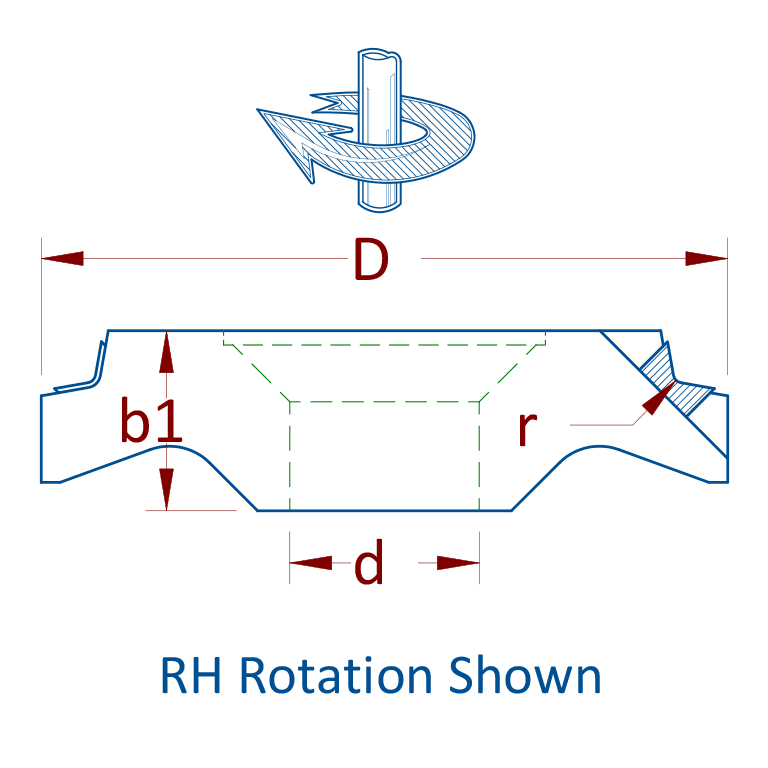

Diameter (D) | 73mm |
Number of Wings/Flutes/Teeth (Z) | 4 |
Material (Material) | DP |
Rotation (Rotation) | LH |
Dimension Variable 1 (b1) | 19mm |
Radius Variable (r) | 1.0mm |
Bore Size (d) | 20mm |
Keyways (Keyways) | 5mm |
