DIA-EBR-085425R2/3.R
PCD Diamond edgebander cutterhead for CNC edgebanders. Premium tool geometry and high quality PCD for maximum tool life. Right Hand Rotation.

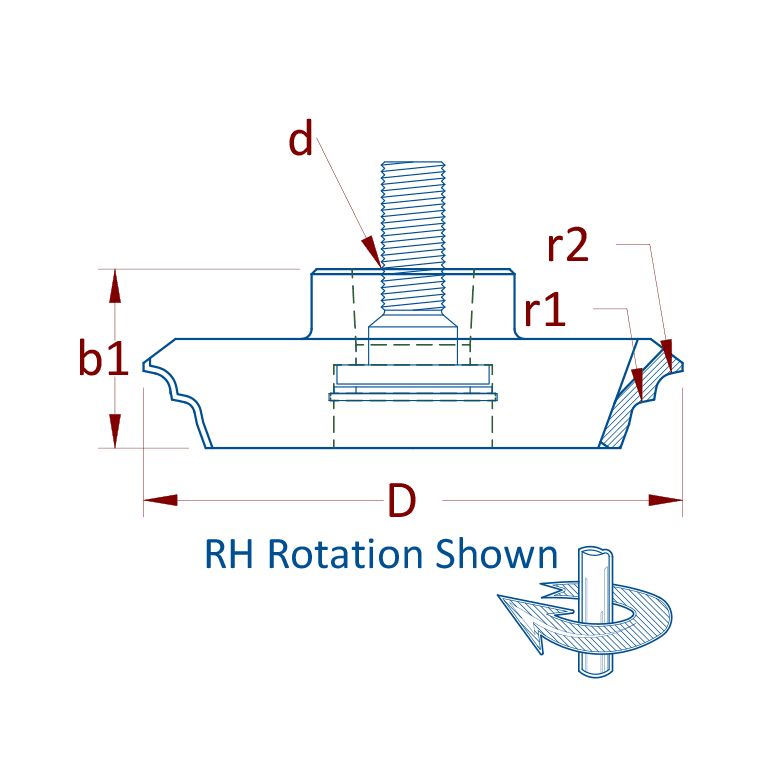

Diameter (D) | 85mm |
Number of Wings/Flutes/Teeth (Z) | 4 |
Material (Material) | DP |
Rotation (Rotation) | RH |
Dimension Variable 1 (b1) | 28mm |
Radius Variable 1 (r1) | 2mm |
Bore Size (d) | HSK25 |
Radius Variable 2 (r2) | 3mm |
