PCD Edgebander Inserts

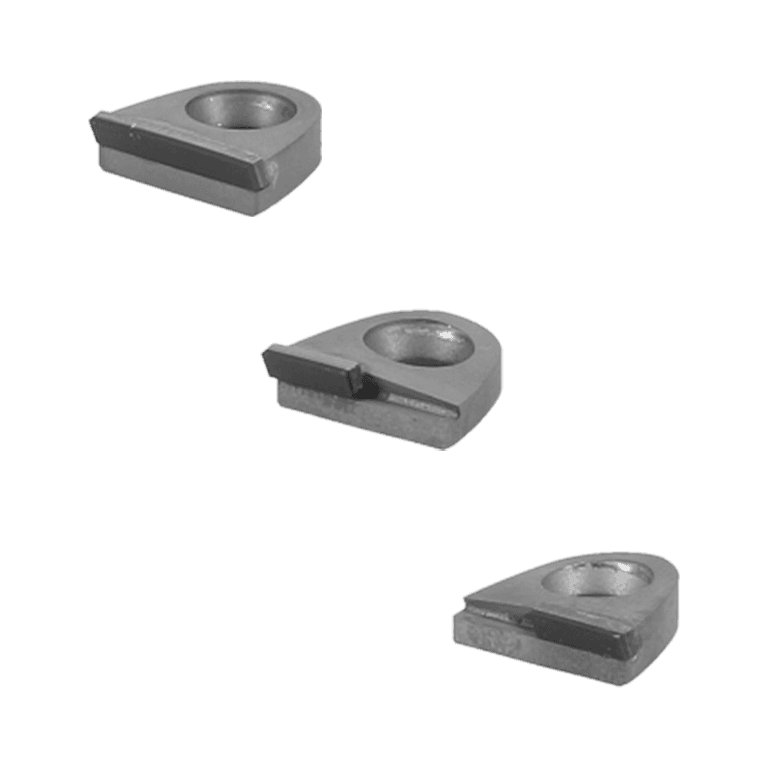

PCD Insert Knife for Premill Edgebander Cutterheads.
Hw
Pb
Fb
Pl
Hp
Rp
Machine Types
Edgebander
Industries
Cabinet & Casegoods Manufacturing

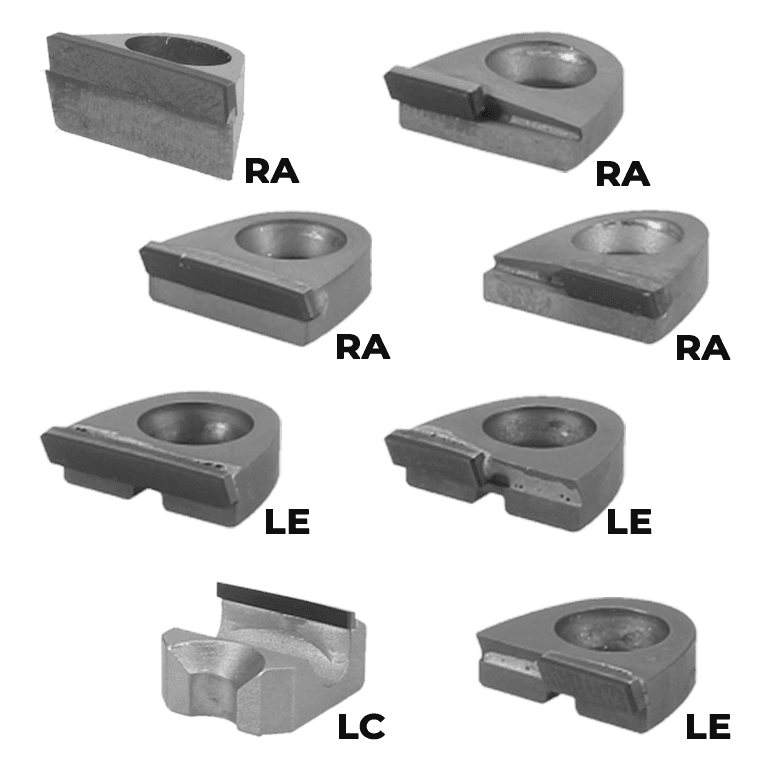

| Part | Type | CE | OA | b1 | b2 | r | h |
|---|---|---|---|---|---|---|---|
| DIA-EBJ080IN | RA | 14mm | 11.7mm | 4mm | 15mm | 80mm | 8mm |
| DIA-EBJ080INB | RA | 14mm | 14.7mm | 5mm | 14.2mm | 80mm | 4.6mm |
| DIA-EBJ080INBL | RA | 7mm | 14.7mm | 5mm | 14.2mm | 80mm | 4.6mm |
| DIA-EBJ080INBR | RA | 7mm | 14.7mm | 5mm | 14.2mm | 80mm | 4.6mm |
| DIA-EBJ100LE | LE | 14mm | 14.5mm | 5mm | 14mm | 100mm | 4.6mm |
| DIA-EBJ100LE.L | LE | 7mm | 14.5mm | 5mm | 14mm | 100mm | 4.6mm |
| DIA-EBJ100LE.R | LE | 7mm | 14.5mm | 5mm | 14mm | 100mm | 4.6mm |
| DIA-EBJ125IN | RA | 14mm | 11.7mm | 4mm | 15mm | 125mm | 8mm |
| DIA-EBJ125LC | LC | 14.2mm | 17.2mm | 5mm | 14.2mm | 125mm | 8.9mm |
| DIA-EBJ200HSIN | RA | 14mm | 11.7mm | 4mm | 15mm | 200mm | 8mm |
