DIA-EBJ06022540R

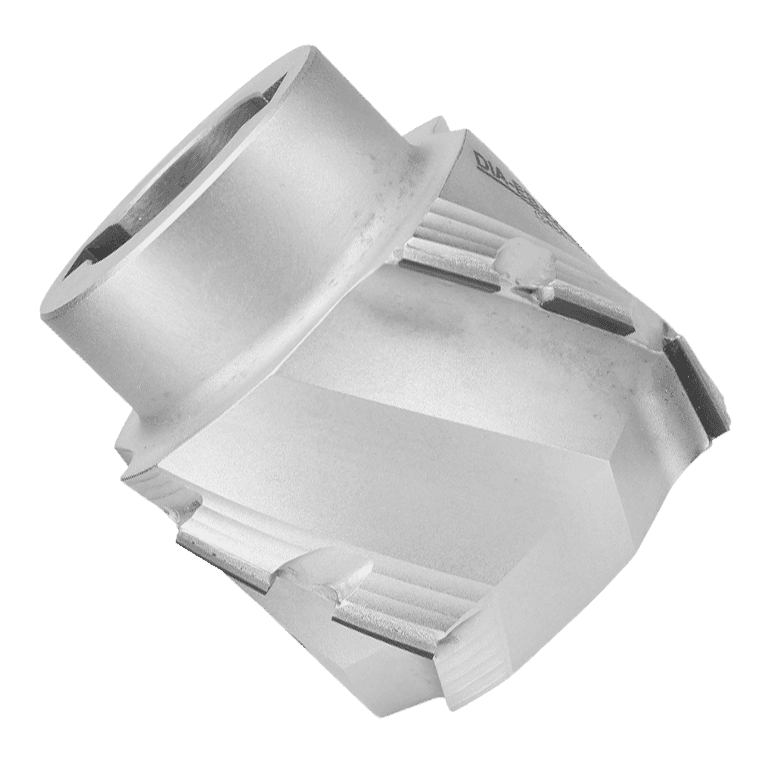

PCD Diamond edgebander cutterhead for CNC edgebanders. Premium tool geometry and high quality PCD for maximum tool life. Right Hand Rotation.

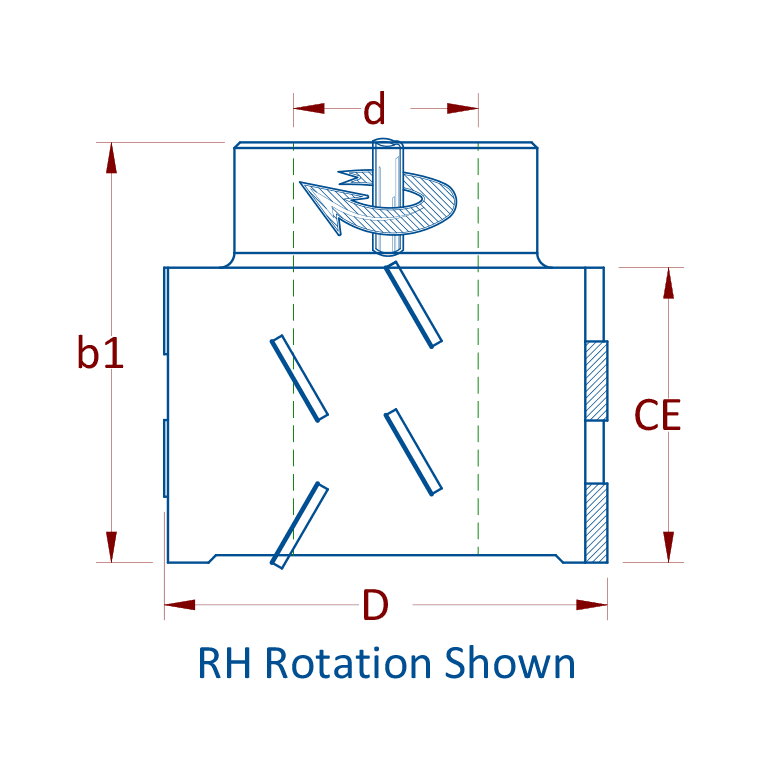

Diameter (D) | 60mm |
Cutting Edge (CE) | 40mm |
Number of Wings/Flutes/Teeth (Z) | 2+2 |
Material (Material) | DP |
Rotation (Rotation) | RH |
Dimension Variable 1 (b1) | 57mm |
Bore Size (d) | HSK25R |
Keyways (Keyways) | 8mm |
