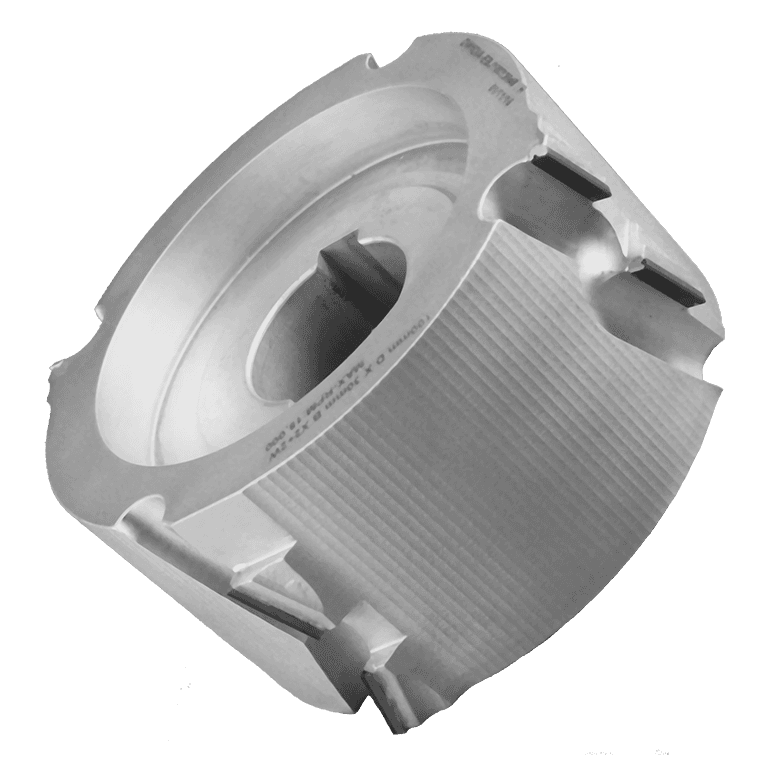

Straight Edgebander Cutterheads with Offset Hub
PCD Diamond edgebander cutterhead for CNC edgebanders. Premium tool geometry and high quality PCD for maximum tool life.
Hw
Pb
Fb
Pl
Hp
Rp
Machine Types
Edgebander
Industries
Cabinet & Casegoods Manufacturing

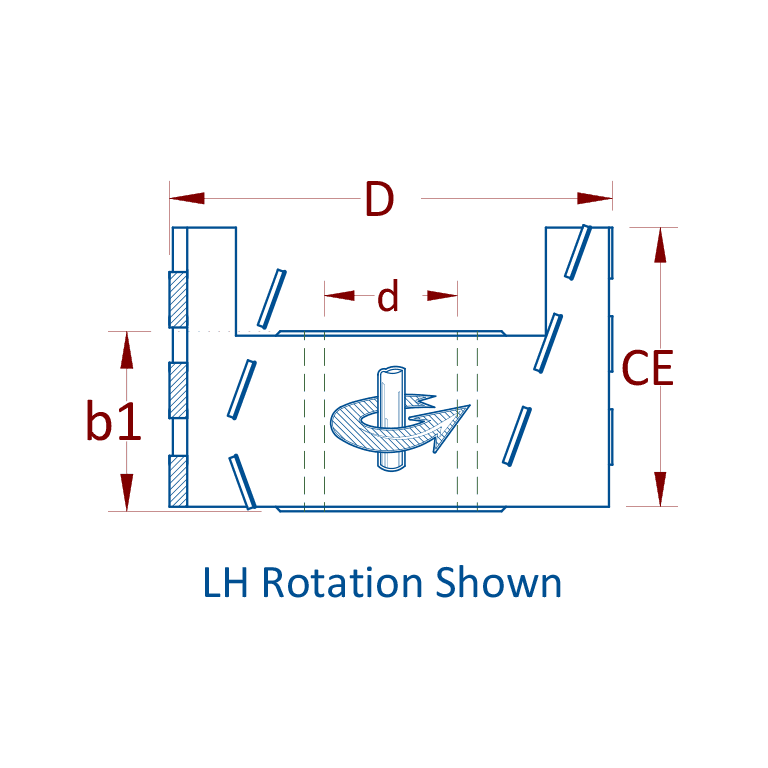

| Part | D | CE | b1 | Z | Rotation | d | Keyways |
|---|---|---|---|---|---|---|---|
| DIA-EBJ10033048L | 100mm | 48mm | 41mm | 3+3 | LH | 30mm | 8mm |
| DIA-EBJ10033048R | 100mm | 48mm | 41mm | 3+3 | RH | 30mm | 8mm |
| DIA-EBJ10033063L | 100mm | 64mm | 41mm | 3+3 | LH | 30mm | 8mm |
| DIA-EBJ10033063R | 100mm | 64mm | 41mm | 3+3 | RH | 30mm | 8mm |
| DIA-EBJ12533063L | 125mm | 63mm | 41mm | 3+3 | LH | 30mm | 8mm |
| DIA-EBJ12533063R | 125mm | 63mm | 41mm | 3+3 | RH | 30mm | 8mm |
