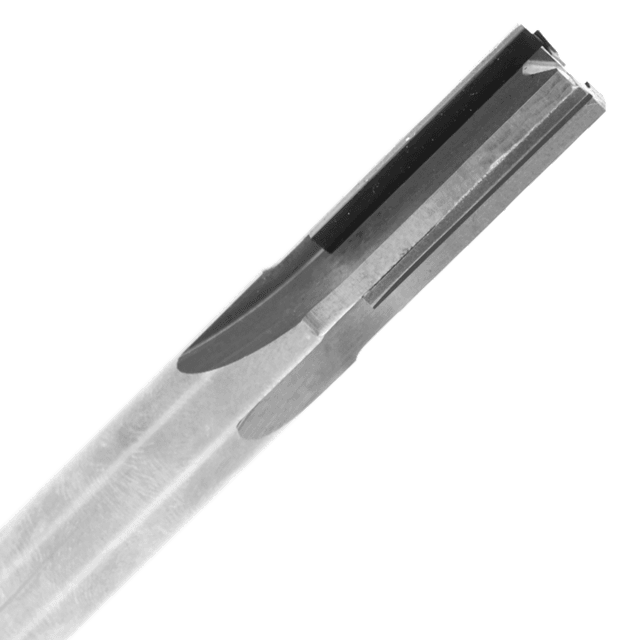

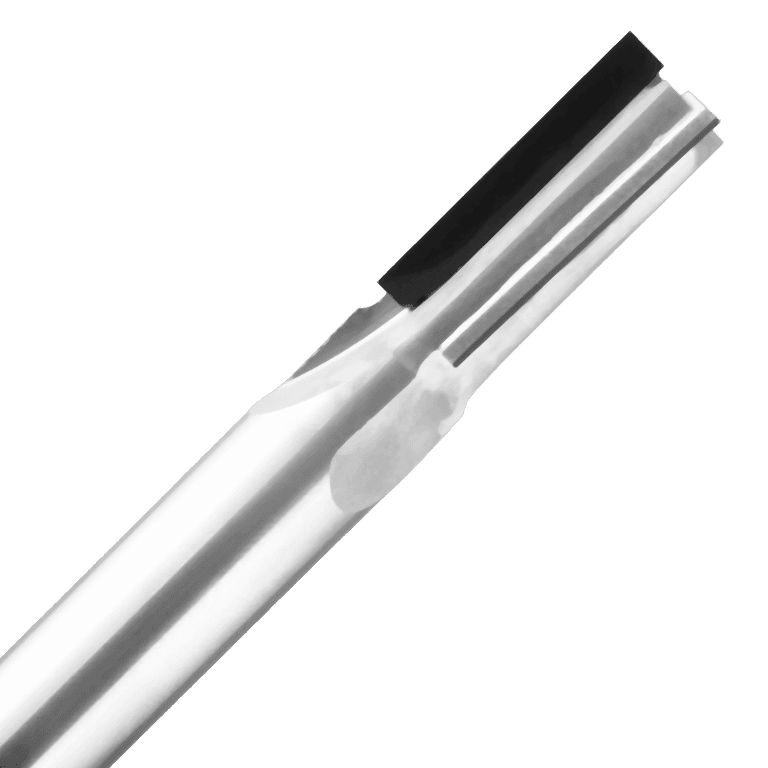

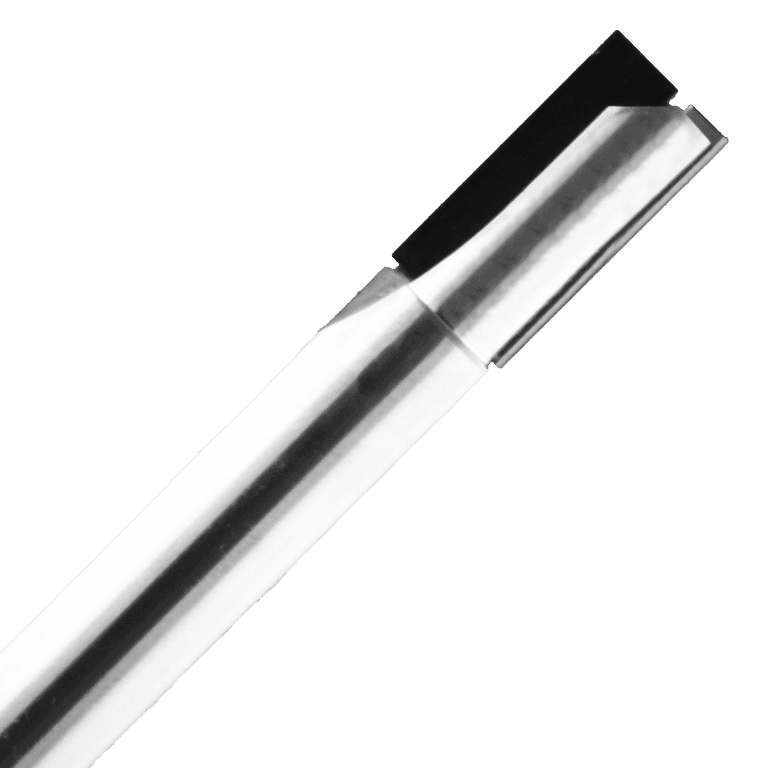

Double Flute Straight
Double Flute Straight

PCD cutting tool provides excellent wear resistance in abrasive materials. Solid carbide body unless indicated. Radius corners to provide improved bottom finish in pocketing applications.

Hw
Fb
Rp

10 Products

Triple Flute Straight
Triple Flute Straight

PCD cutting tool provides excellent wear resistance in abrasive materials. Solid carbide body unless indicated. Radius corners to provide improved bottom finish in pocketing applications.

Hw
Fb
Rp
Part
D
CE
Sh
Z
Rotation
OA
R100-3070.3750"1.125"0.375"3RH3.000"
R100-3090.5000"1.125"0.500"3RH3.000"

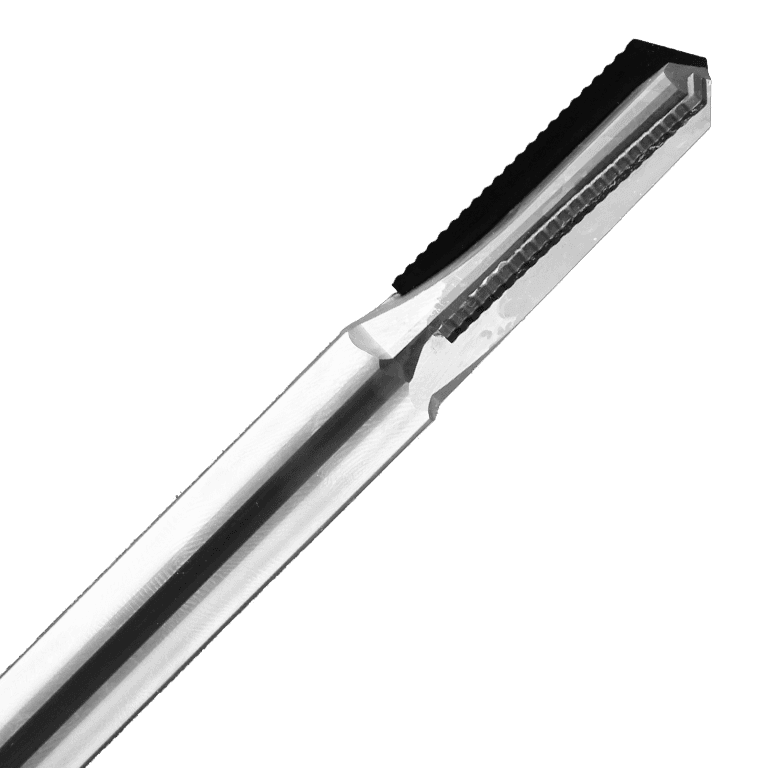

Double Flute Serrated
Double Flute Serrated

PCD cutting tool provides excellent wear resistance in abrasive materials. Serrated cutting edge cuts more freely and reduces de-lamination. Solid carbide body unless indicated.

Hw
Fb
Rp
Part
D
CE
Sh
Z
Rotation
OA
R101-0040.2500"0.750"0.250"2RH3.000"
R101-0070.3750"1.125"0.375"2RH3.000"
R101-0100.5000"1.375"0.500"2RH3.500"

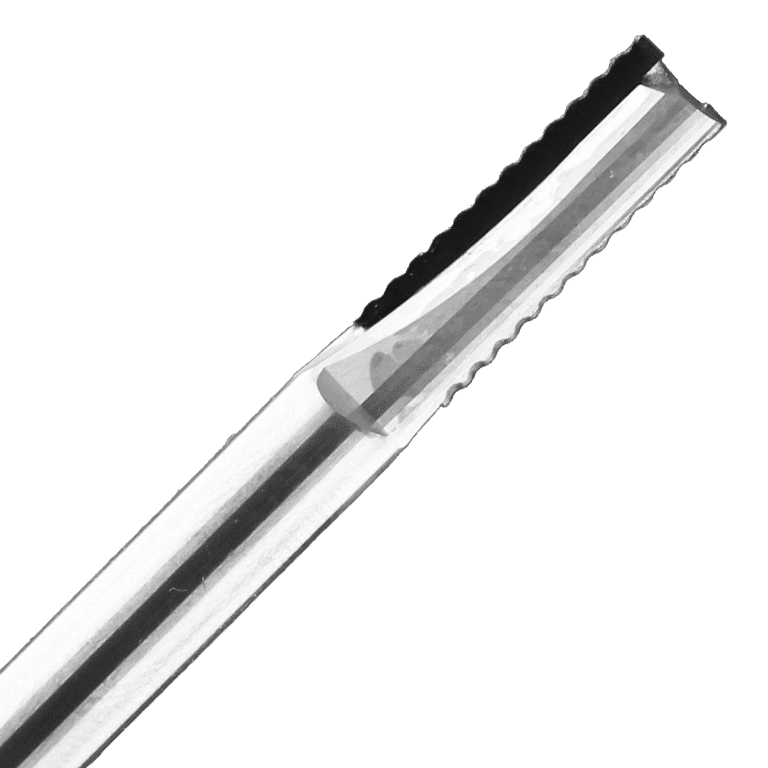

Reinforced Plastic Tool
Reinforced Plastic Tool

Serrated tooth design helps cleanly shear glass or carbon fibers in composites. Solid carbide body unless indicated.

Hw
Fb
Hp
Rp
Part
D
CE
END
Sh
Z
Rotation
OA
R103-0040.3750"1.125"Drill Point0.375"2RH3.000"
R103-0050.4375"1.125"Drill Point0.500"3RH3.500"
R103-007EM0.5000"1.125"End Mill0.500"3RH3.000"
R103-0080.5000"1.375"Drill Point0.500"3RH3.875"

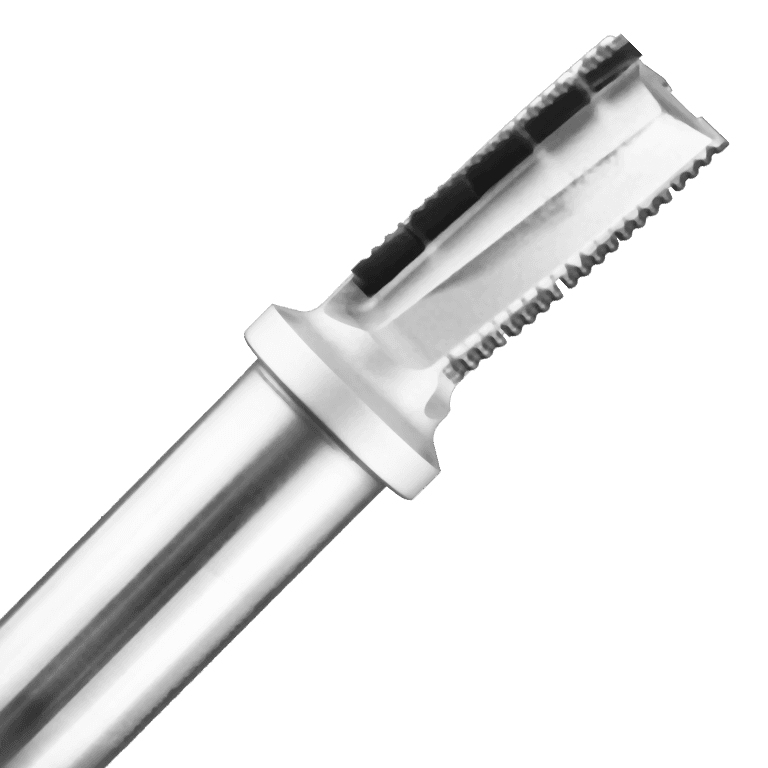

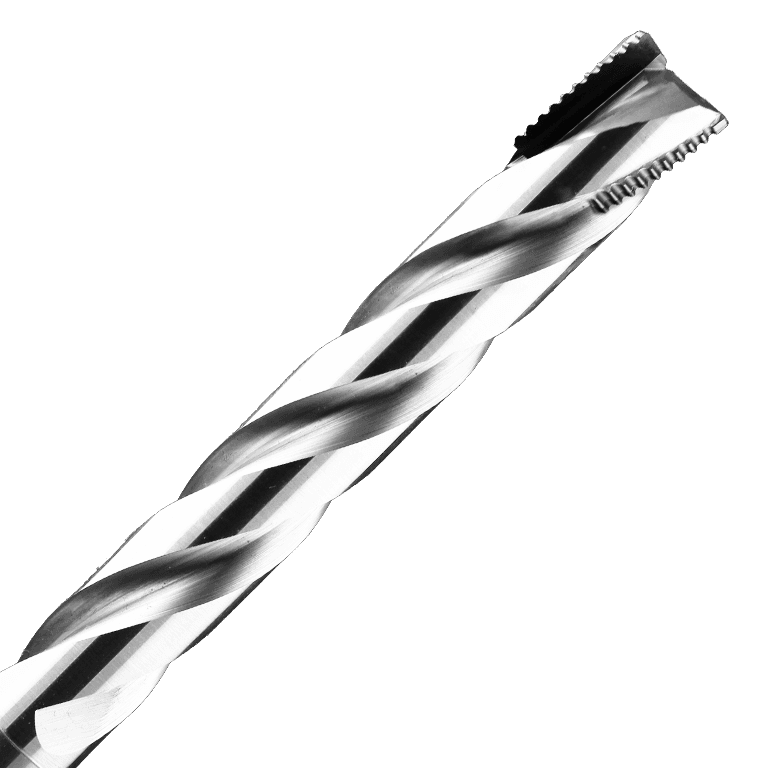

Triple Flute Rougher Finisher
Triple Flute Rougher Finisher

Serrated tooth design helps cleanly shear glass or carbon fibers in composites. Finishing wing provides smooth finish. Solid carbide body unless indicated.

Hw
Fb
Rp

6 Products

Triple Flute Slow Upcut
Triple Flute Slow Upcut

Excellent wear resistance in abrasive materials. Solid carbide body for increased rigidity. 2º Upshear works great on Composites or sizing MDF doors. Continuous knife for line free cut.

Hw
Fb
Rp
Part
D
CE
Sh
OA
Z
Rotation
R106-0030.3750"0.875"0.375"2.500"3RH
R106-0090.5000"1.125"0.500"3.000"3RH
Phenolic Tool
Phenolic Tool

PCD cutting tool provides excellent wear resistance in abrasive materials. Designed for routing phenolic and other fiber reinforced plastics, unique style chip-breakers help eliminate harmonics in routing.

Hw
Fb
Rp
Part
D
CE
b1
b2
Sh
Z
Rotation
OA
R107-0040.3750"0.625"1.250"1.250"0.375"3RH2.500"
R107-0100.5000"0.625"1.500"1.500"0.500"3RH3.000"

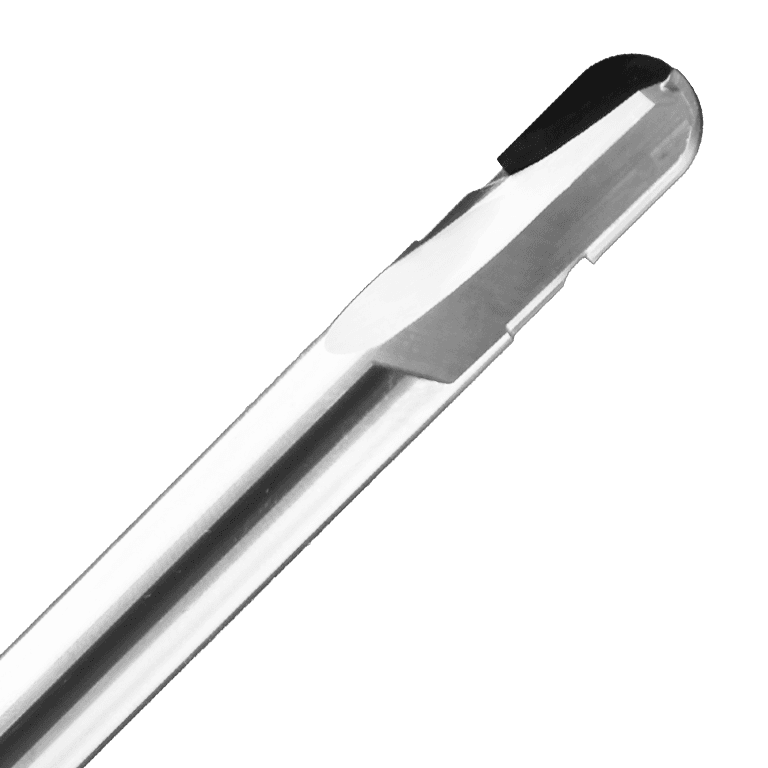

Ballnose Tool
Ballnose Tool

For adding structural rads in pocketing applications. PCD edge provides excellent wear resistance in abrasive material. Solid carbide body unless indicated.

Hw
Fb
Rp
Part
D
CE
b1
Sh
Z
Rotation
OA
R109-0040.2500"0.375"0.250"2RH3.000"
R109-0070.3750"0.500"0.375"2RH3.000"
R109-0100.5000"0.625"0.500"2RH3.000"
R109-0130.6250"0.875"0.625"2RH3.000"
R109-0170.7500"1.000"0.750"2RH4.000"
HiShear
HiShear

“HI SHEAR” router bit provides excellent perimeter cut quality. Tool geometry allows for minimal corner tearout. PCD edge provides excellent wear resistance in abrasive material.

Hw
Sw
Fb
Lm
Part
D
CE
UPCUT
Sh
Z
Rotation
OA
R120-04040mm37mm21mm0.750"2+2RH93mm
Lock Mortise Tool
Lock Mortise Tool

Designed for mortising side of doors to hold lock sets. PCD cutting edge for long life in engineered materials. Solid carbide body.

Hw
Sw
Fb
Part
D
CE
b1
Sh
Z
Rotation
OA
R230-0070.7500"0.875"4.875"0.750"3RH7.000"
ECODIA
ECODIA

PCD cutting tool provides excellent wear resistance in abrasive materials. Compression style wings help eliminate chipping and delamination.

Hw
Pb
Fb
Lm
Pl
Rp

14 Products

ECOSPARK
ECOSPARK

PCD cutting tool provides excellent wear resistance in abrasive materials. Compression style wings help eliminate chipping and delamination.

Hw
Pb
Fb
Lm
Pl
Rp

8 Products

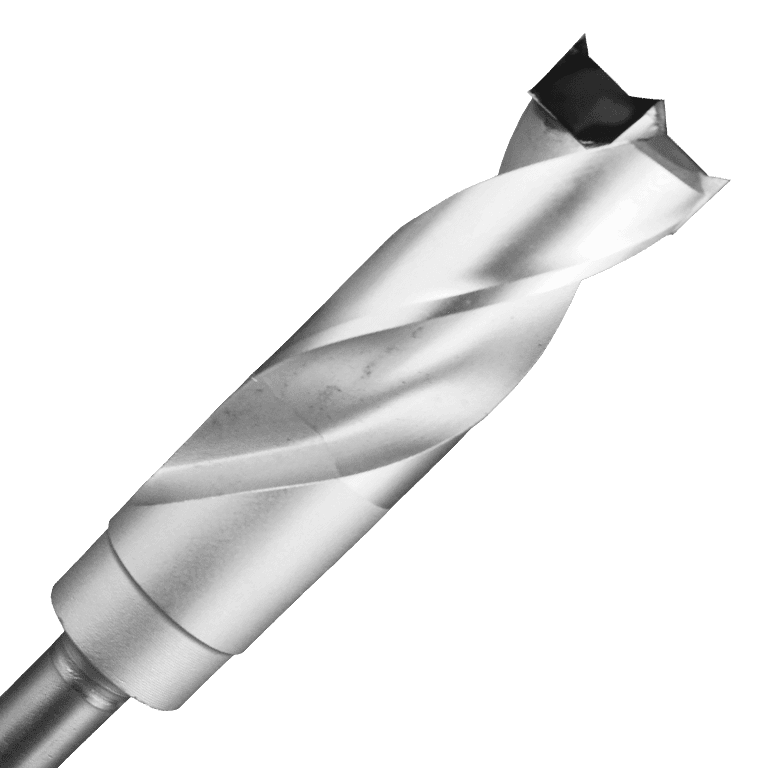

HIFEED
HIFEED

PCD cutting tool provides excellent wear resistance in abrasive materials. Compression style wings help eliminate chipping and delamination. Complex geometry closely matches 3 wings spiral tools.

Hw
Pb
Fb
Lm
Rp

7 Products

ECOFLAME
ECOFLAME

PCD cutting tool provides excellent wear resistance in abrasive materials. Compression style wings help eliminate chipping and delamination. Effective 3 wing design.

Hw
Fb
Lm
Rp
Part
D
CE
UPCUT
Sh
Z
Rotation
OA
DIA-HIFEED.01U0.5000"0.875"0.240"0.500"3RH2.750"

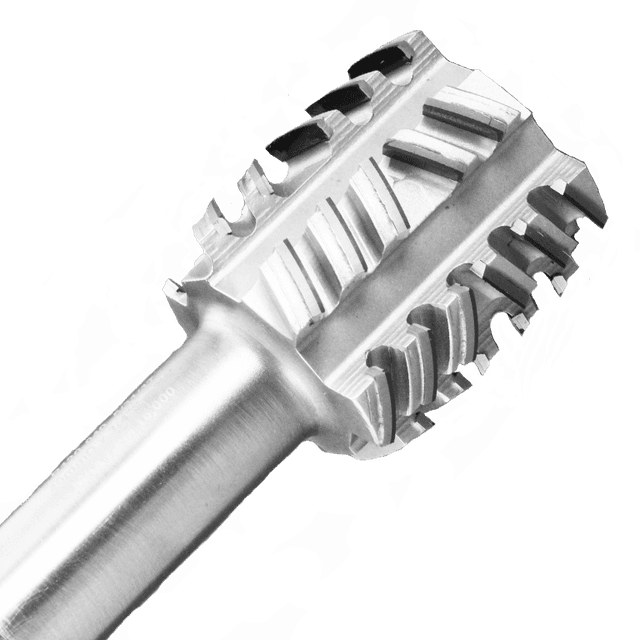

HOGGING
HOGGING

PCD cutting tool provides excellent wear resistance in abrasive materials. Rougher style suited for hogging solid wood and MDF.

Hw
Fb
Rp
Part
D
CE
Sh
Z
Rotation
OA
DIA-HIFEED.06RO0.7500"1.375"0.750"3RH4.000"
DIA-HIFEED.08RO0.7500"2.250"0.750"3RH4.250"
DOWNSHEAR
DOWNSHEAR

PCD cutting tool provides excellent wear resistance in abrasive materials. Equipped with plunge top to allow straight plunging.

Hw
Fb
Rp
Part
D
CE
Sh
Z
Rotation
OA
DIA-RTR.DS120.5000"0.500"0.500"2+1RH2.750"
DIA-RTR.DS180.6250"0.500"0.500"2+1RH2.750"

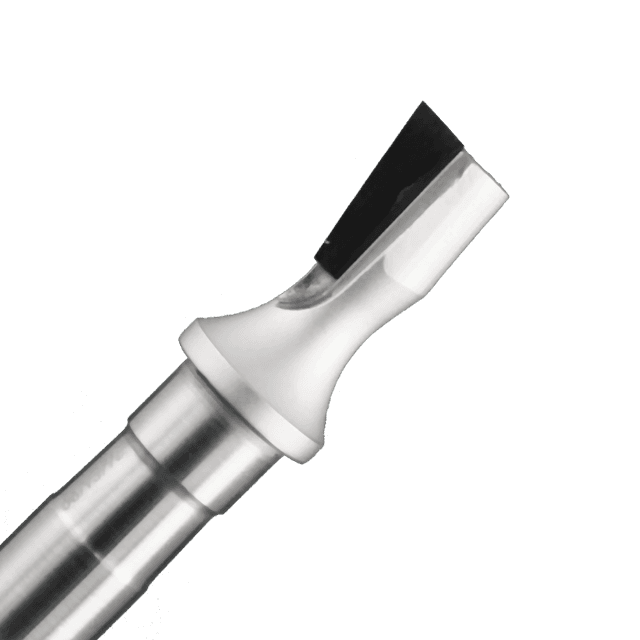

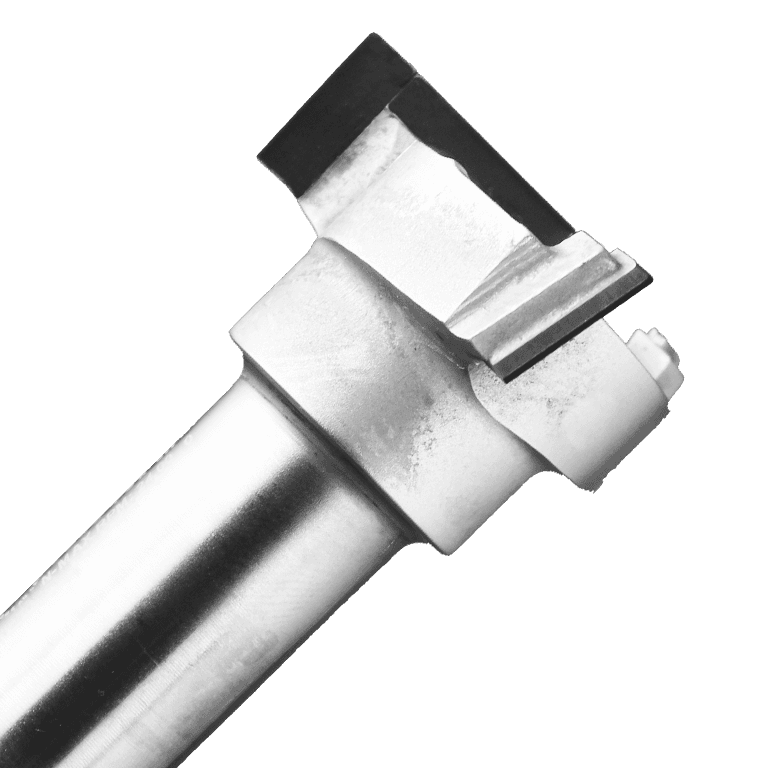

Plunge Pocketing Tool
Plunge Pocketing Tool

Excellent for pocketing centre panel on MDF doors. Unique “LA” grind generates extremely smooth bottom finish to reduce sanding required before finishing doors. Can also be used to surface or pocket in solid woods and plastics. Centre cutting tip allows plunging.

Hw
Fb
Hp
Rp

6 Products

Ramp In Pocketing Tool
Ramp In Pocketing Tool

Excellent for pocketing center panel on MDF doors. Unique “LA” grind generates extremely smooth bottom finish to reduce sanding required before finishing doors. Can also be used to surface or pocket in solid woods and plastics. Tool does not have plunge and must be ramped into material.

Hw
Fb
Hp
Rp
Part
D
CE
Sh
Z
Rotation
OA
DIA-RTR.20091.7500"0.500"0.750"3RH2.500"
DIA-RTR.40032.0000"0.625"0.750"3RH2.625"

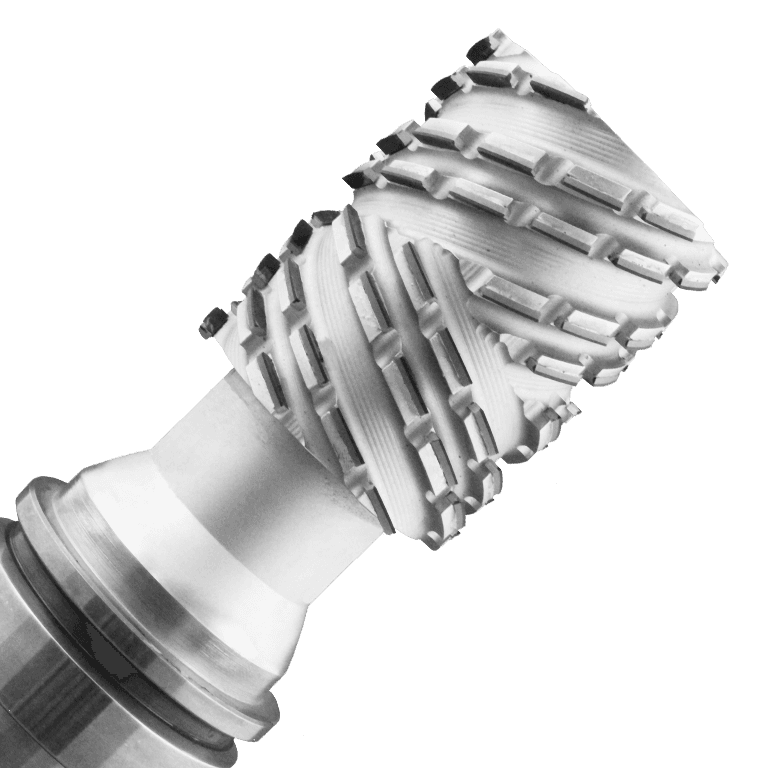

Integrated HiShear
Integrated HiShear

“HI SHEAR” router tool provides excellent perimeter cut quality. Tool geometry allows for minimal corner tearout. PCD edge provides excellent wear resistance in abrasive material. Integrated tool design for maximum tool stability and reduced run out. HSK63F Integrated Core.

Hw
Sw
Fb
Lm
Part
D
CE
UPCUT
Sh
Z
Rotation
OA
R120-050.63F50mm40mm20mmHSK63F2+2RH120mm
R120-060.63F60mm68mm34mmHSK63F2+2RH140mm
R120-061.63F60mm68mm14mmHSK63F2+2RH140mm
R120-062.63F60mm68mm34mmHSK63F3+3RH140mm

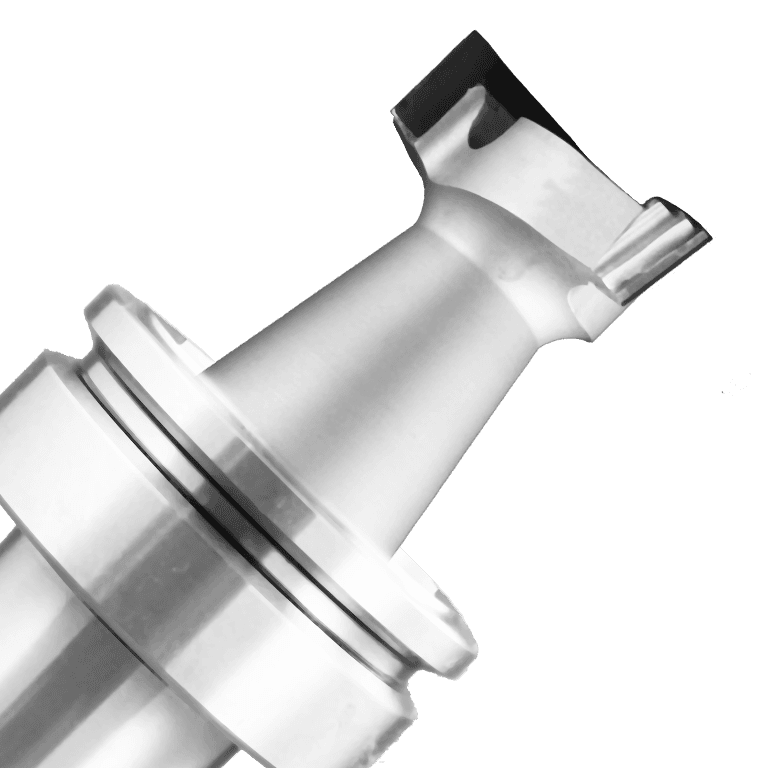

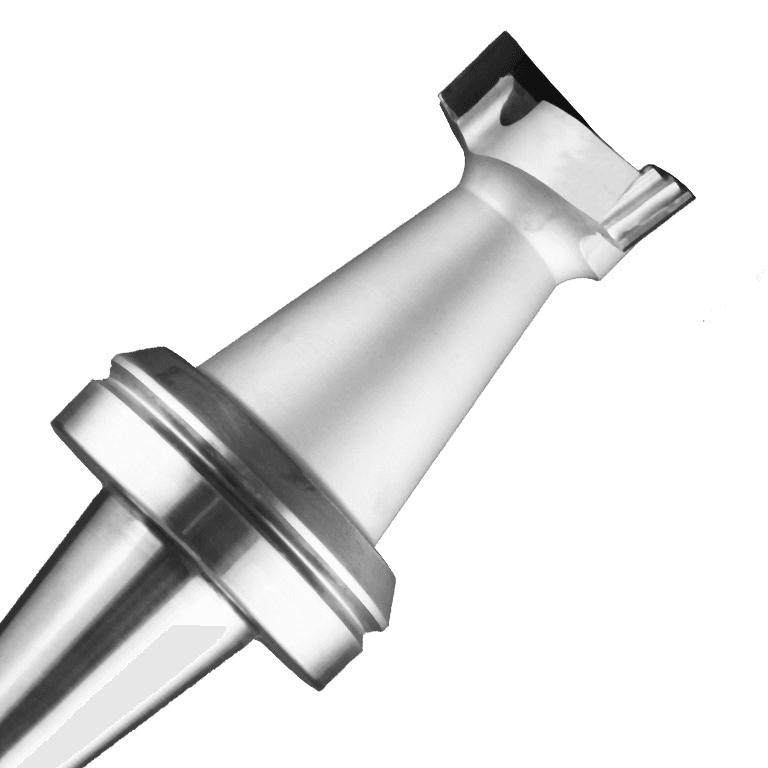

Integrated Plunge Pocketing Tool HSK63F
Integrated Plunge Pocketing Tool HSK63F

Excellent for pocketing centre panel on MDF doors. Unique “LA” grind generates extremely smooth bottom finish to reduce sanding required before finishing doors. Can also be used to surface or pocket in solid woods and plastics. Centre cutting tip allows plunging. Integrated tool design for maximum tool stability and reduced run out.

Hw
Fb
Hp
Rp
Part
D
CE
Sh
Z
Rotation
OA
DIA-RTR.2008.63F1.7500"0.500"HSK63F3+1RH90mm
DIA-RTR.2008.63FL1.7500"0.500"HSK63F3+1RH110mm
DIA-RTR.2008.63TH1.7500"0.500"Thermwood HSK633+1RH4.500"
DIA-RTR.4002.63FL2.0000"14mmHSK63F3+1RH110mm

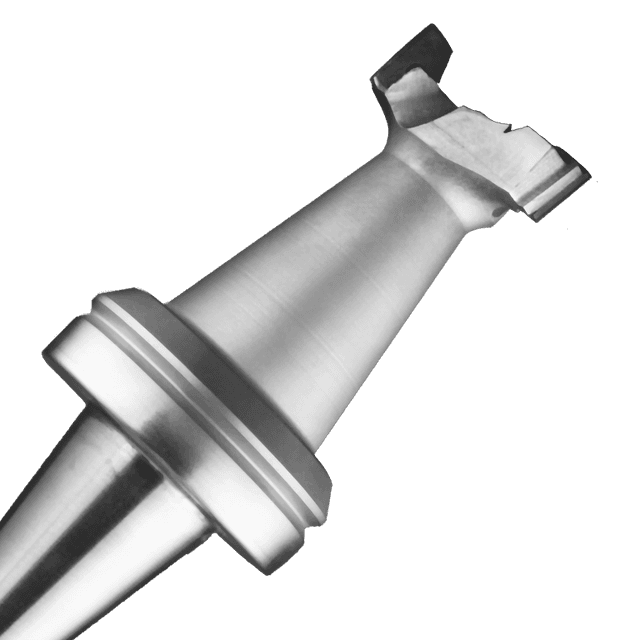

Integrated Plunge Pocketing Tool Thermwood 30
Integrated Plunge Pocketing Tool Thermwood 30

Excellent for pocketing centre panel on MDF doors. Unique “LA” grind generates extremely smooth bottom finish to reduce sanding required before finishing doors. Can also be used to surface or pocket in solid woods and plastics. Centre cutting tip allows plunging. Integrated tool design for maximum tool stability and reduced run out.

Hw
Fb
Hp
Rp
Part
D
CE
Sh
Z
Rotation
OA
DIA-RTR.2008.TH301.7500"0.500"Thermwood 303+1RH3.500"
Integrated Ramp In Pocketing Tool Thermwood 30
Integrated Ramp In Pocketing Tool Thermwood 30

Excellent for pocketing centre panel on MDF doors. Unique “LA” grind generates extremely smooth bottom finish to reduce sanding required before finishing doors. Can also be used to surface or pocket in solid woods and plastics. Tool does not have plunge and must be ramped into material. Integrated tool design for maximum tool stability and reduced run out.

Hw
Fb
Hp
Rp
Part
D
CE
Sh
Z
Rotation
OA
DIA-RTR.2009.TH301.7500"0.500"Thermwood 303+1RH3.500"

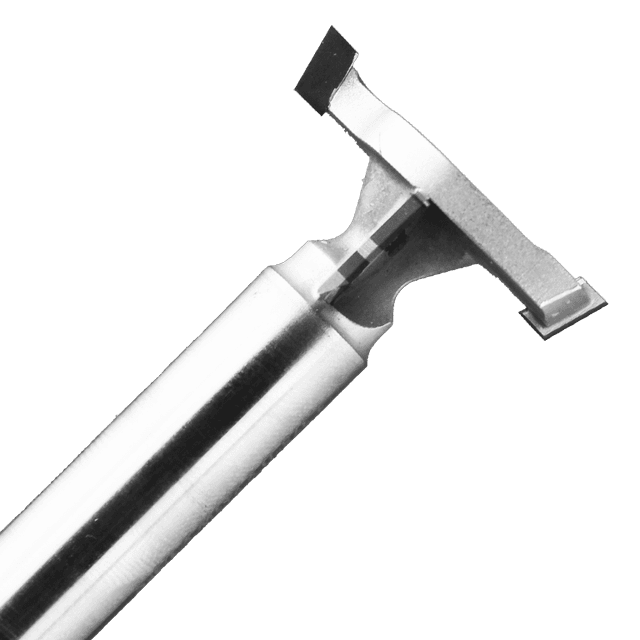

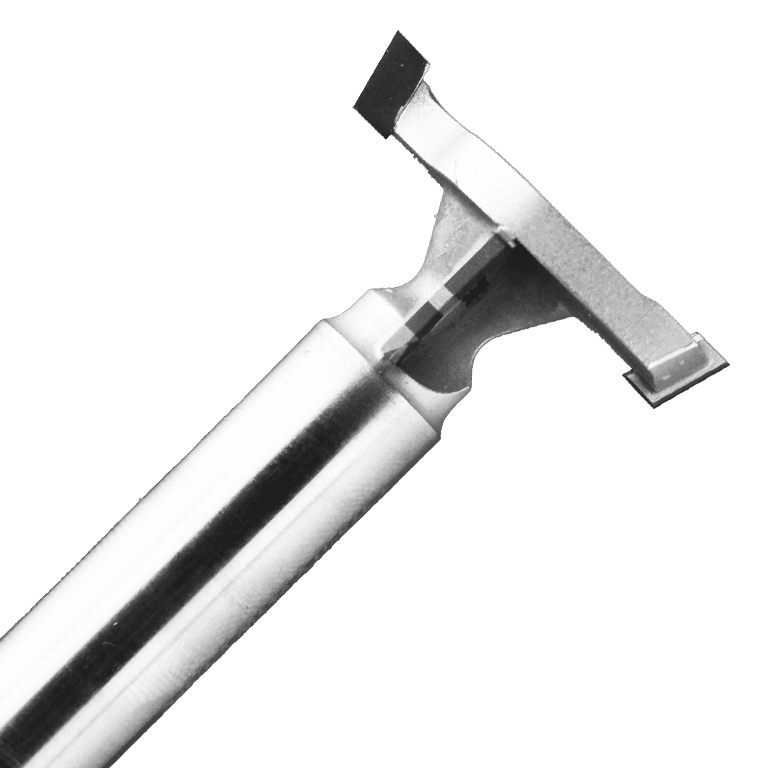

T Slot Tool
T Slot Tool

For machining T-slots in MDF. Built to accept standard hanger brackets. Not designed to accept aluminum insert.

Fb
Part
D
b1
b2
Sh
Z
Rotation
OA
DIA-RTR.14471.3750"0.375"0.250"0.500"2+1RH2.375"
DIA-RTR.1447.LH1.3750"0.375"0.250"0.500"2+1LH2.375"

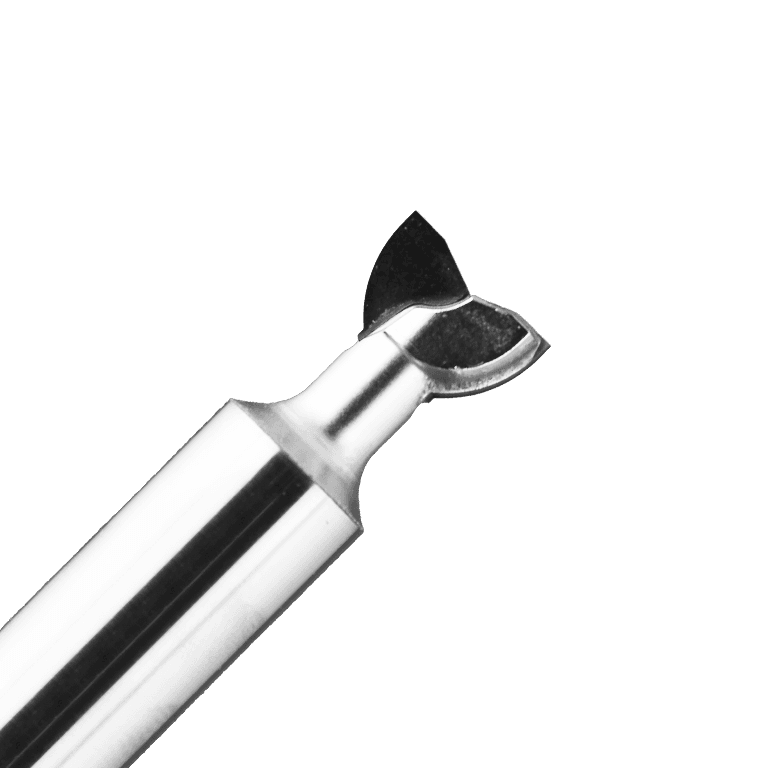

Dovetail Tool CNC
Dovetail Tool CNC

Dovetail tool allows for use on CNC machines. For use with material thicknesses of 3/8” to 1/2”. Mating dovetail joint is cut with 1/4” straight spiral.

Hw
Fb
Pl
Hp
Part
D
Ds
b1
r
Sh
Z
Rotation
OA
DIA-RTR.DT1015mm10mm8.99mm0.125"0.500"2RH2.000"
Dovetail Tool OMEC PCD
Dovetail Tool OMEC PCD

Dovetail tool for use on OMEC dovetail machines. PCD cutting edge provides superior life over carbide. 3 wing chipbreaker helps eliminate tearing and furring in plywood and solid wood.

Hw
Fb
Pl
Hp
Part
D
Ds
b1
Sh
Z
Rotation
OA
DIA-RTR.DT1214mm11.3mm7.7mm14mm3RH60mm
DIA-RTR.DT1314mm10.6mm9.8mm14mm3RH60mm
Dovetail Tool Dodds
Dovetail Tool Dodds

Dovetail tool for use on Dodds dovetail machines. Diamond cutting edge provides 50-100 times the life in MDF, plywood, and most hardwoods. 5/16" - 24 Thread

Hw
Fb
Pl
Hp
Part
D
Ds
b1
b2
Sh
Z
Rotation
OA
DIA-RTR.DTD.312L14mm11mm0.349"1.157"0.3125"2LH2.000"
DIA-RTR.DTD.312R14mm11mm0.349"1.157"0.3125"2RH2.000"
DIA-RTR.DTD.375L14mm11mm0.418"1.250"0.3125"2LH2.000"
DIA-RTR.DTD.375R14mm11mm0.418"1.250"0.3125"2RH2.000"
Dovetail Tool Mereen Johnson
Dovetail Tool Mereen Johnson

Dovetail tool for use on Mereen Johnson dovetail machines. Diamond cutting edge provides 50-100 times the life in MDF, plywood and most hardwoods. Unique chipbreaker design helps reduce tearing in plywoods. 5/8" - 18 Thread

Hw
Fb
Pl
Hp
Part
D
Ds
b1
b2
Sh
Z
Rotation
OA
DIA-RTR.DTD.4213L0.5570"0.427"11mm38mm0.625"3LH2.125"
DIA-RTR.DTD.4213R0.5570"0.427"11mm38mm0.625"3RH2.125"
Dovetail Tool Cantek
Dovetail Tool Cantek

Dovetail tool for use on Cantek dovetail machines. Diamond cutting edge provides 50-100 times the life in MDF, plywood, and most hardwoods.

Hw
Fb
Pl
Hp
Part
D
b1
a1
Sh
Z
Rotation
OA
DIA-RTR.DTD.6691R14.8mm17mm20°12mm1RH60mm
Tenon Tool
Tenon Tool

Tenon tool for cabinet door mitre applications. PCD cutting tool provides excellent wear resistance in abrasive materials.

Hw
Fb
Hp
Rp
Part
D
Sh
OA
Z
Rotation
b1
b2
Ds
DIA-RTR.MD561mm0.750"117mm3+9RH0.500"65mm2.000"
DIA-RTR.MD875mm0.750"125mm3+9RH0.500"60mm2.500"

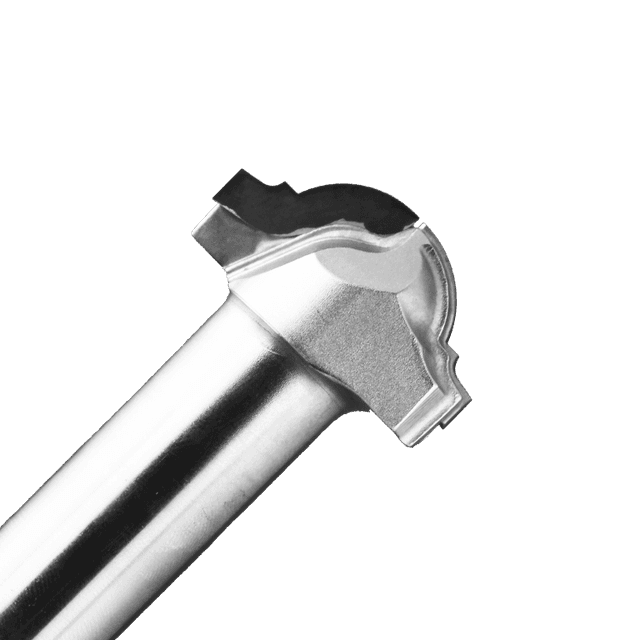

MDF Door Tool 16C
MDF Door Tool 16C

PCD Diamond router bit for applying a decorative edge to MDF Doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken.

Hw
Fb
Hp
Rp
Part
D
Ds
b1
Sh
Z
Rotation
OA
DIA-RTR.016C1.2600"0.500"0.355"0.750"2RH2.750"
MDF Door Tool 16D
MDF Door Tool 16D

PCD Diamond router bit for applying a decorative edge to MDF Doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken.

Hw
Fb
Hp
Rp
Part
D
Ds
b1
b2
Sh
Z
Rotation
OA
DIA-RTR.016D1.2480"0.500"0.402"0.315"0.750"2RH2.750"
MDF Door Tool 16E
MDF Door Tool 16E

PCD Diamond router bit for applying a decorative edge to MDF Doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken.

Hw
Fb
Hp
Rp
Part
D
Ds
b1
b2
Sh
Z
Rotation
OA
DIA-RTR.016E1.9880"0.375"0.320"0.059"0.750"2RH2.750"

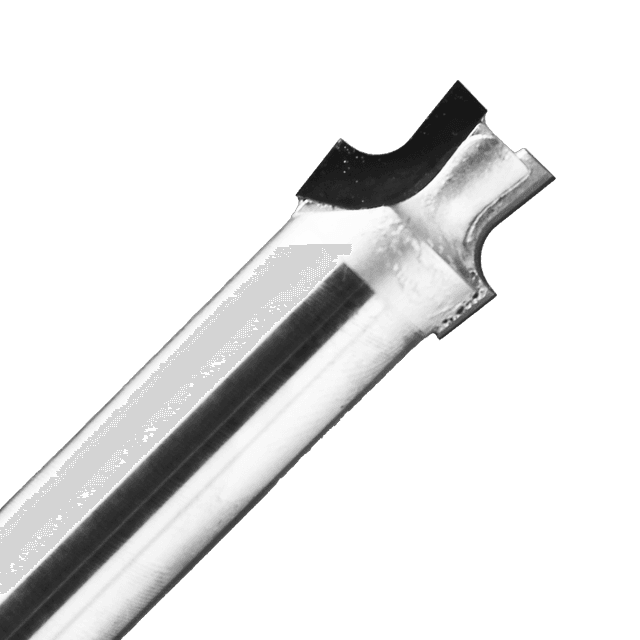

MDF Door Tool 16F
MDF Door Tool 16F

PCD Diamond router bit for routing finger pull groove in cabinet doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken.

Hw
Fb
Hp
Rp
Part
D
Ds
r
Sh
Z
Rotation
OA
DIA-RTR.016F0.7500"0.370"0.531"0.750"2RH3.000"
MDF Door Tool 26A
MDF Door Tool 26A

PCD Diamond router bit for applying a decorative inside profile to MDF doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken.

Hw
Fb
Hp
Rp
Part
D
b1
a1
a2
Sh
Z
Rotation
OA
DIA-RTR.26A26mm13mm45°90°0.750"1RH2.750"
DIA-RTR.26G68mm33mm44.75°90.50°0.750"1RH3.750"
MDF Door Tool 26B
MDF Door Tool 26B

PCD Diamond router bit for applying a decorative inside profile to MDF doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken.

Hw
Fb
Hp
Rp
Part
D
r
Sh
Z
Rotation
OA
DIA-RTR.26B12mm2mm0.750"1RH2.750"
MDF Door Tool 26C
MDF Door Tool 26C

PCD Diamond router bit for applying a decorative inside profile to MDF doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken.

Hw
Fb
Hp
Rp
Part
D
Ds
b1
r
Sh
Z
Rotation
OA
DIA-RTR.26C25mm3mm10mm4mm0.750"1RH2.750"
MDF Door Tool 26D
MDF Door Tool 26D

PCD Diamond router bit for applying a decorative inside profile to MDF doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken.

Hw
Fb
Hp
Rp
Part
D
Sh
OA
Z
Rotation
b1
r
Ds
DIA-RTR.26D19mm0.750"2.625"1RH6mm6.1mm3mm
MDF Door Tool 26E
MDF Door Tool 26E

PCD Diamond router bit for applying a decorative inside profile to MDF doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken.

Hw
Fb
Hp
Rp
Part
D
Ds
b1
r
Sh
Z
Rotation
OA
DIA-RTR.26E25mm3mm8mm5mm0.750"1RH2.750"
MDF Door Tool 26F
MDF Door Tool 26F

PCD Diamond router bit for applying a decorative inside profile to MDF doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken.

Hw
Fb
Hp
Rp
Part
D
Ds
b1
a1
a2
Sh
Z
Rotation
OA
DIA-RTR.26F18mm0.5mm15mm60°60°0.750"1RH3.000"
DIA-RTR.26H20mm2.0mm0.855"67.5°45°0.750"1RH3.000"
DIA-RTR.26I15mm2.0mm0.955"75°30°0.750"1RH3.375"
MDF Door Tool 30
MDF Door Tool 30

PCD Diamond router bit for applying a decorative edge profiles on MDF doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken. Tool has upshear to provide optimum edge qualty MDF. Tools Cut .013” (0.33mm) into the spoilboard.

Hw
Fb
Hp
Rp

6 Products

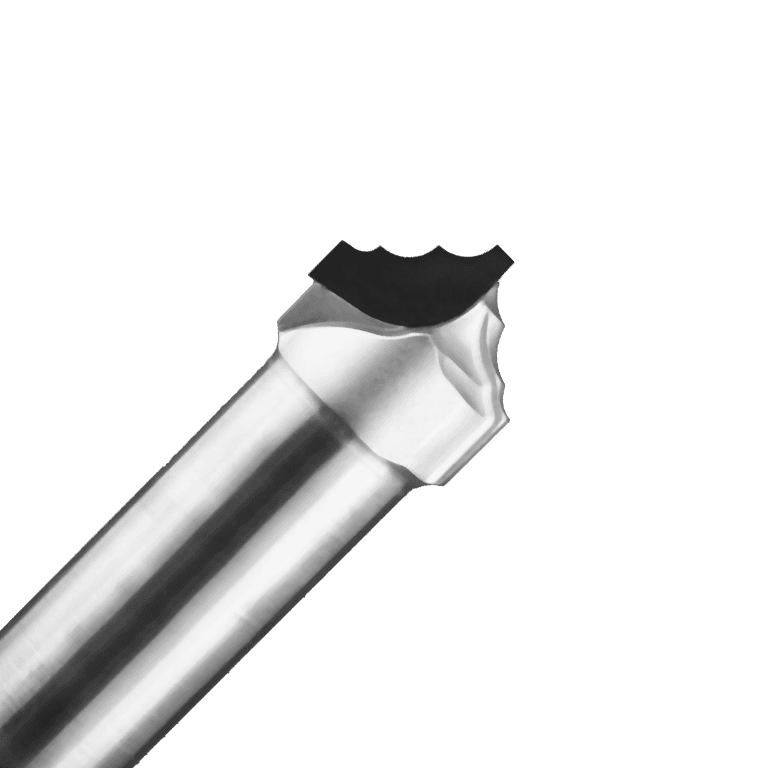

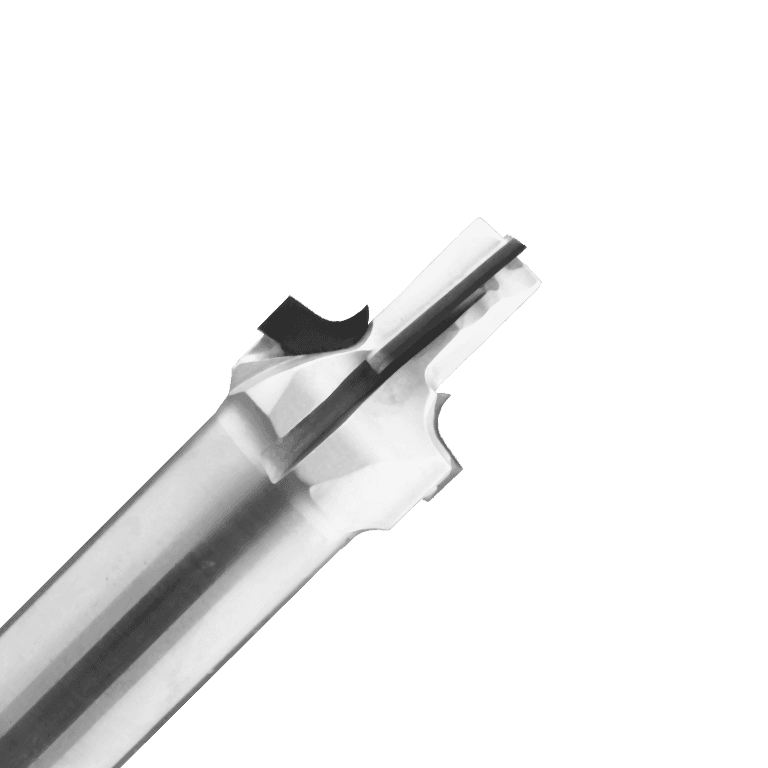

MDF Door Tool 40A
MDF Door Tool 40A

PCD Diamond router bit for applying a decorative raised panel profile to MDF doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken.

Hw
Fb
Hp
Rp
Part
D
Ds
b1
Sh
Z
Rotation
OA
DIA-RTR.40A42mm4mm10mm0.750"2RH2.750"

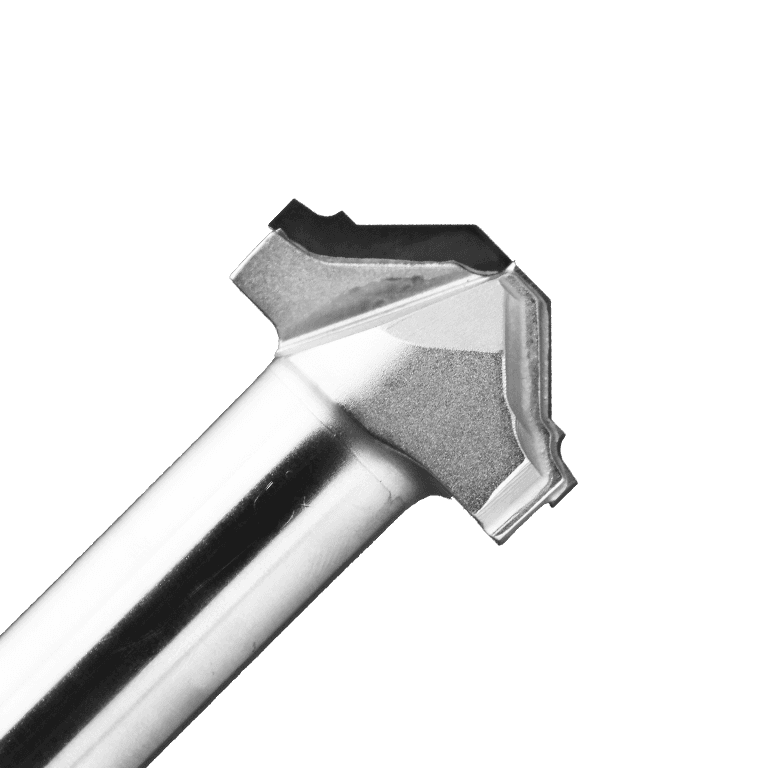

MDF Door Tool 40B
MDF Door Tool 40B

PCD Diamond router bit for applying a decorative raised panel profile to MDF doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken.

Hw
Fb
Hp
Rp
Part
D
Ds
b1
Sh
Z
Rotation
OA
DIA-RTR.40B38mm0.369"10mm0.750"2RH2.750"

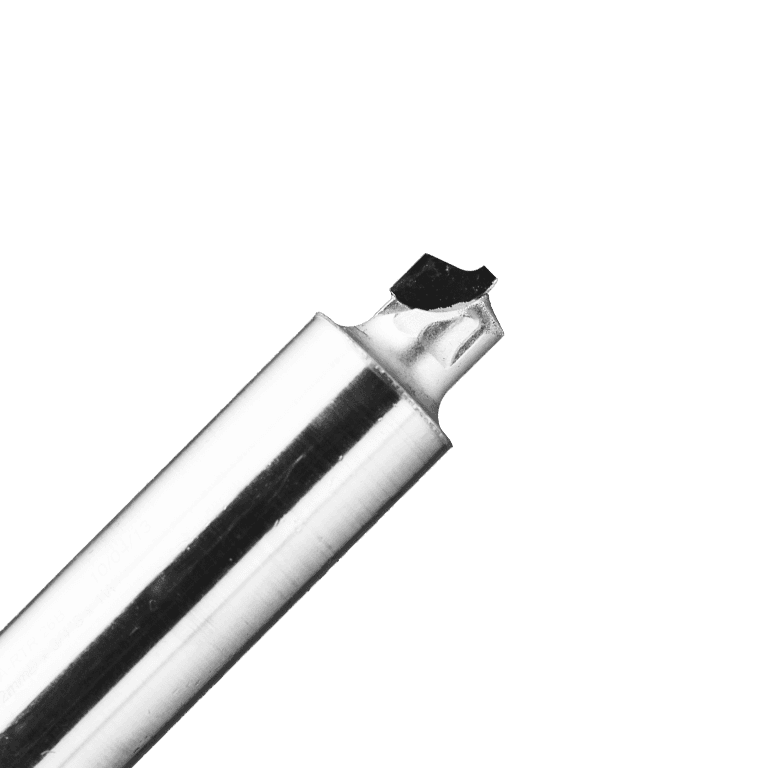

MDF Door Tool 40C
MDF Door Tool 40C

PCD Diamond router bit for applying a decorative inside profile to MDF doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken.

Hw
Fb
Hp
Rp
Part
D
Ds
b1
r
Sh
Z
Rotation
OA
DIA-RTR.40C32mm10mm10mm4mm0.750"2RH2.750"

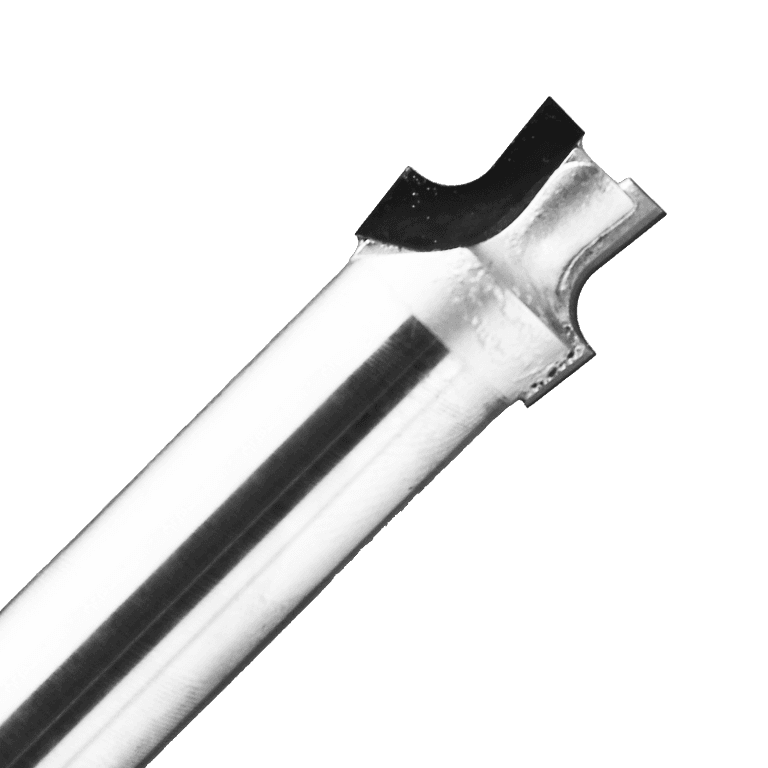

MDF Door Tool 40D
MDF Door Tool 40D

PCD Diamond router bit for applying a decorative raised panel profile to MDF doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken.

Hw
Fb
Hp
Rp
Part
D
b1
r
Sh
Z
Rotation
OA
DIA-RTR.40D38mm10mm12mm0.750"2RH2.750"

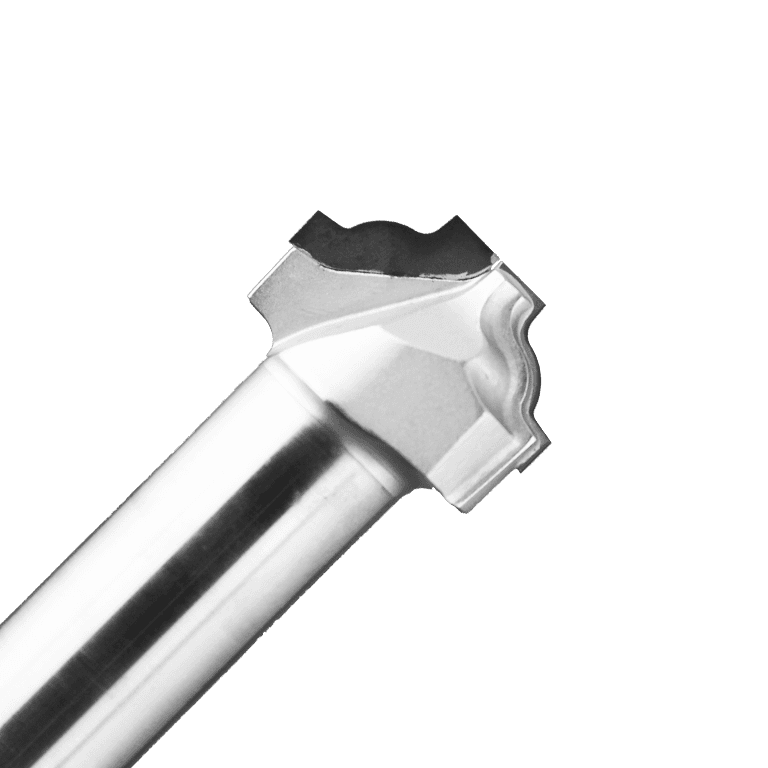

MDF Door Tool 40E
MDF Door Tool 40E

PCD Diamond router bit for applying a decorative raised panel profile to MDF doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken.

Hw
Fb
Hp
Rp
Part
D
b1
a1
Sh
Z
Rotation
OA
DIA-RTR.40E24mm4mm20°0.750"2RH2.750"

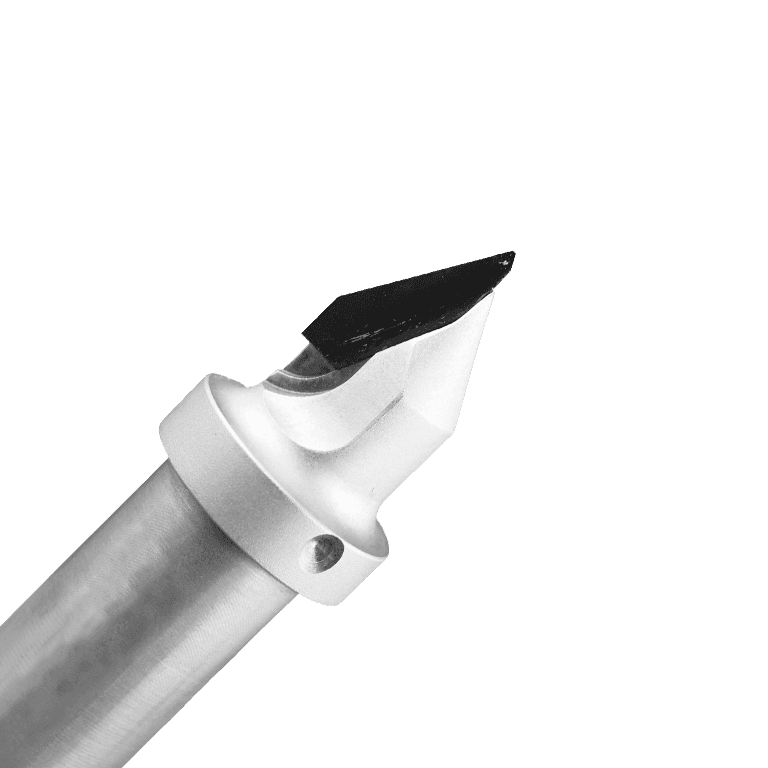

MDF Door Tool 50A
MDF Door Tool 50A

PCD Diamond router bit for applying a decorative raised panel profile to MDF doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken.

Hw
Fb
Hp
Rp
Part
D
b1
r
Sh
Z
Rotation
OA
DIA-RTR.50A50mm10mm30.7mm0.750"2RH2.750"

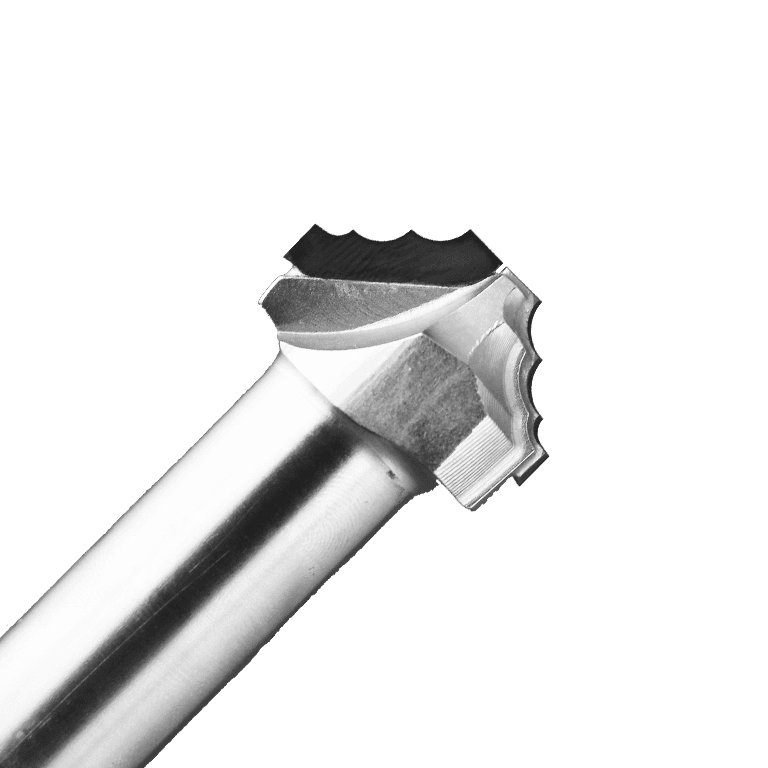

MDF Door Tool 50B
MDF Door Tool 50B

PCD Diamond router bit for applying a decorative raised panel profile to MDF doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken.

Hw
Fb
Hp
Rp
Part
D
b1
r
Sh
Z
Rotation
OA
DIA-RTR.50B50mm10mm17.4mm0.750"2RH2.750"

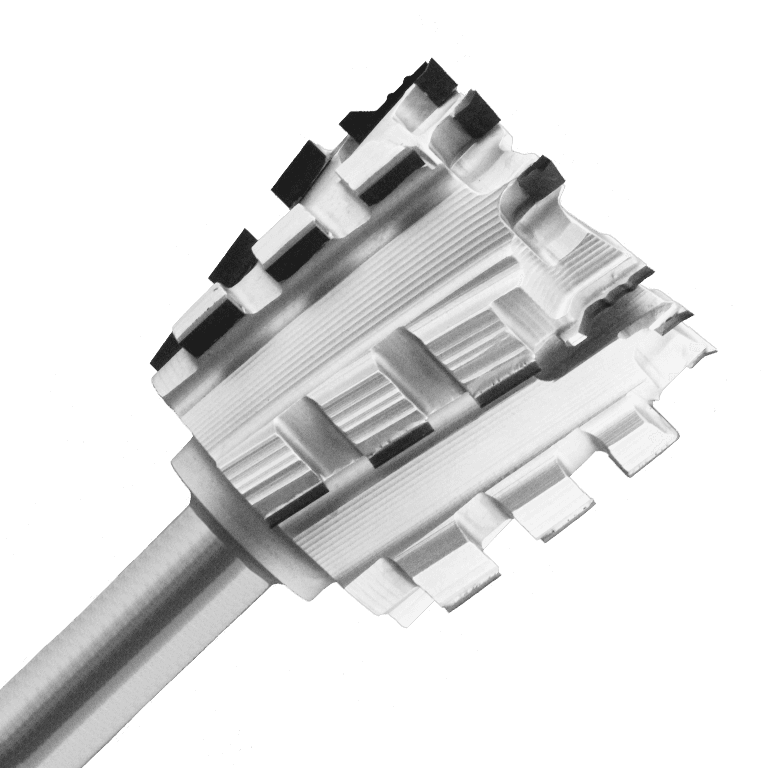

MDF Door Tool 50C
MDF Door Tool 50C

PCD Diamond router bit for applying a decorative raised panel profile to MDF doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken.

Hw
Fb
Hp
Rp
Part
D
b1
a1
Sh
Z
Rotation
OA
DIA-RTR.50C50mm10mm20°0.750"2RH2.750"
Drill
Drill

PCD Diamond router bit for use on machines that route hinges on doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken.

Hw
Fb
Hp
Rp
Part
D
CE
b1
Sh
Z
Rotation
OA
FX20016-DIA1.0000"0.400"2.000"0.500"2RH6.0625"
Boring Drill
Boring Drill

PCD Diamond router bit for use on machines that route hinges on doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken.

Hw
Fb
Hp
Rp
Part
D
CE
b1
Sh
Z
Rotation
OA
FX812C34-DIA2.2500"1.200"3.615"0.500"3RH5.970"
Hinge Drill
Hinge Drill

PCD Diamond router bit for use on machines that route hinges on doors. PCD diamond will outlast conventional carbide tools 50 to 100 times when used on the correct material.

Hw
Fb
Hp
Rp
Part
D
Ds
CE
Z
Rotation
OA
LR89003-PCD0.5000"0.250"10mm2RH23mm
LR89003-PCD.L0.5000"0.250"10mm2LH23mm
LR89008-PCD0.7500"0.250"10mm2RH23mm
LR89010-PCD1.2500"0.250"9mm2RH13mm
LR89011-PCD1.2500"0.3125"9mm2RH13mm
