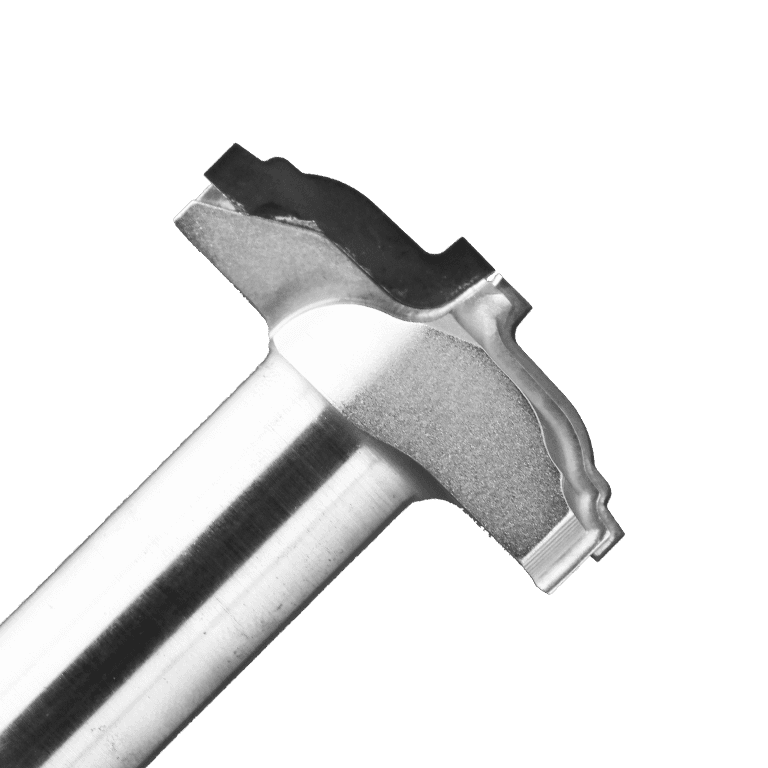

MDF Door Tool 16E
PCD Diamond router bit for applying a decorative edge to MDF Doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken.
Material
Hw
Fb
Hp
Rp
Machine Types
CNC Router
Industries
MDF Door Mfg.

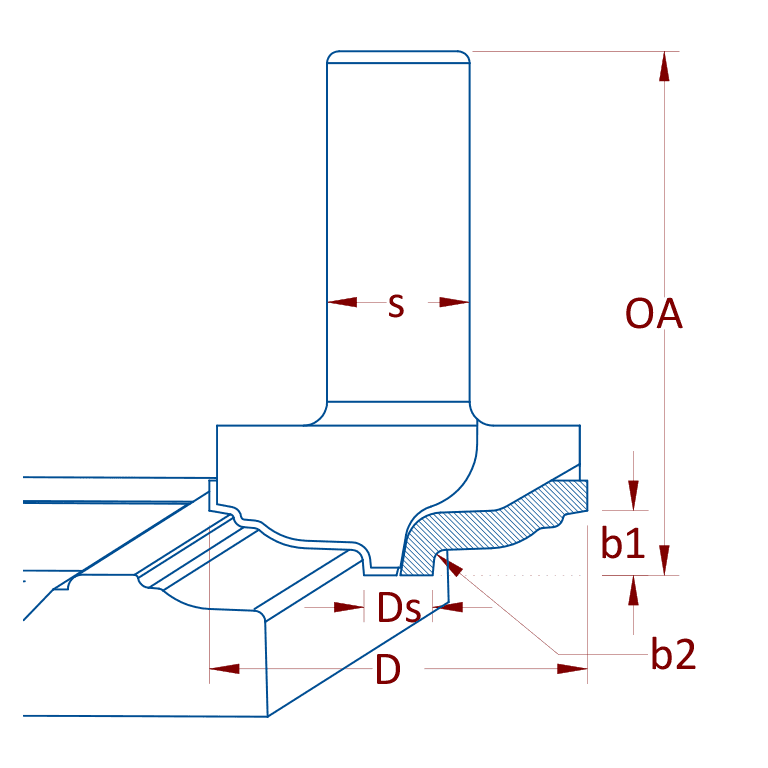

| Part | D | Sh | OA | Z | Rotation | b1 | b2 | Ds |
|---|---|---|---|---|---|---|---|---|
| DIA-RTR.016E | 1.9880" | 0.750" | 2.750" | 2 | RH | 0.320" | 0.059" | 0.375" |
