FX812C34-DIA

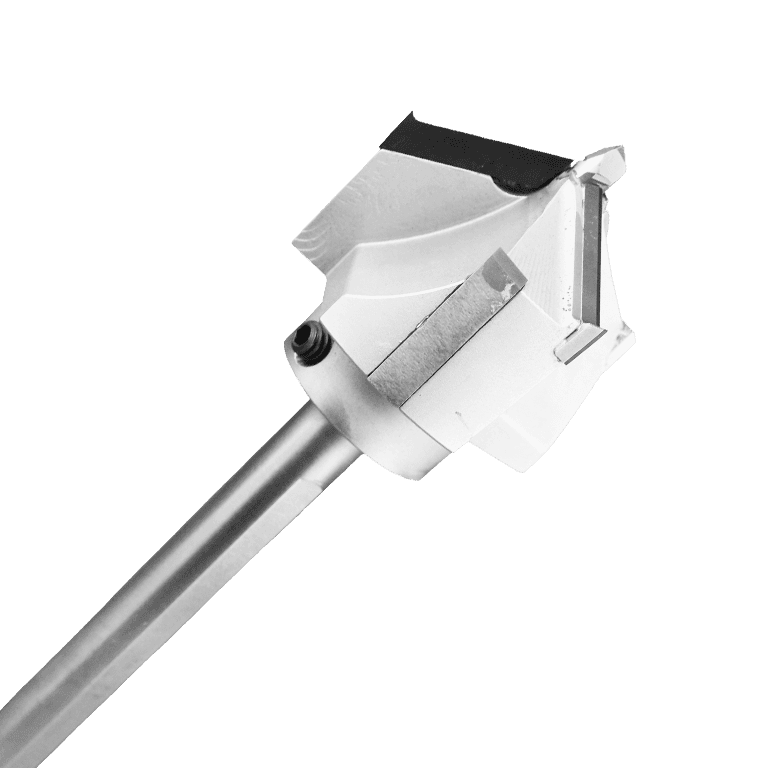

PCD Diamond router bit for use on machines that route hinges on doors. PCD will outlast carbide 50 to 100 times on MDF when care is taken.

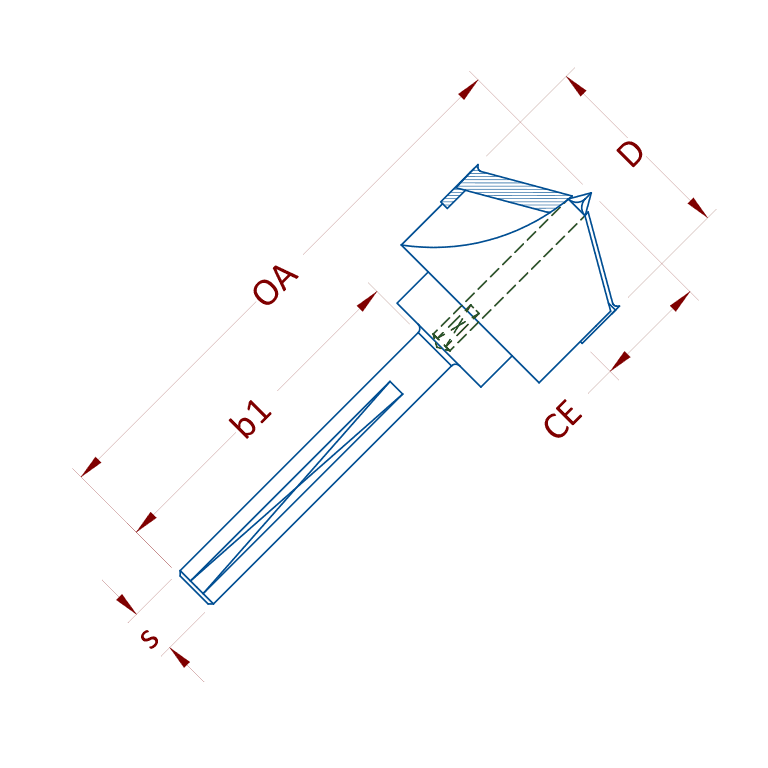

Diameter (D) | 2.2500" |
Cutting Edge (CE) | 1.200" |
Shank (Sh) | 0.500" |
Overall Length (OA) | 5.970" |
Number of Wings/Flutes/Teeth (Z) | 3 |
Material (Material) | DP |
Rotation (Rotation) | RH |
Dimension Variable 1 (b1) | 3.615" |
