R107-010

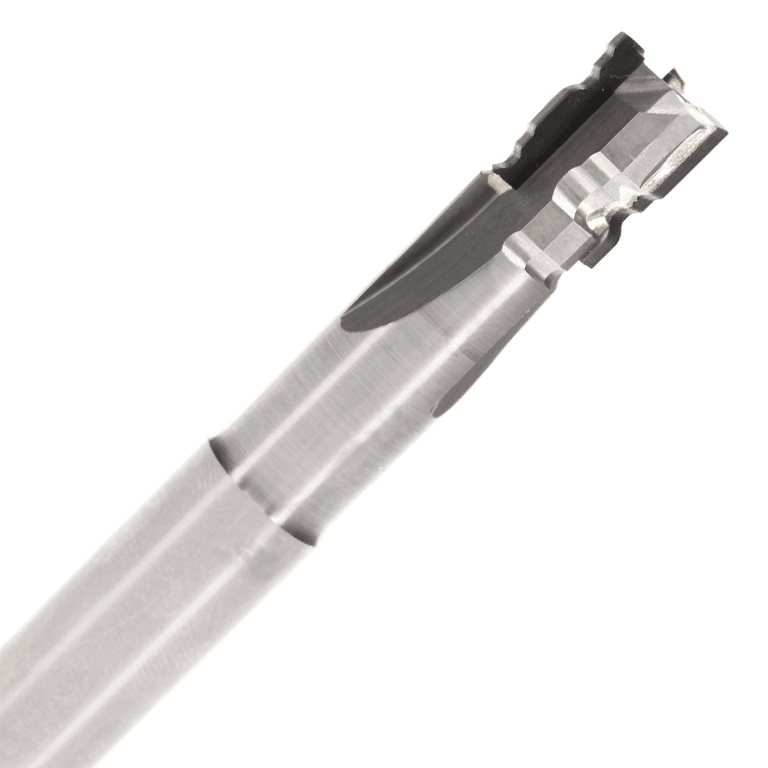

PCD cutting tool provides excellent wear resistance in abrasive materials. Designed for routing phenolic and other fiber reinforced plastics, unique style chip-breakers help eliminate harmonics in routing.

R107-010 1
R107-010 2

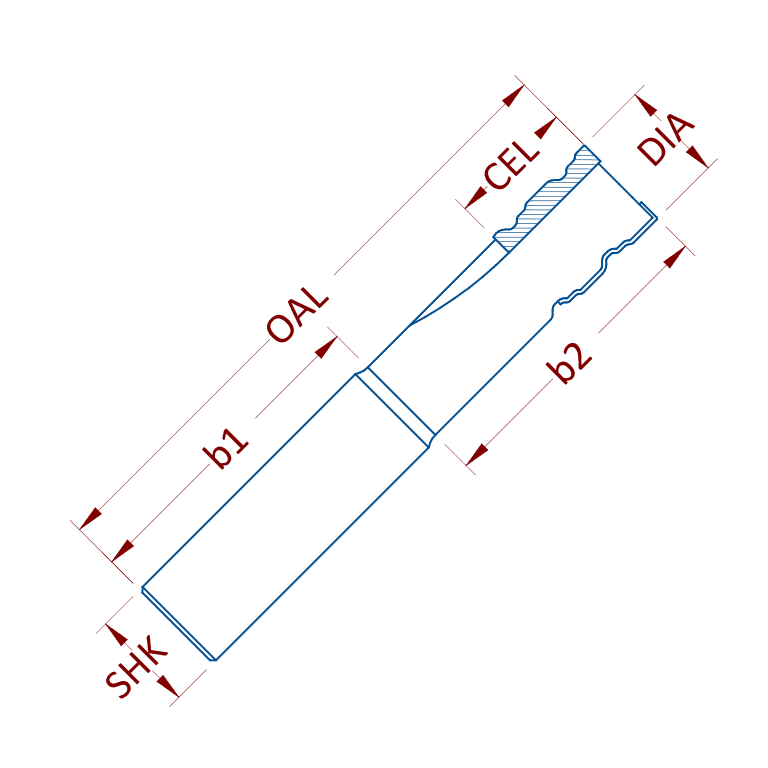

Diameter (D)
0.5000"
Cutting Edge (CE)
0.625"
Shank (Sh)
0.500"
Overall Length (OA)
3.000"
Number of Wings/Flutes/Teeth (Z)
3
Material (Material)
DP
Rotation (Rotation)
RH
Dimension Variable 1 (b1)
1.500"
Dimension Variable 2 (b2)
1.500"
