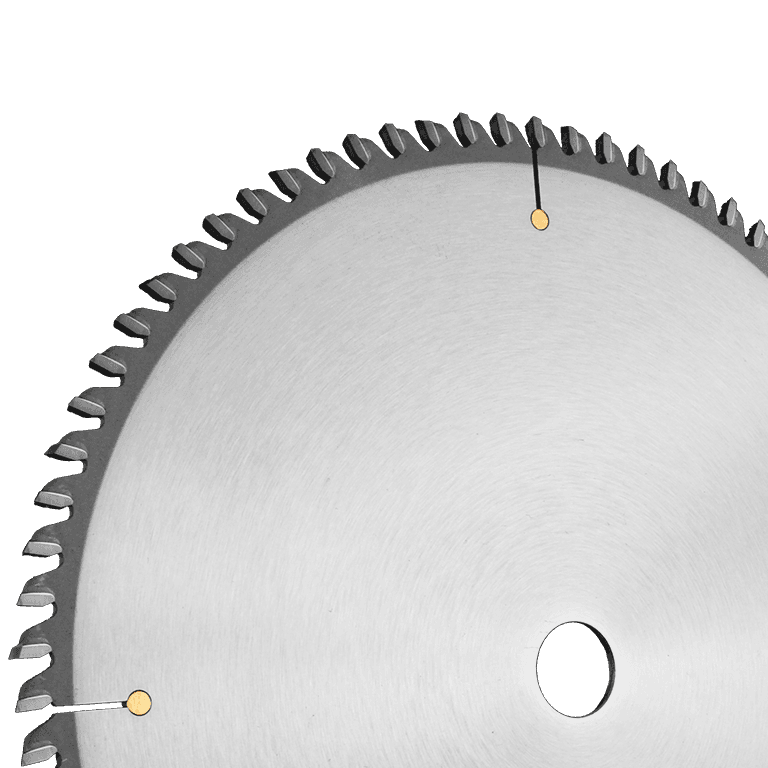

Thin Kerf TCG Saw Blades
Carbide tipped thin kerf saws. Used on hard plastics such as acrylics and vinyl extrusion. Thin kerf saves material and requires less horsepower to cut.
Pl
Hp
Sp
Pb
Part | D | Z | d | PT | K | HK | Pinholes | Line |
---|---|---|---|---|---|---|---|---|
20080600TK | 8" | 60 | 1.000" | 1.6mm | 2.2mm | 5º | Industrial | |
20100800TK | 10" | 80 | 0.625" | 1.6mm | 2.2mm | 5º | Industrial | |
20101000TK | 10" | 100 | 1.000" | 1.6mm | 2.2mm | 5º | Industrial | |
20121001TK | 12" | 100 | 1.000" | 1.6mm | 2.2mm | 5º | Industrial | |
20141201TK | 14" | 120 | 1.000" | 1.8mm | 2.4mm | 5º | Industrial |

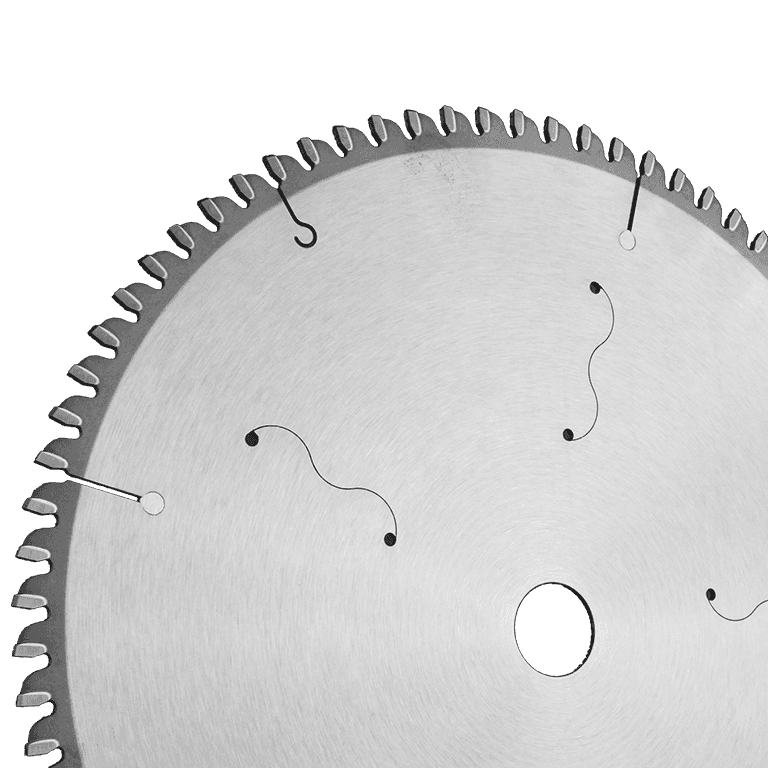

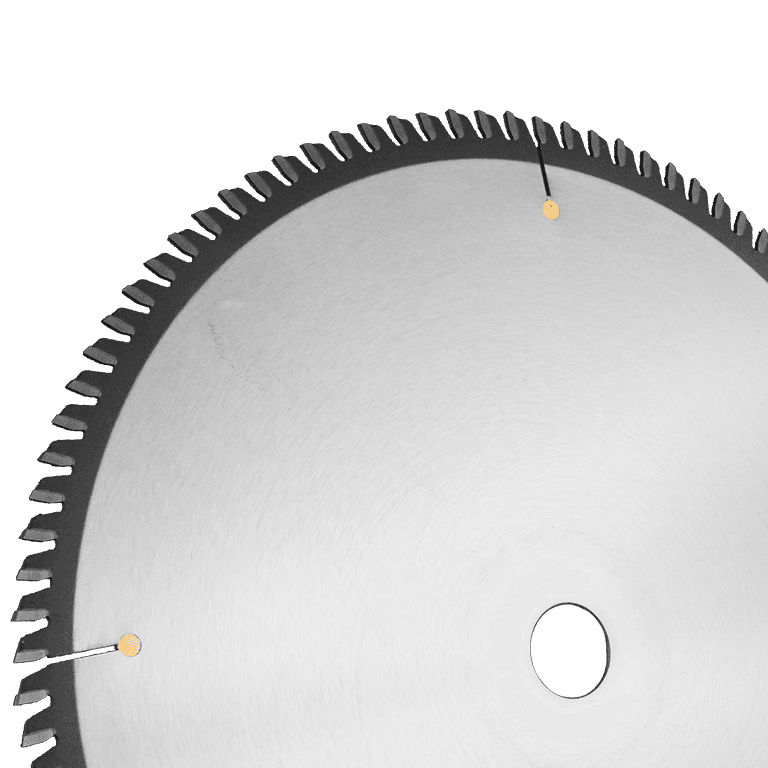

Thin Kerf ATB Saw Blades
Carbide tipped thin kerf saws. Used on solid wood veneered plywood, thin kerf saves material and requires less horsepower to cut.
Hw
Pl
Pb
Part | D | Z | d | PT | K | HK | Pinholes | Line |
---|---|---|---|---|---|---|---|---|
21080600TK | 8" | 60 | 0.625" | 1.6mm | 2.2mm | 5º | Industrial | |
21100800TK | 10" | 80 | 0.625" | 1.6mm | 2.2mm | 5º | Industrial | |
21101000TK | 10" | 100 | 0.625" | 1.6mm | 2.2mm | 5º | Industrial | |
21121001TK | 12" | 100 | 1.000" | 1.6mm | 2.2mm | 5º | Industrial | |
21141201TK | 14" | 120 | 1.000" | 1.8mm | 2.4mm | 5º | Industrial |

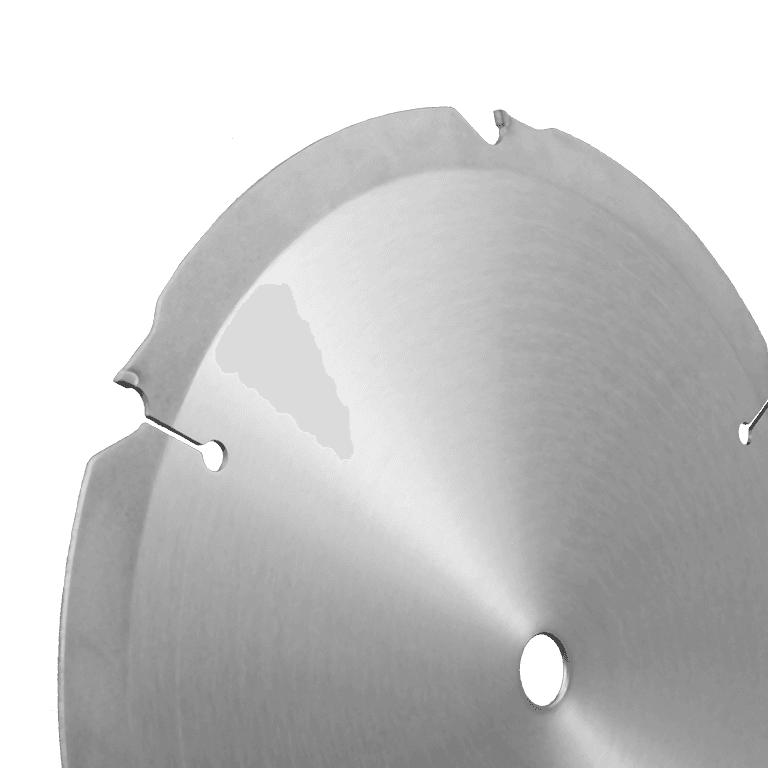

Cement Board Saw Blades
PCD tipped saw blades for cutting cement and composite boards. Great for abrasive material that rapidly wears out conventional carbide saws. PCD Diamond tips provide superior wear resistance.
Pl
Hp
Part | D | Z | d | PT | K | HK | Pinholes | Line |
---|---|---|---|---|---|---|---|---|
50055040-DIA | 5.5” | 4 | 0.625" | 1.6mm | 2.2mm | 10º | PCD | |
50072040-DIA | 7.25” | 4 | 0.625" | 1.6mm | 2.2mm | 10º | PCD | |
50080060-DIA | 8” | 6 | 0.625" | 1.6mm | 2.2mm | 10º | PCD | |
50100060-DIA | 10” | 6 | 0.625" | 1.6mm | 2.2mm | 10º | PCD | |
50120081-DIA | 12” | 8 | 1.000" | 1.6mm | 2.2mm | 10º | PCD |
