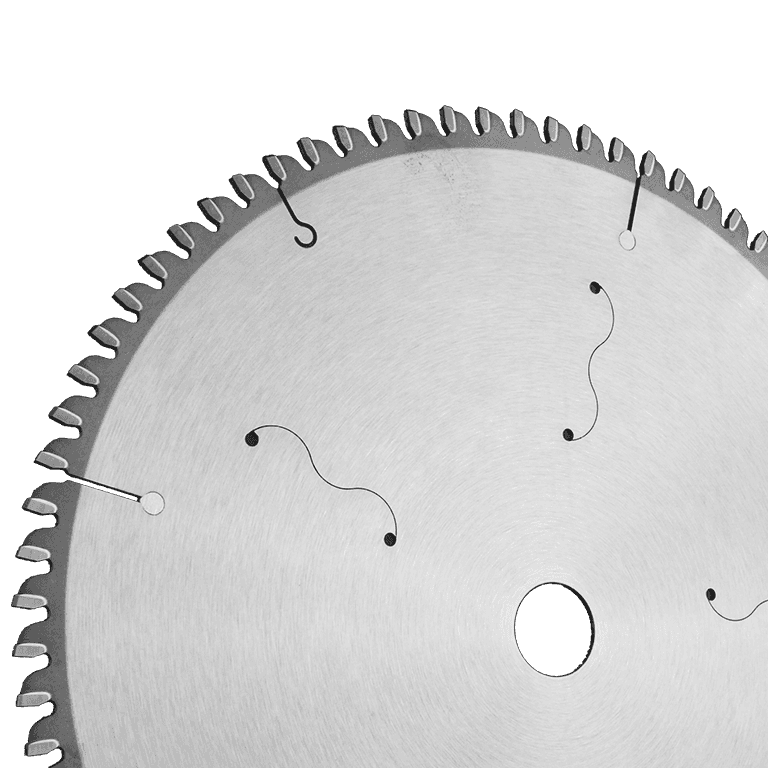

Non Ferrous Mitre Saw Blades
Carbide tipped non ferrous saw blades. For cutting various shapes of aluminum and plastics. Teeth with higher tooth counts for thin sections of aluminum.
Hp
Sp
Al
Machine Types
Crosscut SawSpecialty
Industries
Sign making & Clad paneling
Advanced Composite Materials

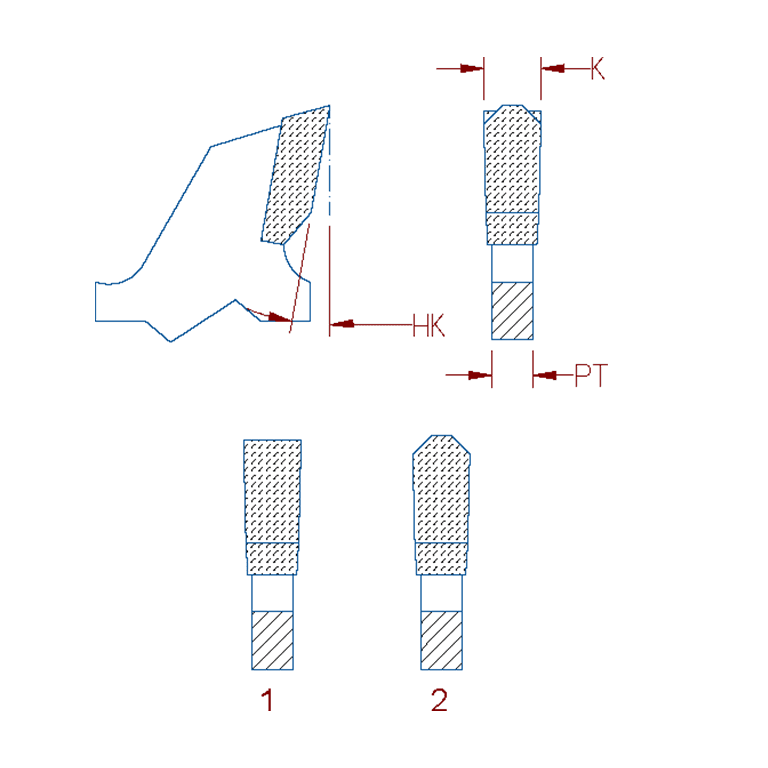

| Part | D | Z | d | PT | K | HK | Pinholes | Line |
|---|---|---|---|---|---|---|---|---|
| 28080480 | 200mm | 48 | 0.625" | 2.2mm | 2.8mm | -5º | Industrial | |
| 28080600 | 200mm | 60 | 0.625" | 2.2mm | 2.8mm | -5º | Industrial | |
| 28090480 | 9" | 48 | 0.625" | 2.2mm | 2.8mm | -5º | Industrial | |
| 28090600 | 9" | 60 | 0.625" | 2.2mm | 2.8mm | -5º | Industrial | |
| 28100600 | 250mm | 60 | 0.625" | 2.6mm | 3.2mm | -5º | Industrial | |
| 28100800 | 250mm | 80 | 0.625" | 2.6mm | 3.2mm | -5º | Industrial | |
| 28100800T | 10" | 80 | 0.625" | 2.2mm | 2.8mm | -5º | Industrial | |
| 28110724 | 275mm | 72 | 40mm | 2.6mm | 3.2mm | -5º | Industrial | |
| 28110904 | 275mm | 90 | 40mm | 2.6mm | 3.2mm | -5º | Industrial | |
| 28120601 | 300mm | 60 | 1.000" | 2.6mm | 3.2mm | -5º | Industrial | |
| 28120801 * | 300mm | 80 | 1.000" | 2.5mm | 3.2mm | -5º | Industrial | |
| 28121001 | 300mm | 100 | 1.000" | 2.5mm | 3.2mm | -5º | Industrial | |
| 28140601 | 350mm | 60 | 1.000" | 3.0mm | 3.8mm | -5º | Industrial | |
| 28140801 | 350mm | 80 | 1.000" | 3.2mm | 3.8mm | -5º | Industrial | |
| 28141001 | 350mm | 100 | 1.000" | 3.2mm | 3.8mm | -5º | Industrial | |
| 28160801 | 400mm | 80 | 1.000" | 3.2mm | 3.8mm | -5º | Industrial | |
| 28161001 | 400mm | 100 | 1.000" | 3.2mm | 3.8mm | -5º | Industrial | |
| 28161201 | 400mm | 120 | 1.000" | 3.2mm | 3.8mm | -5º | Industrial | |
| 28180801 | 450mm | 80 | 1.000" | 3.4mm | 4.0mm | -5º | Industrial | |
| 28181001 | 450mm | 100 | 1.000" | 3.4mm | 4.0mm | -5º | Industrial | |
| 28181001I | 18" | 100 | 1.000" | 3.4mm | 4.0mm | -5º | Industrial | |
| 28181201 | 450mm | 120 | 1.000" | 3.4mm | 4.0mm | -5º | Industrial | |
| 28201001 | 500mm | 100 | 1.000" | 3.4mm | 4.0mm | -5º | Industrial | |
| 28201001I | 20" | 100 | 1.000" | 3.4mm | 4.0mm | -5º | Industrial | |
| 28201201 | 500mm | 120 | 1.000" | 3.4mm | 4.0mm | -5º | Industrial | |
| 28201201I | 20" | 120 | 1.000" | 3.4mm | 4.0mm | -5º | Industrial | |
| 28221201 | 550mm | 120 | 1.000" | 3.6mm | 4.2mm | -5º | Industrial | |
| 28221201I | 22" | 120 | 1.000" | 3.6mm | 4.2mm | -5º | Industrial |
