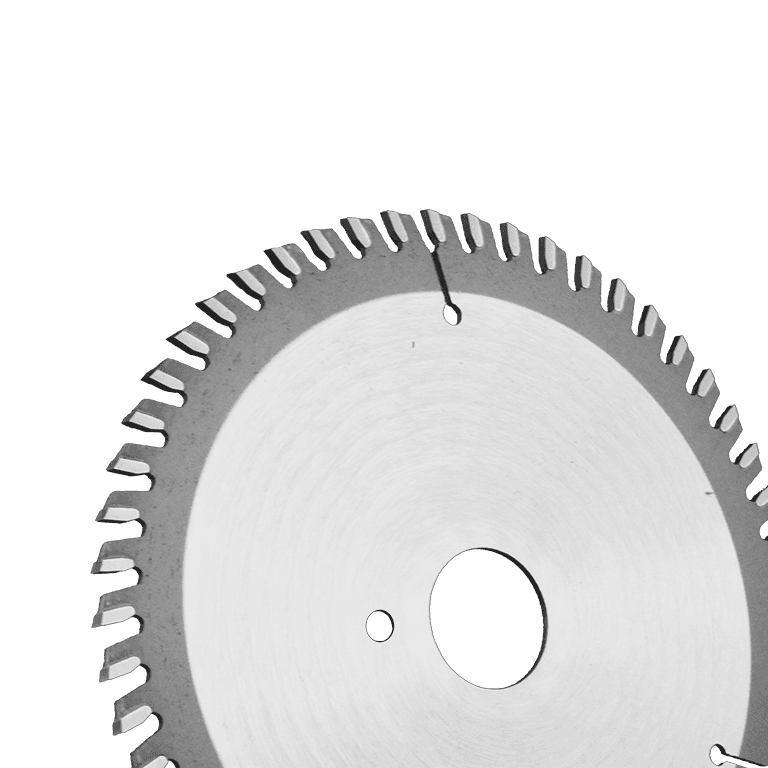

CNC Aggregate Saw Blades
Carbide tipped saw blades for aggregates on CNC machines, various hook angles and tooth designs for aluminum, solid wood and plastics.
Hw
Sw
Hp
Al
Machine Types
Aggregate
Industries
Cabinet & Casegoods Manufacturing
Window and Door
Advanced Composite Materials

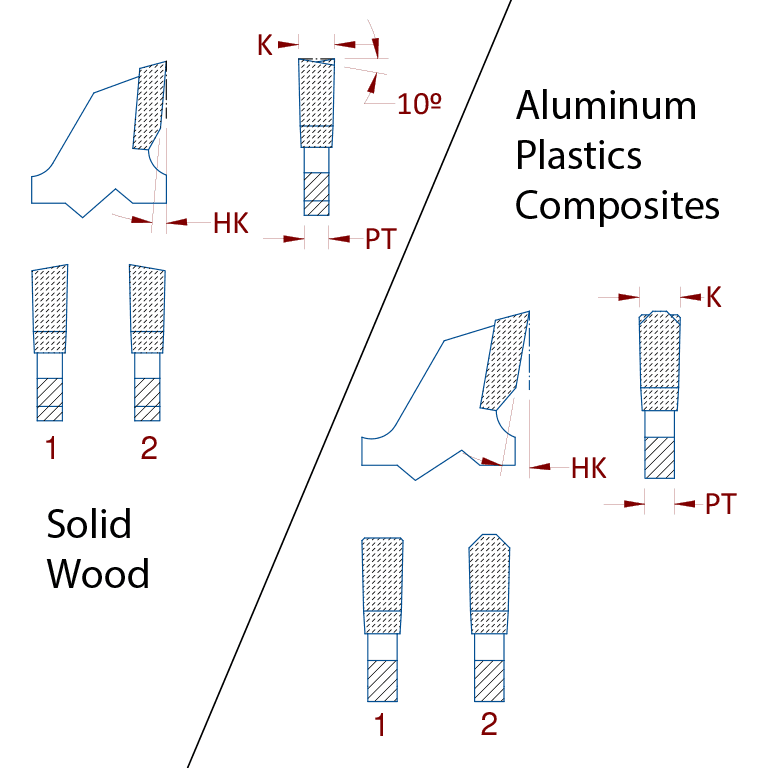

| Part | D | K | Z | d | Pinholes | PT | HK | Tooth | Line |
|---|---|---|---|---|---|---|---|---|---|
| 34100363ALU | 100mm | 3.2mm | 36 | 30mm | 2/6.5/42 | 2.2mm | -5º | Industrial | |
| 34100363ATB | 100mm | 3.2mm | 36 | 30mm | 2/6.5/42 | 2.2mm | 15º | Industrial | |
| 34150363ATB | 150mm | 3.2mm | 36 | 30mm | 2/6.5/42 | 2.2mm | 15º | Industrial | |
| 34150483ALU | 150mm | 3.2mm | 48 | 30mm | 2/6.5/42 | 2.2mm | -5º | Industrial | |
| 34150483ATB | 150mm | 3.2mm | 48 | 30mm | 2/6.5/42 | 2.2mm | 15º | Industrial | |
| 34150483TCG | 150mm | 3.2mm | 48 | 30mm | 2/6.5/42 | 2.2mm | 15º | Industrial | |
| 34180483ATB | 180mm | 3.2mm | 48 | 30mm | 2/6.5/42 | 2.2mm | 15º | Industrial |
