Edgebanding Saw Blades

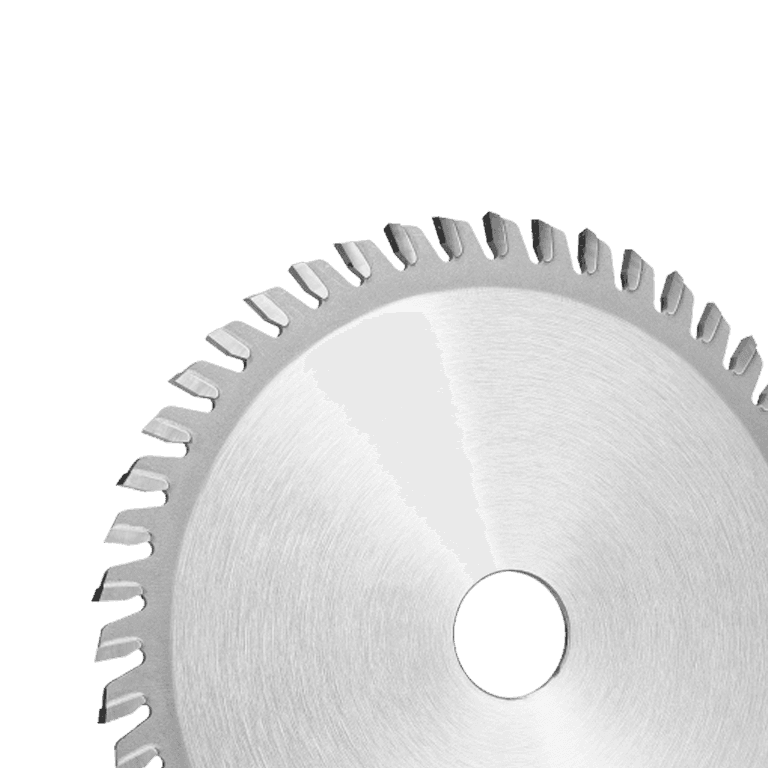

Carbide tipped edgebanding/clipping saw blades. Designed to be used on automatic edge banding machines for clipping PVC and wood tape.
Hw
Hp
Sp
Machine Types
Edgebander
Industries
Cabinet & Casegoods Manufacturing

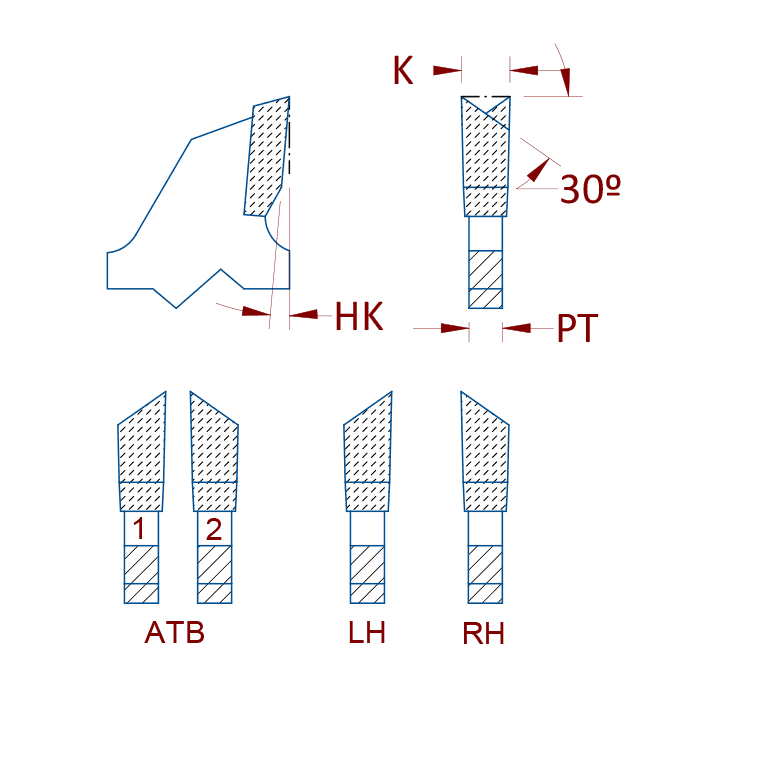

| Part | D | K | Z | d | Pinholes | Countersinks | PT | HK | Tooth | Line |
|---|---|---|---|---|---|---|---|---|---|---|
| 3610002L-16B - | 100mm | 3.2mm | 20 | 16mm | 2.2mm | -6º | LH | Industrial | ||
| 3610002R-16B - | 100mm | 3.2mm | 20 | 16mm | 2.2mm | -6º | RH | Industrial | ||
| 3610002R-32B - | 100mm | 3.2mm | 20 | 32mm | 2.2mm | -6º | LH | Industrial | ||
| 3610004L + | 100mm | 3.0mm | 20 | 32mm | 2.0mm | 8º | LH | Industrial | ||
| 3610004R + | 100mm | 3.0mm | 20 | 32mm | 2.0mm | 8º | RH | Industrial | ||
| 3610006 + | 100mm | 3.6mm | 20 | 32mm | 2.2mm | 8º | ATB | Industrial | ||
| 3610008 | 100mm | 2.6mm | 30 | 32mm | 1.6mm | 8º | ATB | Industrial | ||
| 3610010L + | 100/92mm | 5.6mm | 20 + 20 | 32mm | 2.2mm | 8º | LH | Industrial | ||
| 3610010R + | 100/92mm | 5.6mm | 20 + 20 | 32mm | 2.2mm | 8º | RH | Industrial | ||
| 3610011L | 100mm | 2.6mm | 30 | 30mm | 1.6mm | 5º | LH | Industrial | ||
| 3610011R | 100mm | 2.6mm | 30 | 30mm | 1.6mm | 5º | RH | Industrial | ||
| 3610012 + | 100mm | 2.4mm | 12 | 22mm | 1.6mm | 15º | ATB | Industrial | ||
| 3611002-22 | 110mm | 3.6mm | 20 | 22mm | 2.5mm | 8º | ATB | Industrial | ||
| 3611002-32 | 110mm | 3.6mm | 20 | 32mm | 2.5mm | 8º | ATB | Industrial | ||
| 3611003L-40B | 110mm | 3.2mm | 20 | 40mm | 4/6/52 | 2.5mm | 10º | LH | Industrial | |
| 3611003R-40B | 110mm | 3.2mm | 20 | 40mm | 4/6/52 | 2.5mm | 10º | RH | Industrial | |
| 3611502L52 | 115mm | 3.2mm | 30 | 52mm | 2.5mm | 10º | LH | Industrial | ||
| 3611502L56 | 115mm | 3.2mm | 30 | 56mm | 3/6.6/8.2 | 2.2mm | 10º | LH | Industrial | |
| 3611502R52 | 115mm | 3.2mm | 30 | 52mm | 2.5mm | 10º | RH | Industrial | ||
| 3611502R56 | 115mm | 3.2mm | 30 | 56mm | 3/6.6/8.2 | 2.2mm | 10º | RH | Industrial | |
| 3612002 + | 120mm | 3.2mm | 20 | 20mm | 2.5mm | 10º | Industrial | |||
| 3612002 32B | 120mm | 3.2mm | 20 | 32mm | 2.5mm | 10º | ATB | Industrial | ||
| 3612004L | 120mm | 3.2mm | 20 | 40mm | 4/6/52 | 2.5mm | -5º | LH | Industrial | |
| 3612004R | 120mm | 3.2mm | 20 | 40mm | 4/6/52 | 2.5mm | -5º | RH | Industrial | |
| 3612006 | 120mm | 3.6mm | 24 | 40mm | 4/6/52 RSFC + 4/6/52 LSFC | 2.8mm | 8º | ATB | Industrial | |
| 3614002 + | 140mm | 3.2mm | 36 | 16mm | 2.2mm | 10º | ATB | Industrial | ||
| 3615002L + | 150mm | 3.5mm | 30 | 20mm | 2.2mm | 12º | LH | Industrial | ||
| 3615002R + | 150mm | 3.5mm | 30 | 20mm | 2.2mm | 12º | RH | Industrial | ||
| 3615004L-20B - | 150mm | 3.5mm | 30 | 20mm | 2.2mm | -8º | LH | Industrial | ||
| 3615004R-20B - | 150mm | 3.5mm | 30 | 20mm | 2.2mm | -8º | RH | Industrial | ||
| 3615006 + | 150mm | 3.2mm | 48 | 22mm | 2.2mm | 10º | ATB | Industrial | ||
| 3615007L | 150mm | 3.6mm | 24 + 6 | 30mm | 4/6.3/50 | 2.5mm | 10º | LH | Industrial | |
| 3615007R | 150mm | 3.6mm | 24 + 6 | 30mm | 4/6.3/50 | 2.5mm | 10º | RH | Industrial | |
| 3616002 + | 160mm | 3.2mm | 24 | 30mm | 2.2mm | 15º | ATB | Industrial | ||
| 3616004 + | 160mm | 3.2mm | 48 | 20mm | 2.2mm | 10º | ATB | Industrial | ||
| 3616006 - | 160mm | 3.2mm | 48 | 22mm | 2.2mm | -8º | ATB | Industrial | ||
| 3617002L + | 170mm | 3.2mm | 40 | 20mm | 2.2mm | 10º | LH | Industrial | ||
| 3617002R + | 170mm | 3.2mm | 40 | 20mm | 2.2mm | 10º | RH | Industrial |
