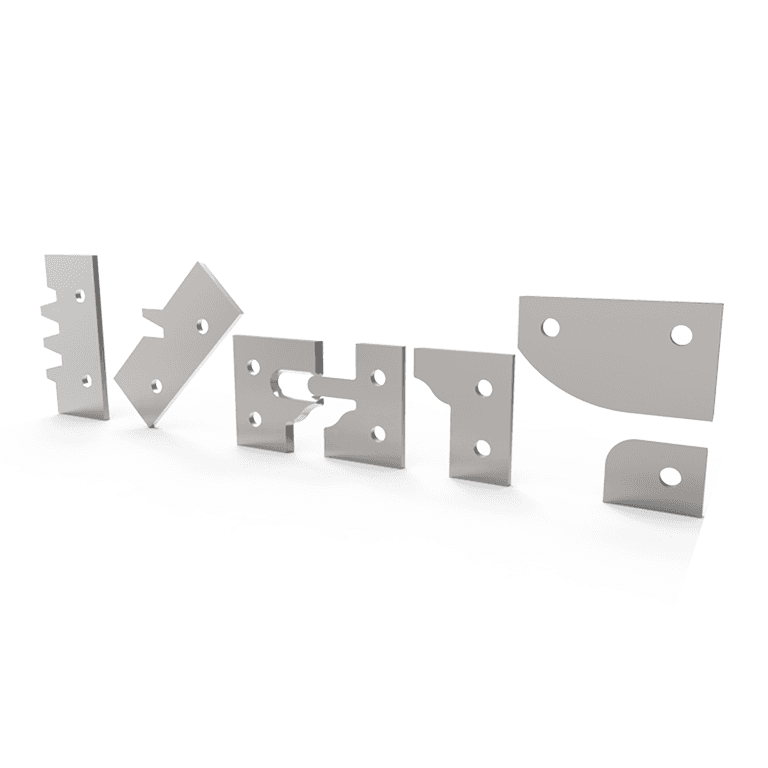

Profiled Carbide Insert Knives for Cutterheads

Replacement Profiled Carbide Inserts for CNC Router Bits

Hw

Fb

Hp

Sp

37 Products

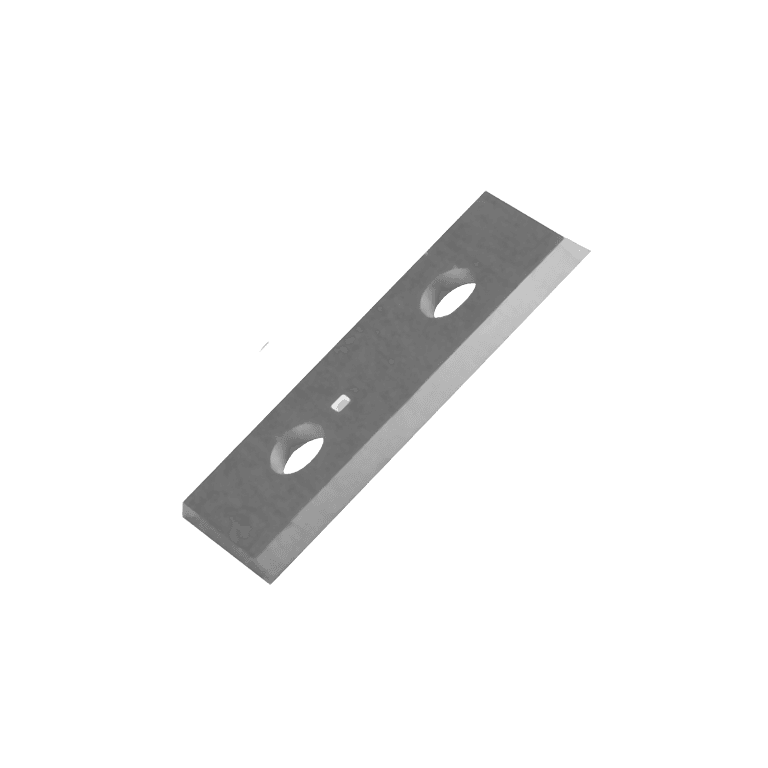

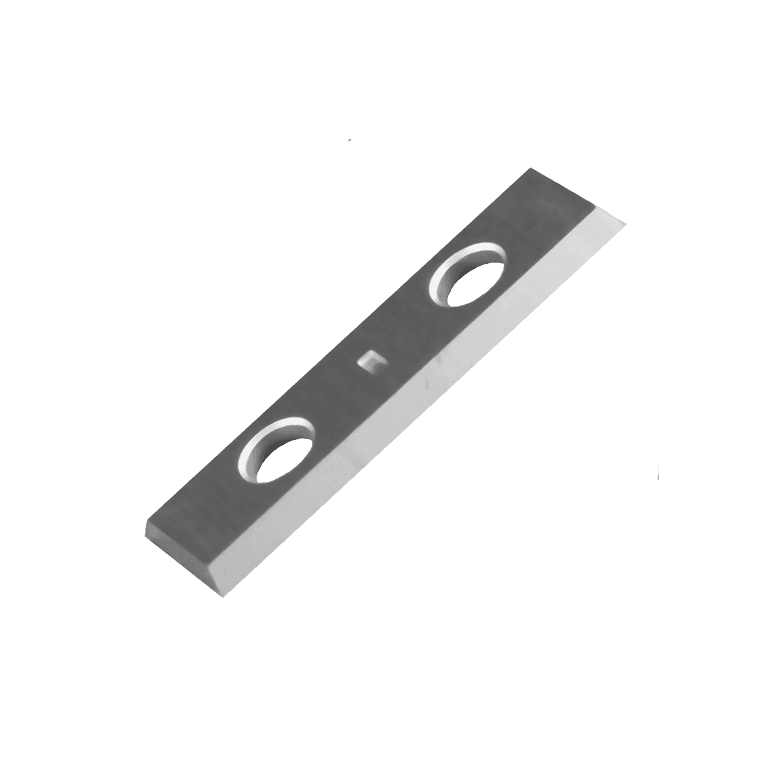

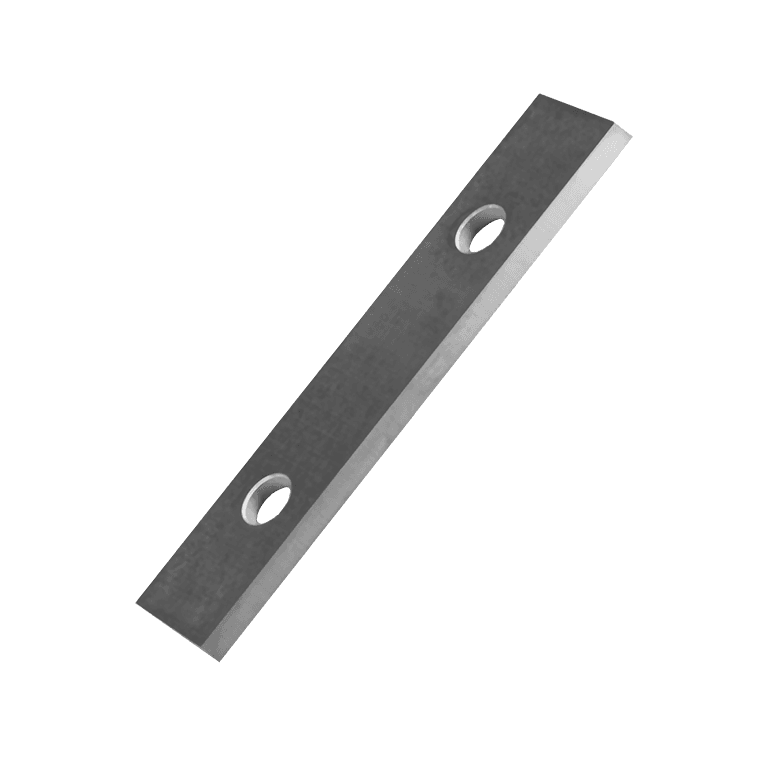

TOK Insert Knives

Premium quality carbide insert knives for indexable insert cutter heads. General purpose grade is good for cutting a variety of materials. Two cutting edges allow the knife to be rotated one time. Sold in packs of ten knives.

25 Products

Four Edge TOK Insert Knives

Premium quality carbide insert knives for indexable insert cutter heads. General purpose grade is good for cutting a variety of materials. Cutting edges on all four sides. Knife can be rotated one time. Sold in packs of ten knives.

16 Products

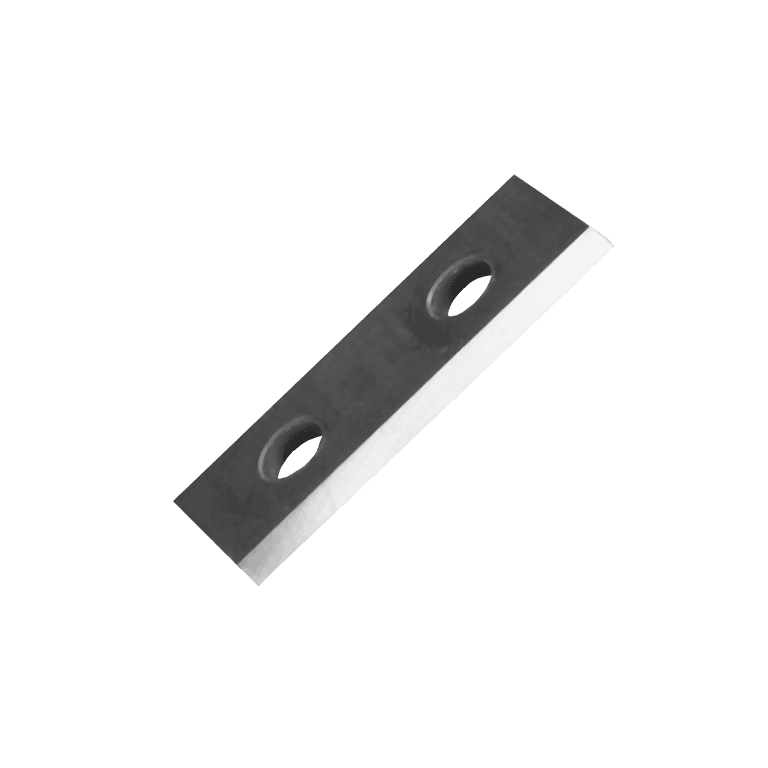

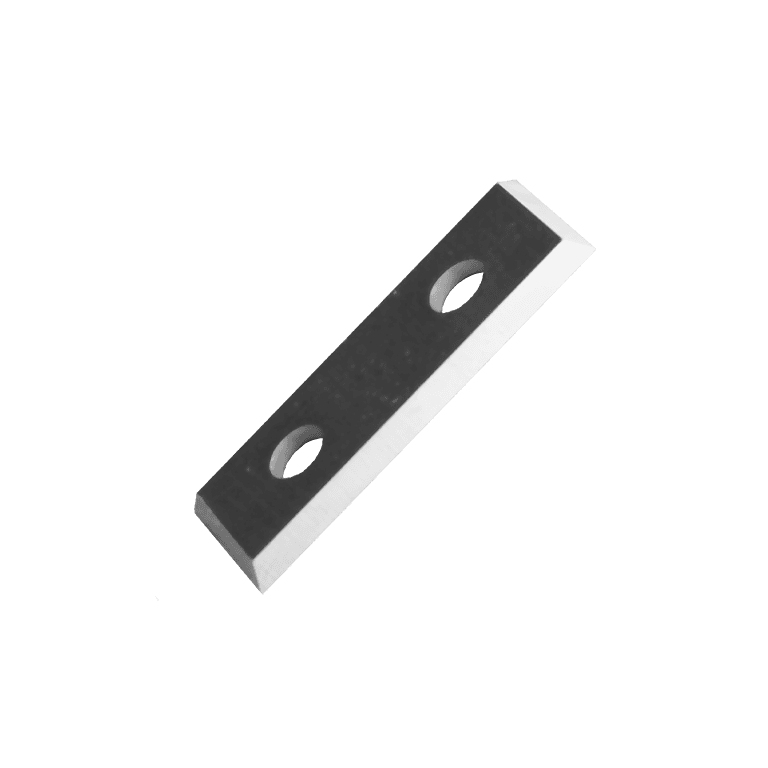

Thin TOK Insert Knives

Premium quality carbide insert knives for indexable insert cutter heads. General purpose grade is good for cutting a variety of materials. Knife has cutting edges on the ends. Knife can be rotated one time. Sold in packs of ten knives.

Hw

Sw

Fb

Pl

Hp

Sp

Part	OA	h	t	a1	b1	b2
590T-0150	15mm	9mm	1.5mm	35º	4mm
590T-0200	20mm	9mm	1.5mm	35º	4mm
590T-0300	30mm	9mm	1.5mm	35º	4mm	14mm
590T-0400	40mm	9mm	1.5mm	35º	4mm	26mm
590T-0500	50mm	9mm	1.5mm	35º	4mm	26mm

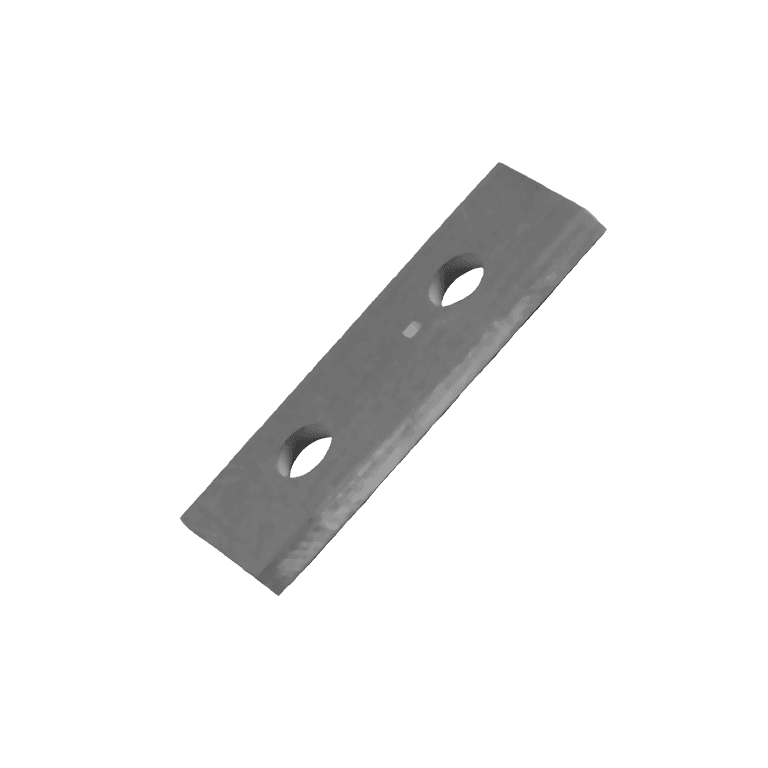

Submicron TOK Insert Knives

Premium quality carbide insert knives for indexable insert cutter heads. Ultra fine hard grade carbide for abrasive materials such as High Density Fiberboard, high pressure laminates and composites. "590S" knives are extremely resistant to wear. Two cutting edges allow knife to be rotated one time. Sold in packs of ten knives.

6 Products

Impact Resistant TOK Insert Knives

Premium quality carbide insert knives for indexable insert cutter heads. Impact resistant grade for high feed rate machining of solid wood, or rough materials. Softer grade is more resilient to breaking or cracking in rough applications. Two cutting edges allow knife to be rotated one time. Sold in packs of ten knives.

Hw

Sw

Fb

Pl

Hp

Sp

Part	OA	h	t	a1	b1	b2
590W-0200	20mm	12mm	1.5mm	35º	4mm
590W-0300 *	30mm	12mm	1.5mm	35º	4mm	14mm
590W-0400	40mm	12mm	1.5mm	35º	4mm	26mm
590W-0500 *	50mm	12mm	1.5mm	35º	4mm	26mm
590W-0600	60mm	12mm	1.5mm	35º	4mm	26mm

Two Edge V Groove Knives

Premium quality carbide insert knives for indexable insert cutter heads. General purpose grade is good for cutting a variety of materials. Bevel end insert knives for V-groove cutterheads. Knife can be rotated one time. Sold in packs of ten knives.

6 Products

Round Edge TOK Insert Knives

Premium quality carbide insert knives for indexable insert cutter heads. Rounded edges to help with reducing lines on planer heads where knives overlap. General purpose grade is good for a variety of material. Two cutting edges allow knife to be rotated one time. Sold in packs of ten knives.

Hw

Sw

Fb

Pl

Hp

Sp

Part	OA	h	t	a1	b1	b2
590SP-0200	20mm	12mm	1.5mm	35º	4mm
590SP-0300	30mm	12mm	1.5mm	35º	4mm	14mm
590SP-0500	50mm	12mm	1.5mm	35º	4mm	26mm

Four Edge Double Bevel TOK Insert Knives

Premium quality carbide insert knives for indexable insert cutter heads. General purpose grade is good for cutting a variety of materials. Bevel end insert knives for V-groove Cutterheads or end cutting router tools. Knife has cutting edge on ends. Knife can be rotated one time. Sold in packs of ten knives.

13 Products

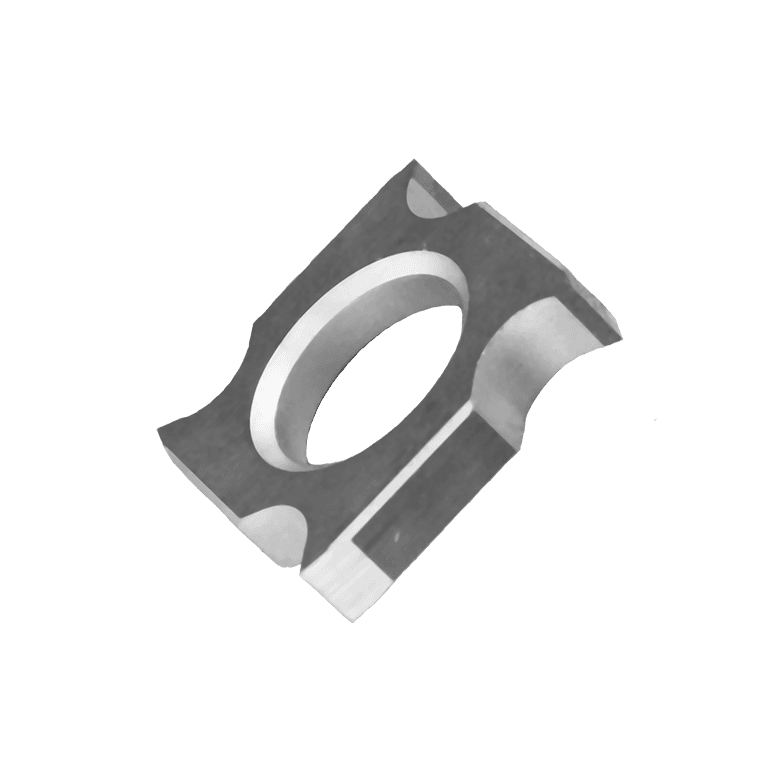

Square Four Wing TOK Insert Knives

Premium quality carbide insert knives for indexable insert cutter heads. General purpose grade is good for cutting a variety of material. Raker insert for use in indexable grooving tools. Knife can be rotated four times. Sold in packs of ten knives.

Hw

Sw

Fb

Pl

Hp

Sp

Part	OA	h	t	a1	b1
591-1824	18mm	18mm	2.45mm	90º	10mm
591-1829	18mm	18mm	2.95mm	90º	10mm
591-1837	18mm	18mm	3.70mm	90º	10mm

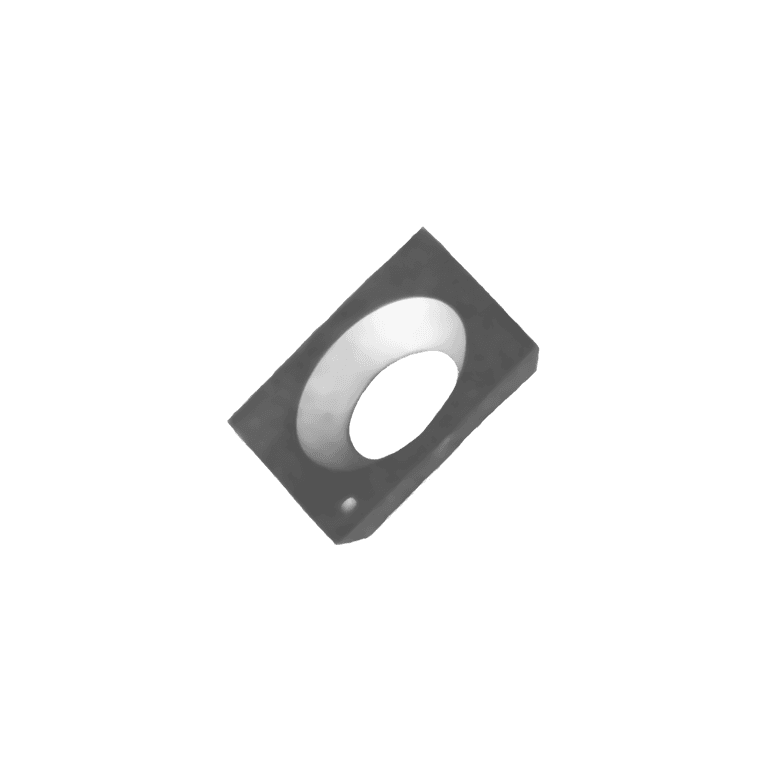

Square Four Edge TOK Insert Knives

Premium quality carbide insert knives for indexable insert cutter heads. General purpose grade is good for cutting a variety of materials. Square inserts for spiral planer heads or spur locations. Sold in packs of ten knives.

14 Products

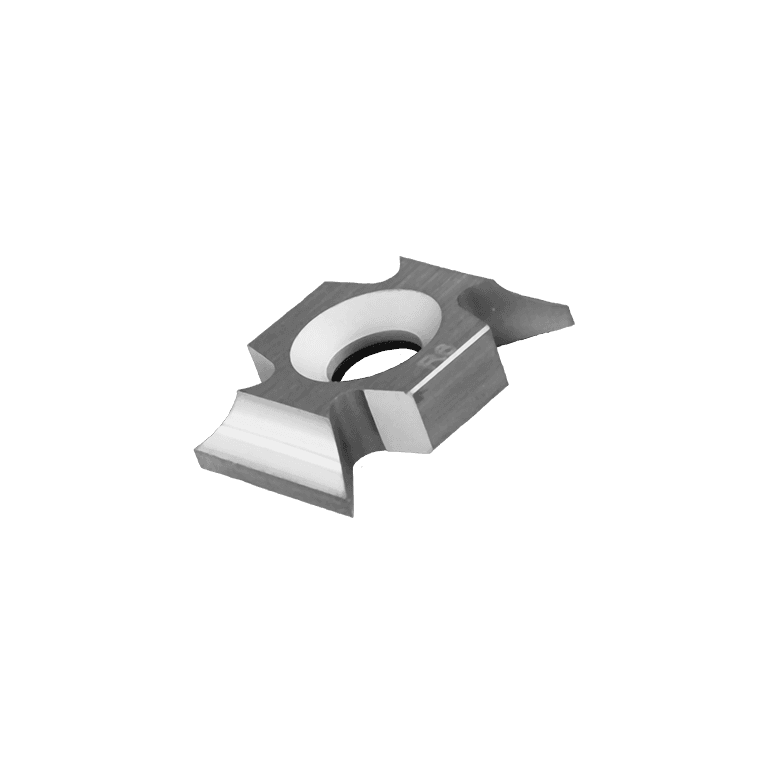

Radius and Bevel TOK Insert Spur Knives

Turnover insert knives for indexable insert tools. General purpose grade for machining most materials. Knives have 4 cutting edges allowing them to be rotated. For applying radii.

7 Products

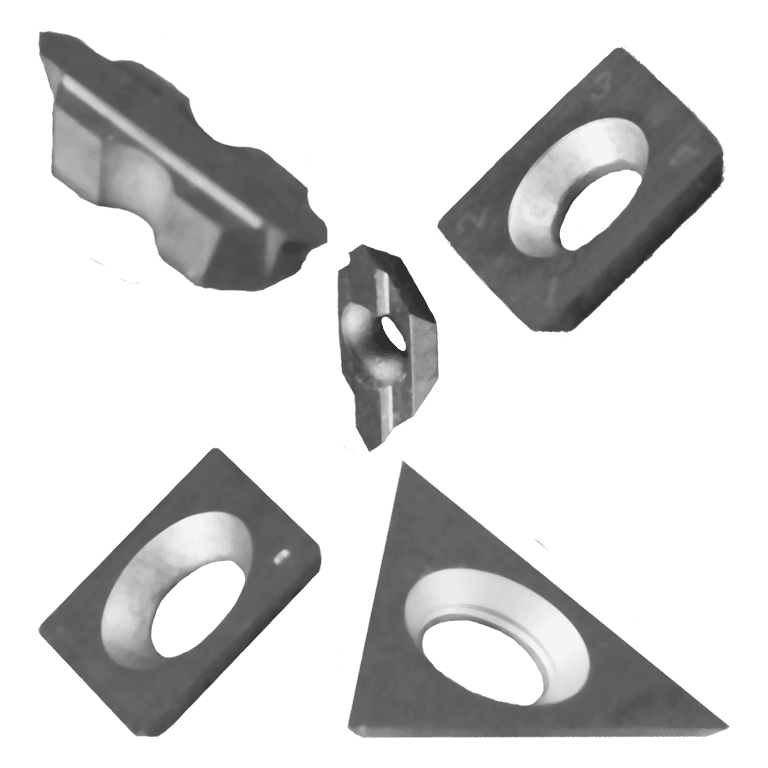

Various TOK Insert Knives

Premium quality carbide insert knives for indexable insert cutter heads. See sketch for dimensions. General purpose grade is good for cutting a variety of materials. Assortment of styles and shapes for various applications. Sold in packs of ten knives.

6 Products

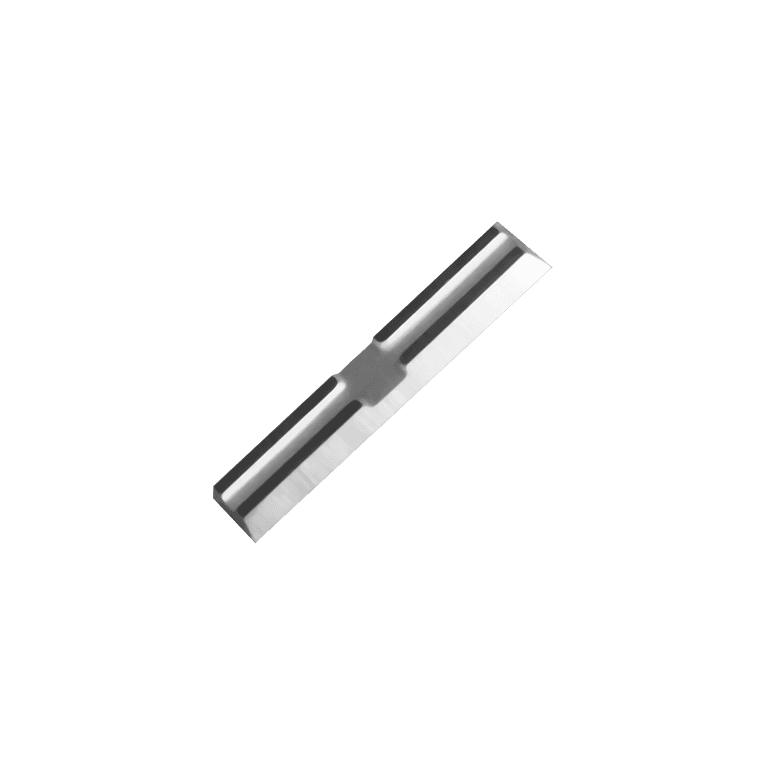

Two Edge Back Groove Mini TOK Insert Knives

Premium quality carbide insert knives for indexable insert cutter heads. General purpose grade is good for cutting a variety of materials. Thin insert knives for various insert heads. Knife can be rotated one time. Sold in packs of ten knives.

Hw

Sw

Fb

Pl

Hp

Sp

Part	OA	h	t
594B-2055	20mm	5.5mm	1.1mm
594B-3055	30mm	5.5mm	1.1mm
594B-5055	50mm	5.5mm	1.1mm

Four Edge Back Groove Mini TOK Insert Knives

Premium quality carbide insert knives for indexable insert cutter heads. General purpose grade is good for cutting a variety of materials. For use in insert TOK cutterheads and router bits. Knife can be rotated one time. Sold in packs of ten knives.

Hw

Sw

Fb

Pl

Hp

Sp

Part	OA	h	t	a1	a2
594L-2041 (005186)	20mm	4.1mm	1.1mm	35º	20º
594L-2055 (005187)	20mm	5.5mm	1.1mm	35º	20º
594L-4055 (005190)	40mm	5.5mm	1.1mm	35º	20º

Four Edge Back Groove Angle Mini TOK Insert Knives

Premium quality carbide insert knives for indexable insert cutter heads. General purpose grade is good for cutting a variety of materials. Bevel end insert knives for V-groove Cutterheads or end cutting router tools. Knife has cutting edge on ends. Knife can be rotated one time. Sold in packs of ten knives.

Hw

Sw

Fb

Pl

Hp

Sp

Part	OA	h	t	a1	a2	a3
595L-3055	30mm	5.5mm	1.1mm	35º	20º	5º

Two Edge Face Groove Mini TOK Insert Knives

Premium quality carbide insert knives for indexable insert cutter heads. General purpose grade is good for cutting a variety of materials. Thin insert knives for various insert heads. Knife can be rotated one time. Sold in packs of ten knives.

15 Products

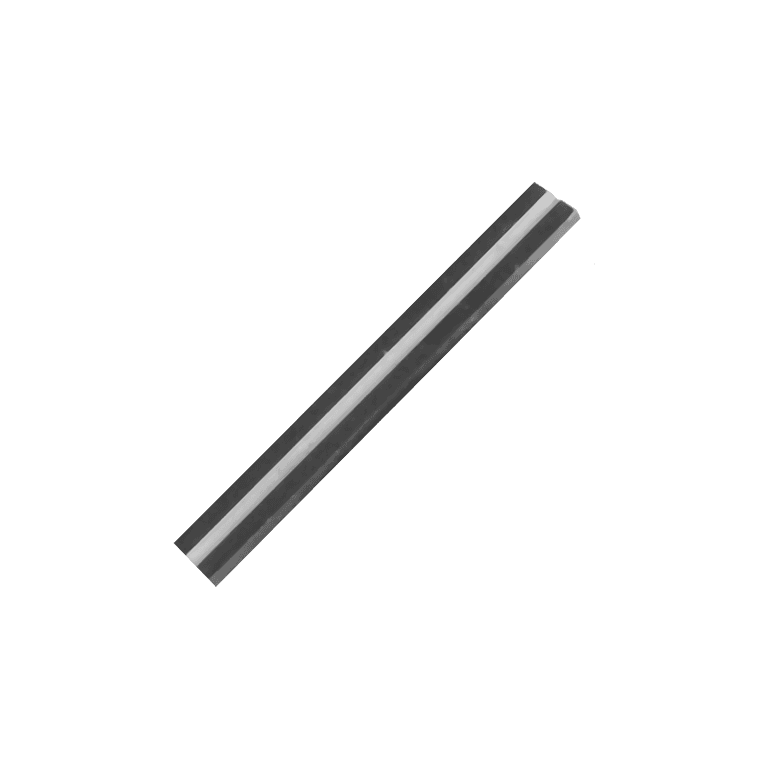

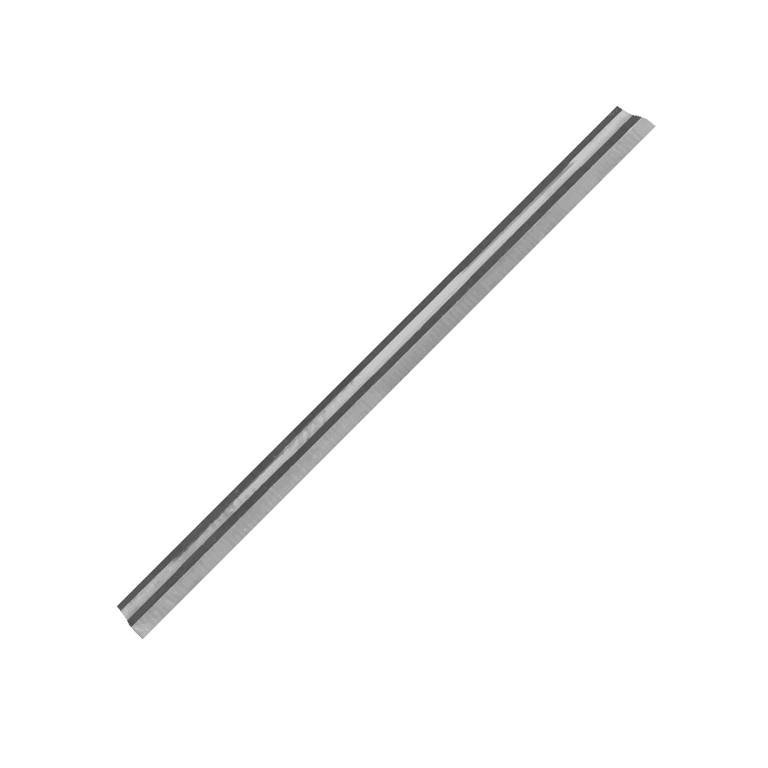

Portable Planer TOK Insert Knives

Premium quality carbide insert knives for indexable insert cutter heads. General purpose grade for variety of materials. Knives used in Adler portable electric planers. Sold in packs of ten knives.

Hw

Sw

Fb

Pl

Hp

Sp

Part	OA	h	t
596-5655	56.0mm	5.5mm	1.1mm
596-7555	75.5mm	5.5mm	1.1mm
596-8059	80.5mm	5.9mm	1.2mm
596-8255	82.0mm	5.5mm	1.1mm

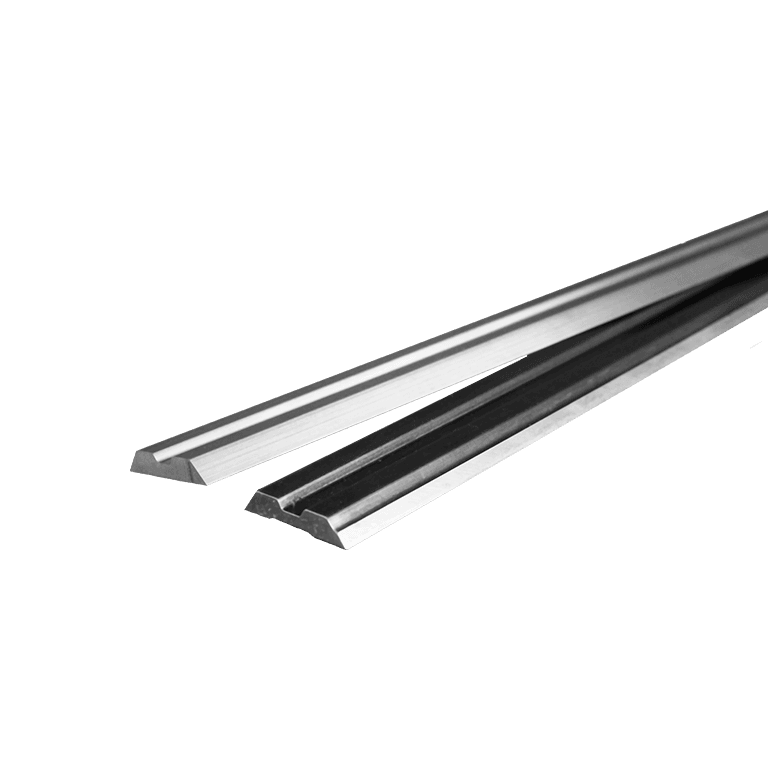

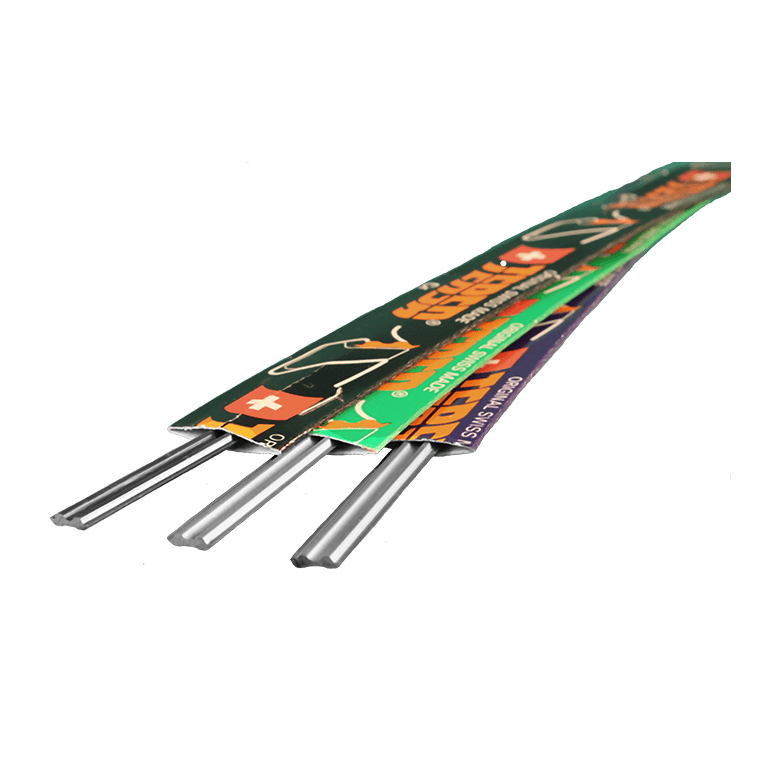

Tersa Tok Insert Knives

Chrome, HSS, M42, Solid Carbide knives for Tersa planar systems. Premium made steel and carbide. Chrome, HSS, M42 are good for softwood and most hardwoods. Solid carbide provides 10 times the life of HSS in hardwoods and other man made materials such as MDF.

161 Products

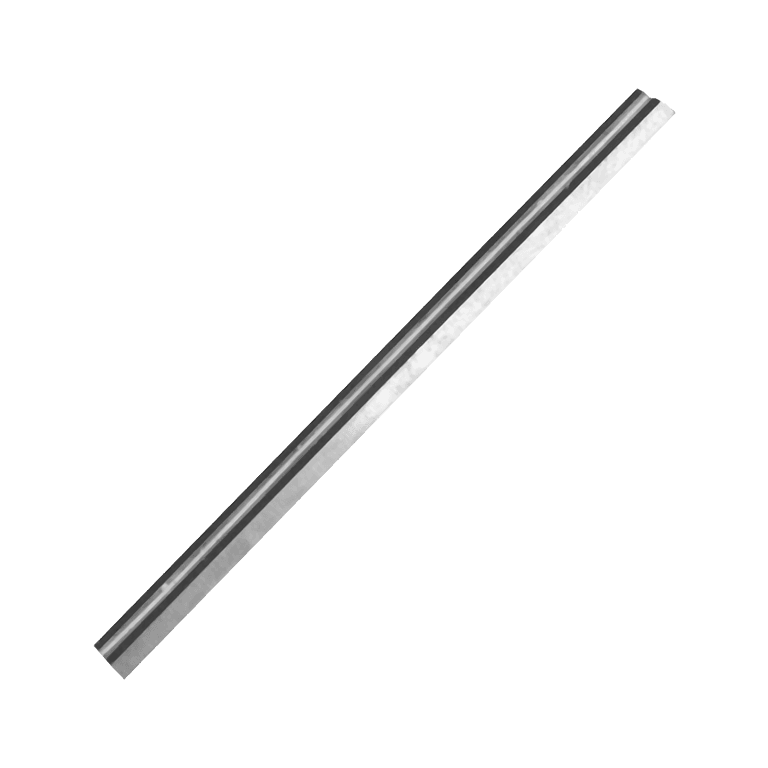

Terminus TOK Insert Knives

Solid carbide and HSS knives for Terminus planar systems. Premium made steel and carbide. HSS good for softwood and most hardwoods. Solid carbide provides 10 times the life of HSS in hardwoods and other man made materials such as MDF.

19 Products

Centrolock TOK Insert Knives

Solid carbide and HSS knives for Centrolock planar systems. Premium made steel and carbide. HSS good for softwood and most hardwoods. Solid carbide provides 10 times the life of HSS in hardwoods and other man made materials such as MDF.

39 Products
