590SP-0300

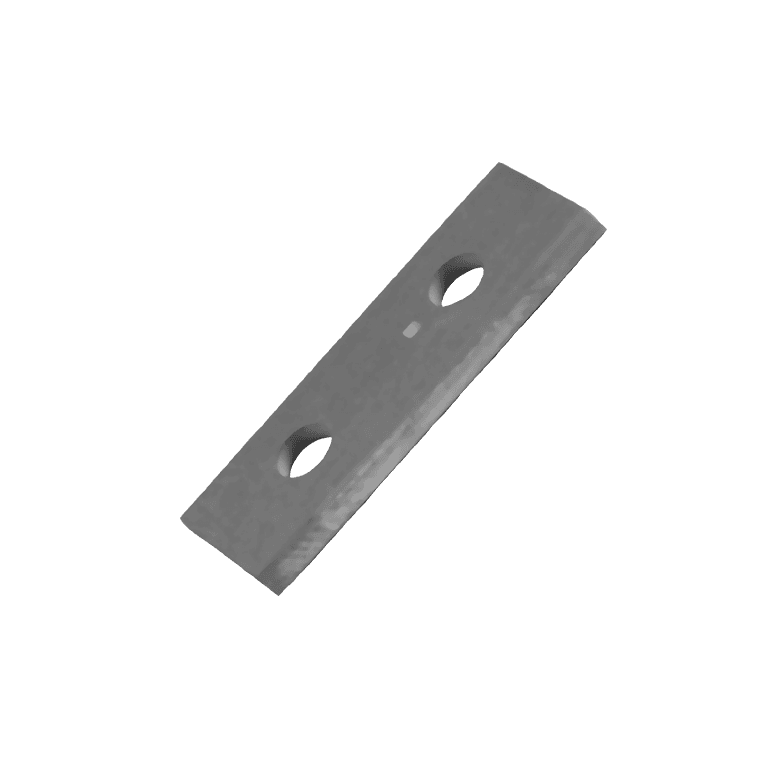

Premium quality carbide insert knives for indexable insert cutter heads. Rounded edges to help with reducing lines on planer heads where knives overlap. General purpose grade is good for a variety of material. Two cutting edges allow knife to be rotated one time. Sold in packs of ten knives.

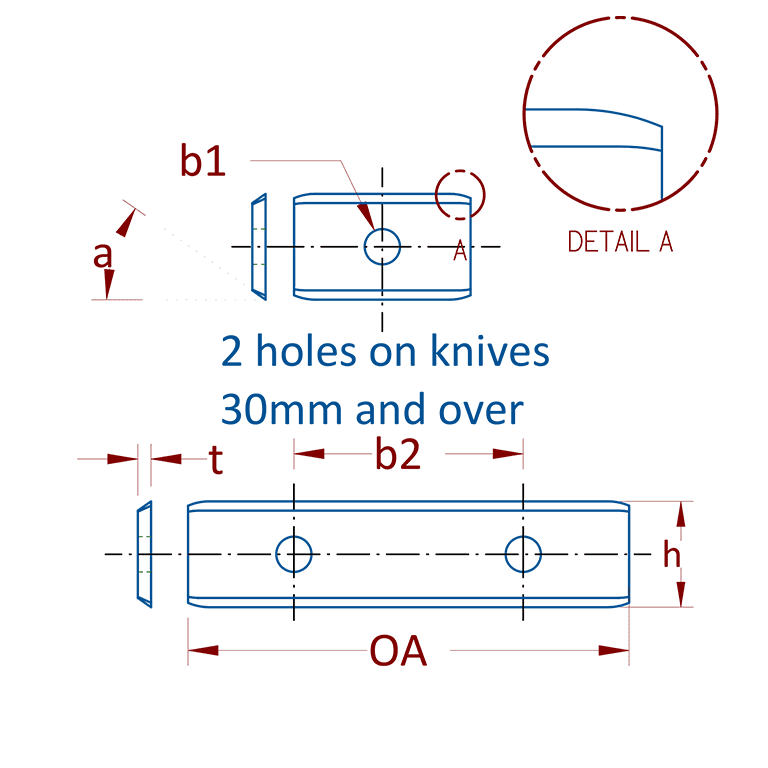

Overall Length (OA) | 30mm |
Material (Material) | HW |
Angle Variable 1 (a1) | 35º |
Dimension Variable 1 (b1) | 4mm |
Dimension Variable 2 (b2) | 14mm |
Height (h) | 12mm |
Thickness (t) | 1.5mm |
