590T-0300

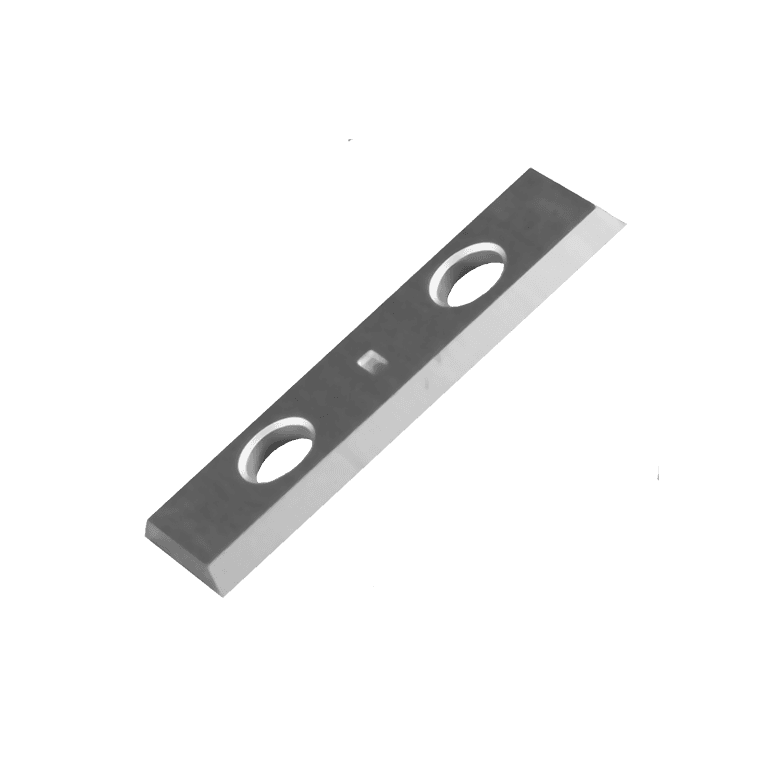

Premium quality carbide insert knives for indexable insert cutter heads. General purpose grade is good for cutting a variety of materials. Knife has cutting edges on the ends. Knife can be rotated one time. Sold in packs of ten knives.

590T-0300 1
590T-0300 2

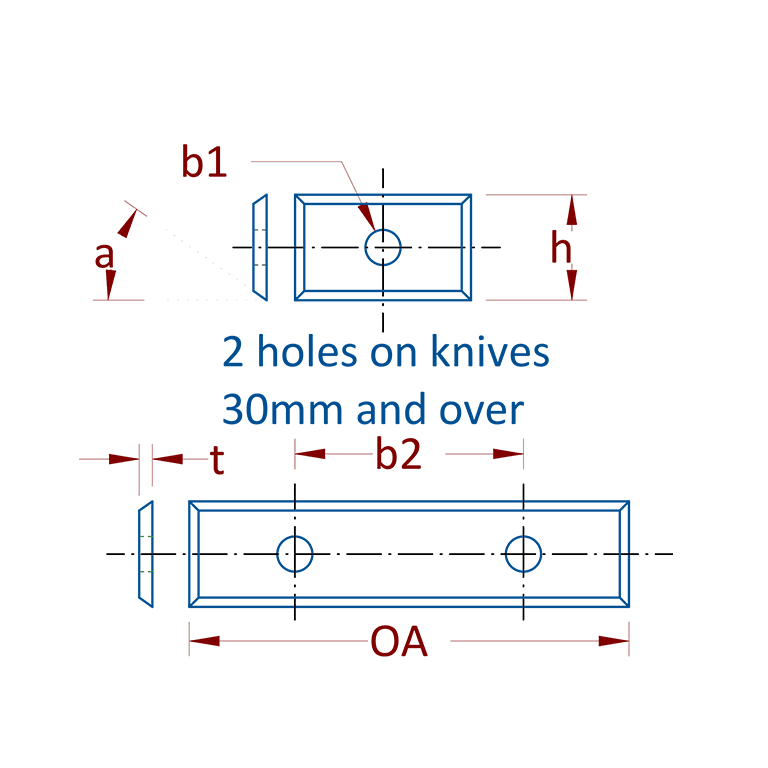

Overall Length (OA)
30mm
Material (Material)
HW
Angle Variable 1 (a1)
35º
Dimension Variable 1 (b1)
4mm
Dimension Variable 2 (b2)
14mm
Height (h)
9mm
Thickness (t)
1.5mm
