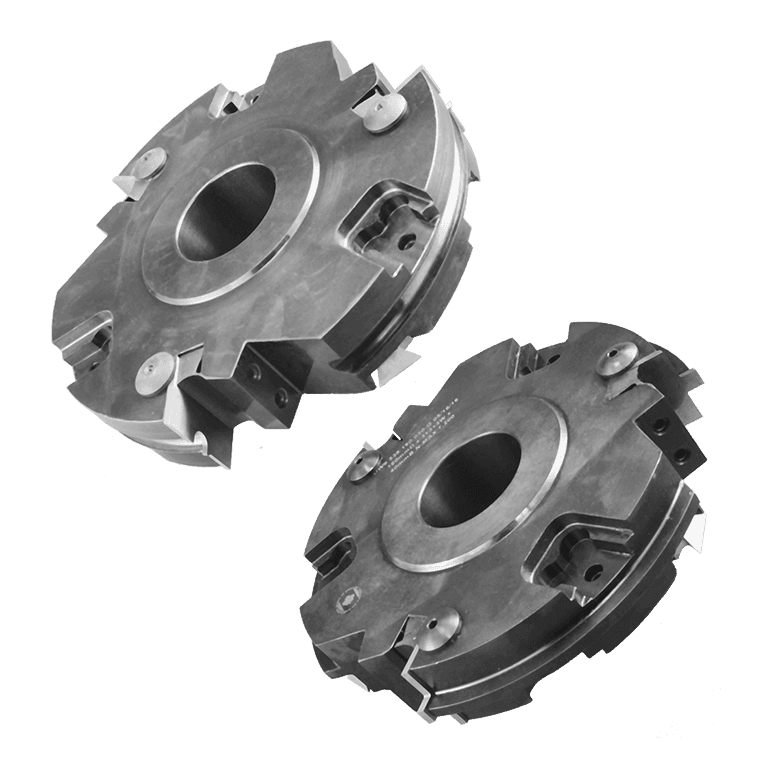

Hardwood Flooring Cutterheads
Standard low feed rate moulder tools for producing hardwood flooring. Profile conforms to NOFMA standard. Optional bevel and radius knives.
Hw
Sw
Pb
Fb
Pl
Machine Types
Moulder
Industries

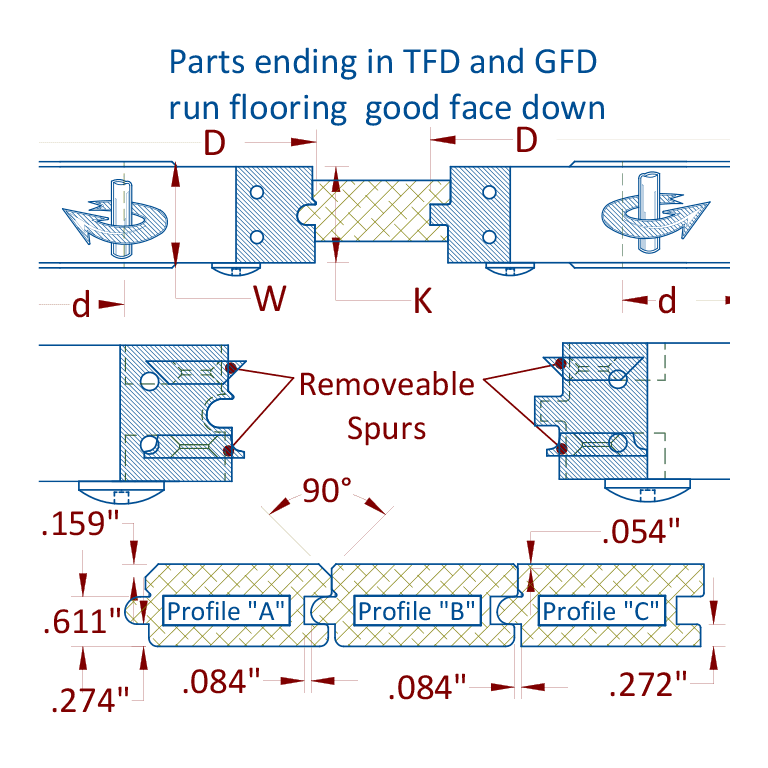

| Part | D | K | W | Z | d |
|---|---|---|---|---|---|
| 538-160.030-G | 160mm | 30mm | 1.300" | 3+3+3 | 40mm |
| 538-160.030-GFD | 160mm | 30mm | 1.300" | 3+3+3 | 40mm |
| 538-160.030-GFD-1.8 | 160mm | 30mm | 1.300" | 3+3+3 | 1.8125" |
| 538-160.030-T | 160mm | 30mm | 1.300" | 3+3+3 | 40mm |
| 538-160.030-TFD | 160mm | 30mm | 1.300" | 3+3+3 | 40mm |
| 538-160.030-TFD-1.8 | 160mm | 30mm | 1.300" | 3+3+3 | 1.8125" |
