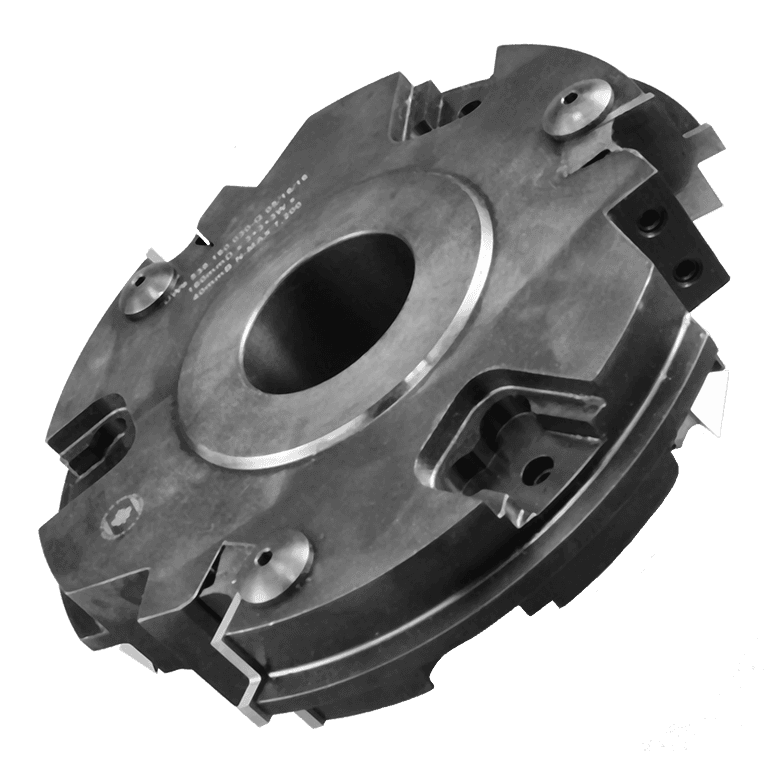

538-160.030-GFD

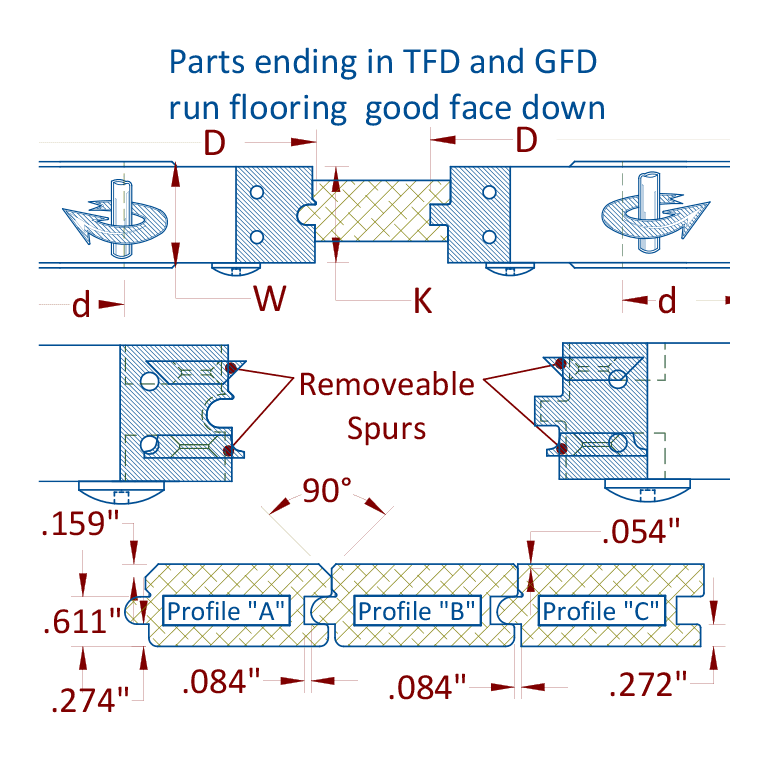

Standard low feed rate moulder tools for producing hardwood flooring running material good face down. Groove profile conforms to NOFMA standard. Optional bevel and radius knives. 40mm bore.
Diameter (D) | 160mm |
Number of Wings/Flutes/Teeth (Z) | 3+3+3 |
Bore Size (d) | 40mm |
Kerf (K) | 30mm |
Cutterhead Width (W) | 1.300" |
Replacement Parts
| Part Number | Description | Quantity Per One |
|---|---|---|
| 158-538-160.030-GFD | Replacement Insert Knife | 3 |
