538-160.030-GFD-1.8

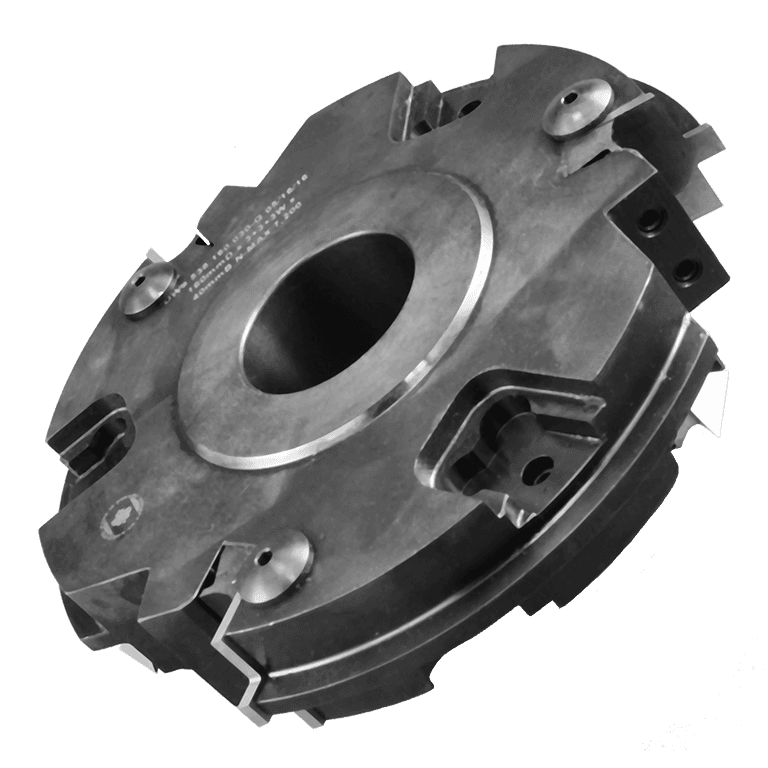

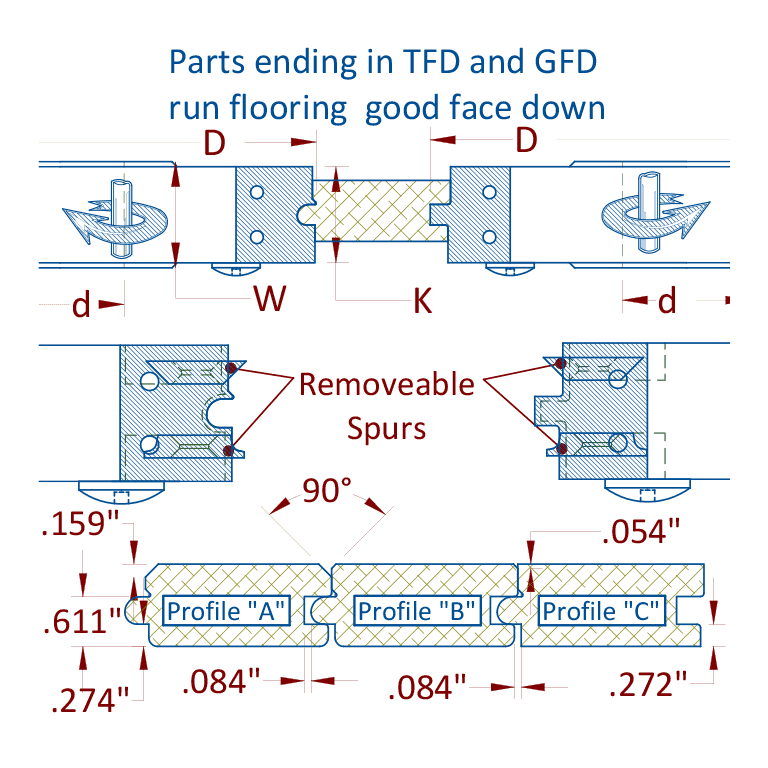

Standard low feed rate moulder tools for producing hardwood flooring running material good face down. Groove profile conforms to NOFMA standard. Optional bevel and radius knives. 1-13/16" bore.
Diameter (D) | 160mm |
Number of Wings/Flutes/Teeth (Z) | 3+3+3 |
Bore Size (d) | 1.8125" |
Kerf (K) | 30mm |
Cutterhead Width (W) | 1.300" |
Replacement Parts
| Part Number | Description | Quantity Per One |
|---|---|---|
| 158-538-160.030-GFD | Replacement Insert Knife | 3 |
