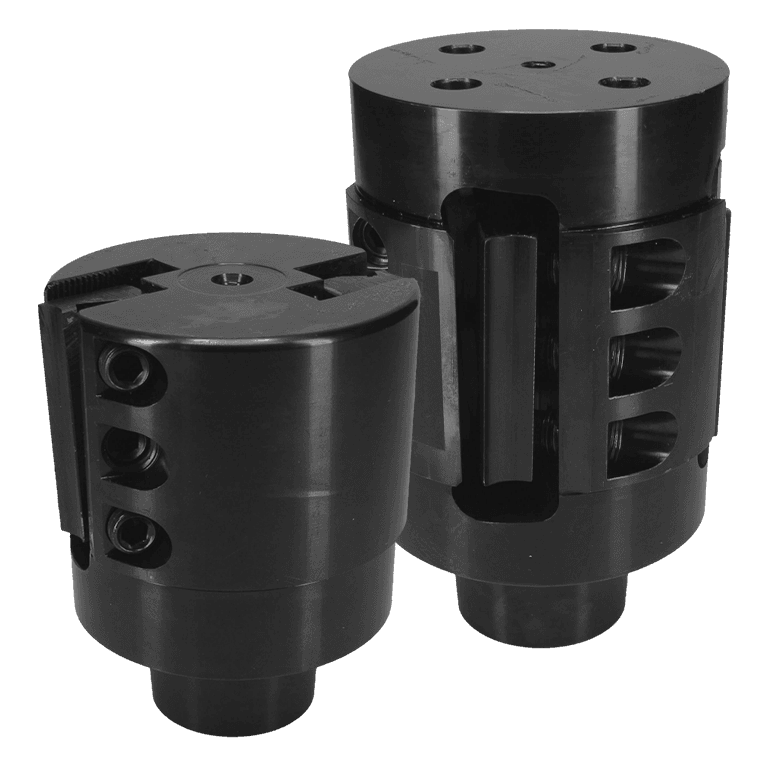

Corrugated Cutterheads for High Speed Moulders
Corrugated heads for HSK85W moulders. Speed tested and balanced to run at 12,000rpm. Steel bodies with precision machined 60° corrugations to hold 579 series corrugated steel. Black oxide treatment for corrosion resistance. 20° hook heads for softwood and 12° hook for hardwood and MDF. Made in North America.
Hw
Sw
Pb
Fb
Pl
Machine Types
Moulder
Industries
Window and Door
MDF Door Manufacturing
Cabinet & Casegoods Manufacturing
Moulding & Millwork
Stairs & Railings
Primary Wood

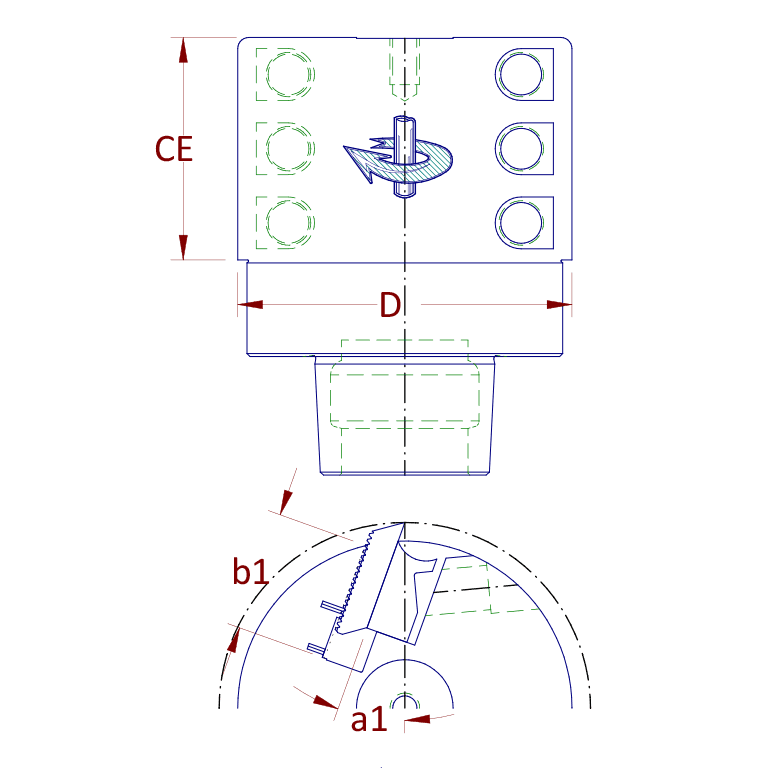

| Part | D | CE | b1 | a1 | Z | Core | Spindle |
|---|---|---|---|---|---|---|---|
| 573P-090040LB2-12 | 90mm | 40mm | 35mm | 12º | 2 | HSK85W | Bottom/Left |
| 573P-090050LB2-20 | 90mm | 50mm | 35mm | 20º | 2 | HSK85W | Bottom/Left |
| 573P-090050LB4-20 | 90mm | 50mm | 35mm | 20º | 4 | HSK85W | Bottom/Left |
| 573P-090050RT2-20 | 90mm | 50mm | 35mm | 20º | 2 | HSK85W | Top/Right |
| 573P-090050RT4-20 | 90mm | 50mm | 35mm | 20º | 4 | HSK85W | Top/Right |
| 573P-090060LB2-12 | 90mm | 60mm | 35mm | 12º | 2 | HSK85W | Bottom/Left |
| 573P-090060LB2-20 | 90mm | 60mm | 35mm | 20º | 2 | HSK85W | Bottom/Left |
| 573P-090060LB4-12 | 90mm | 60mm | 35mm | 12º | 4 | HSK85W | Bottom/Left |
| 573P-090060LB4-20 | 90mm | 60mm | 35mm | 20º | 4 | HSK85W | Bottom/Left |
| 573P-090060RT2-12 | 90mm | 60mm | 35mm | 12º | 2 | HSK85W | Top/Right |
| 573P-090060RT2-20 | 90mm | 60mm | 35mm | 20º | 2 | HSK85W | Top/Right |
| 573P-090060RT4-12 | 90mm | 60mm | 35mm | 12º | 4 | HSK85W | Top/Right |
| 573P-090060RT4-20 | 90mm | 60mm | 35mm | 20º | 4 | HSK85W | Top/Right |
| 573P-090070LB4-20 | 90mm | 70mm | 35mm | 20º | 4 | HSK85W | Bottom/Left |
| 573P-090070RT4-20 | 90mm | 70mm | 35mm | 20º | 4 | HSK85W | Top/Right |
| 573P-090080LB2-12 | 90mm | 80mm | 35mm | 12º | 2 | HSK85W | Bottom/Left |
| 573P-090080LB2-20 | 90mm | 80mm | 35mm | 20º | 2 | HSK85W | Bottom/Left |
| 573P-090080LB4-20 | 90mm | 80mm | 35mm | 20º | 4 | HSK85W | Bottom/Left |
| 573P-090080RT2-12 | 90mm | 80mm | 35mm | 12º | 2 | HSK85W | Top/Right |
| 573P-090080RT2-20 | 90mm | 80mm | 35mm | 20º | 2 | HSK85W | Top/Right |
| 573P-090080RT4-20 | 90mm | 80mm | 35mm | 20º | 4 | HSK85W | Top/Right |
| 573P-090100LB2-12 | 90mm | 100mm | 35mm | 12º | 2 | HSK85W | Bottom/Left |
| 573P-090100LB2-20 | 90mm | 100mm | 35mm | 20º | 2 | HSK85W | Bottom/Left |
| 573P-090100LB4-12 | 90mm | 100mm | 35mm | 12º | 4 | HSK85W | Bottom/Left |
| 573P-090100LB4-20 | 90mm | 100mm | 35mm | 20º | 4 | HSK85W | Bottom/Left |
| 573P-090100RT2-12 | 90mm | 100mm | 35mm | 12º | 2 | HSK85W | Top/Right |
| 573P-090100RT2-20 | 90mm | 100mm | 35mm | 20º | 2 | HSK85W | Top/Right |
| 573P-090100RT4-12 | 90mm | 100mm | 35mm | 12º | 4 | HSK85W | Top/Right |
| 573P-090100RT4-20 | 90mm | 100mm | 35mm | 20º | 4 | HSK85W | Top/Right |
| 573P-090120LB2-12 | 90mm | 120mm | 35mm | 12º | 2 | HSK85W | Bottom/Left |
| 573P-090120RT2-12 | 90mm | 120mm | 35mm | 12º | 2 | HSK85W | Top/Right |
| 573P-090130LB2-12 | 90mm | 130mm | 35mm | 12º | 2 | HSK85W | Bottom/Left |
| 573P-090130LB2-20 | 90mm | 130mm | 35mm | 20º | 2 | HSK85W | Bottom/Left |
| 573P-090130RT2-20 | 90mm | 130mm | 35mm | 20º | 2 | HSK85W | Top/Right |
| 573P-090150LB2-12 | 90mm | 150mm | 35mm | 12º | 2 | HSK85W | Bottom/Left |
| 573P-090150LB2-20 | 90mm | 150mm | 35mm | 20º | 2 | HSK85W | Bottom/Left |
| 573P-090150LB4-20 | 90mm | 150mm | 35mm | 20º | 4 | HSK85W | Bottom/Left |
| 573P-090150RT2-12 | 90mm | 150mm | 35mm | 12º | 2 | HSK85W | Top/Right |
| 573P-090150RT2-20 | 90mm | 150mm | 35mm | 20º | 2 | HSK85W | Top/Right |
| 573P-090150RT4-20 | 90mm | 150mm | 35mm | 20º | 4 | HSK85W | Top/Right |
| 573P-090170LB4-20 | 90mm | 170mm | 35mm | 20º | 4 | HSK85W | Bottom/Left |
| 573P-090170RT4-20 | 90mm | 170mm | 35mm | 20º | 4 | HSK85W | Top/Right |
| 573P-090180LB2-12 | 90mm | 180mm | 35mm | 12º | 2 | HSK85W | Bottom/Left |
| 573P-090180LB2-20 | 90mm | 180mm | 35mm | 20º | 2 | HSK85W | Bottom/Left |
| 573P-090180RT2-12 | 90mm | 180mm | 35mm | 12º | 2 | HSK85W | Top/Right |
| 573P-090180RT2-20 | 90mm | 180mm | 35mm | 20º | 2 | HSK85W | Top/Right |
| 573P-090210LB2-20 | 90mm | 210mm | 35mm | 20º | 2 | HSK85W | Bottom/Left |
| 573P-090210LB4-20 | 90mm | 210mm | 35mm | 20º | 4 | HSK85W | Bottom/Left |
| 573P-090210RT2-20 | 90mm | 210mm | 35mm | 20º | 2 | HSK85W | Top/Right |
| 573P-090210RT4-20 | 90mm | 210mm | 35mm | 20º | 4 | HSK85W | Top/Right |
| 573P-090240LB2-20 | 90mm | 240mm | 35mm | 20º | 2 | HSK85W | Bottom/Left |
| 573P-090240LB4-20 | 90mm | 240mm | 35mm | 20º | 4 | HSK85W | Bottom/Left |
| 573P-090240RT2-20 | 90mm | 240mm | 35mm | 20º | 2 | HSK85W | Top/Right |
| 573P-090240RT4-20 | 90mm | 240mm | 35mm | 20º | 4 | HSK80W | Top/Right |
| 573P-090260LB2-20 | 90mm | 260mm | 35mm | 20º | 2 | HSK85W | Bottom/Left |
| 573P-090260LB4-20 | 90mm | 260mm | 35mm | 20º | 4 | HSK85W | Bottom/Left |
| 573P-090260RT2-20 | 90mm | 260mm | 35mm | 20º | 2 | HSK85W | Top/Right |
| 573P-090260RT4-20 | 90mm | 260mm | 35mm | 20º | 4 | HSK85W | Top/Right |
