573P-090060RT2-12
Corrugated heads for HSK80W moulders. Speed tested and balanced to run at 12,000rpm. Steel bodies with precision machined 60º corrugations to hold 579 series corrugated steel. Black oxide treatment for corrosion resistance. 12º hook for hardwood and MDF. Made in North America.

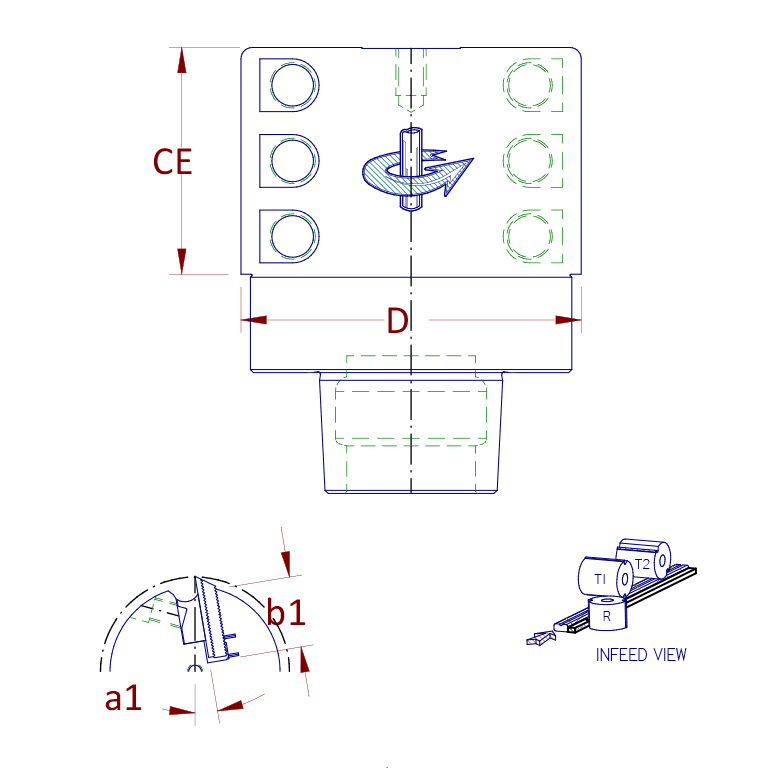

Diameter (D) | 90mm |
Cutting Edge (CE) | 60mm |
Number of Wings/Flutes/Teeth (Z) | 2 |
Angle Variable 1 (a1) | 12º |
Dimension Variable 1 (b1) | 35mm |
Core (Core) | HSK80W |
Spindle (Spindle) | Top/Right |
