573P-090120RT2-12

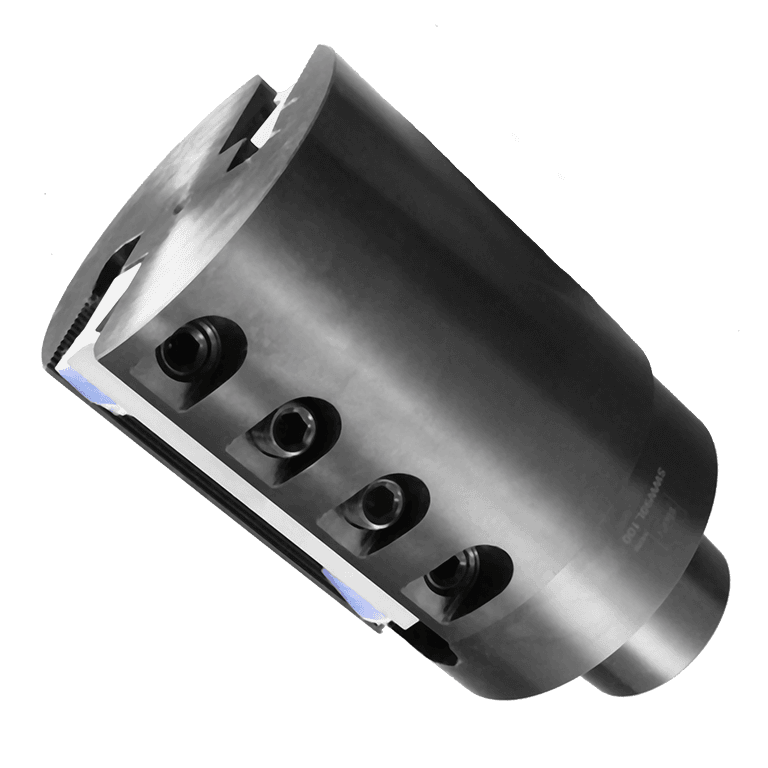

Corrugated heads for HSK85W moulders. Speed tested and balanced to run at 12,000rpm. Steel bodies with precision machined 60° corrugations to hold 579 series corrugated steel. Black oxide treatment for corrosion resistance. 20° hook heads for softwood and 12° hook for hardwood and MDF. Made in North America.

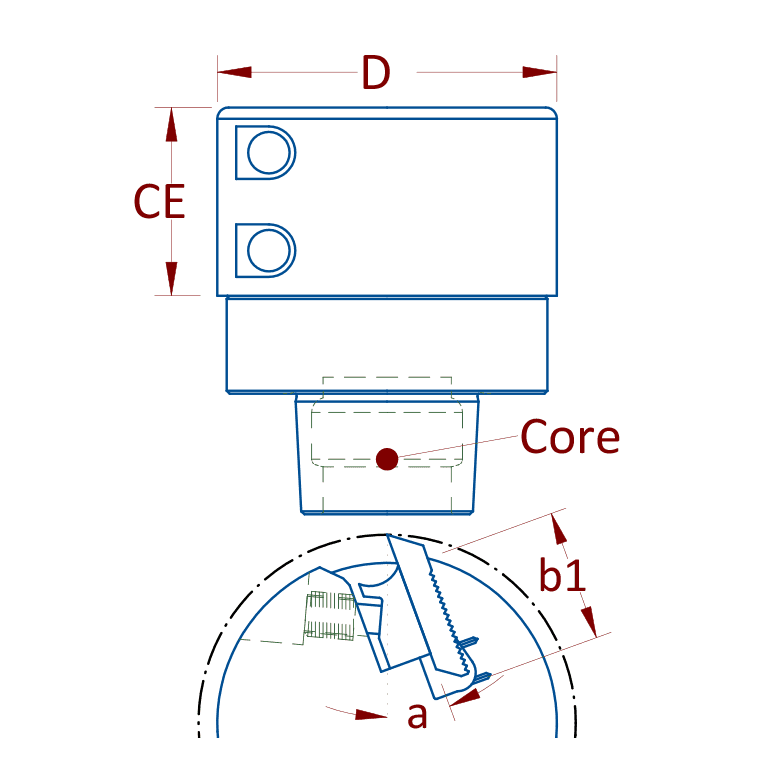

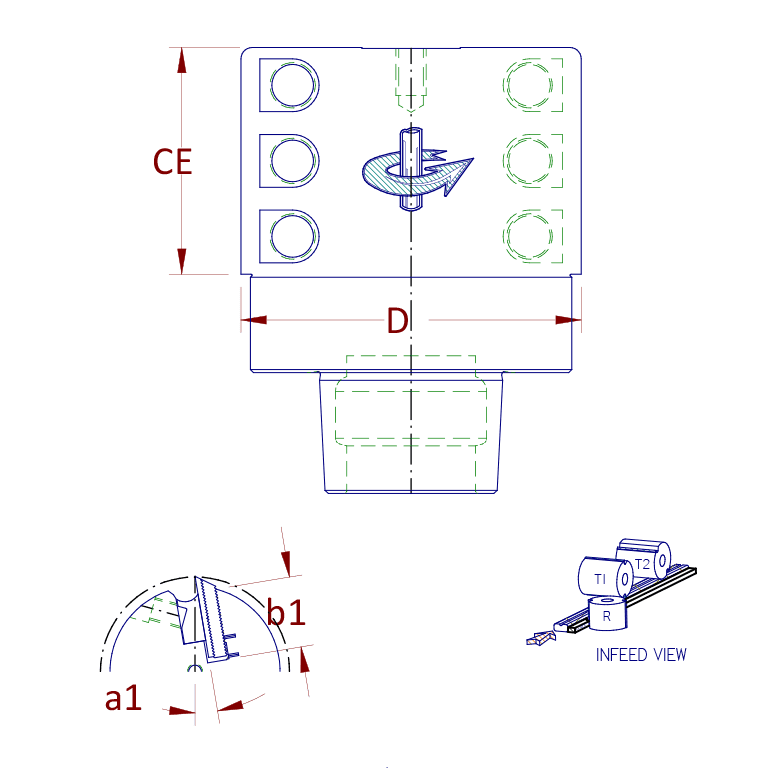

Diameter (D) | 90mm |
Cutting Edge (CE) | 120mm |
Number of Wings/Flutes/Teeth (Z) | 2 |
Angle Variable 1 (a1) | 12º |
Dimension Variable 1 (b1) | 35mm |
Core (Core) | HSK85W |
Spindle (Spindle) | Top/Right |
Machines
Weinig PowerLock
Weinig PoweLock Moulders
