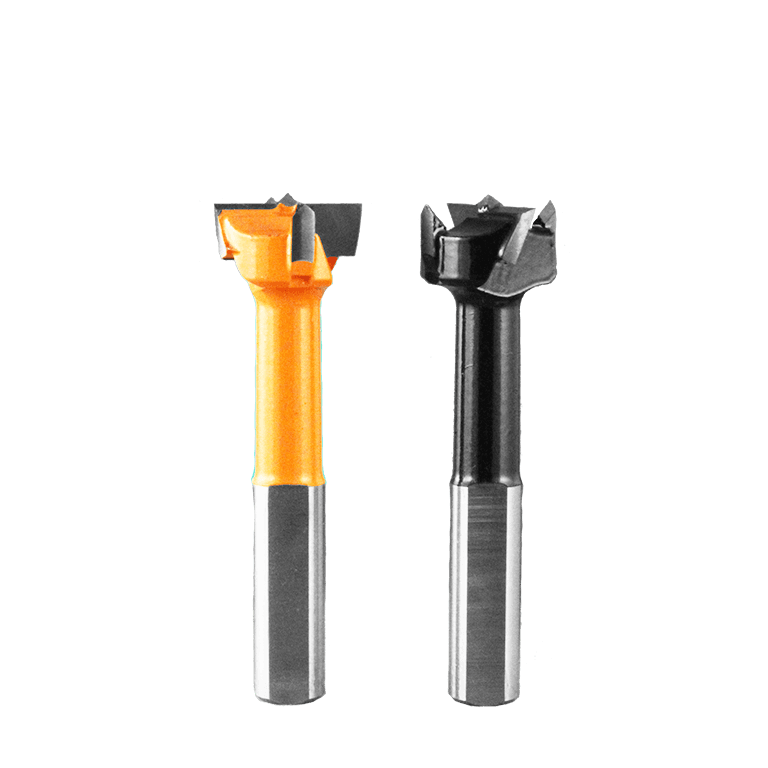

Industrial Hinge Boring Drills 2x2W
For use on CNC drill banks and portable machines. Hinge style bits for drilling larger diameter holes. For drilling blind holes in particle board, MDF, and solid wood. Carbide tipped for long life. Screw in the end for height adjustment.
Hw
Sw
Pb
Fb
Lm
Pl
Machine Types
CNC Router
Industries
Cabinet & Casegoods Manufacturing

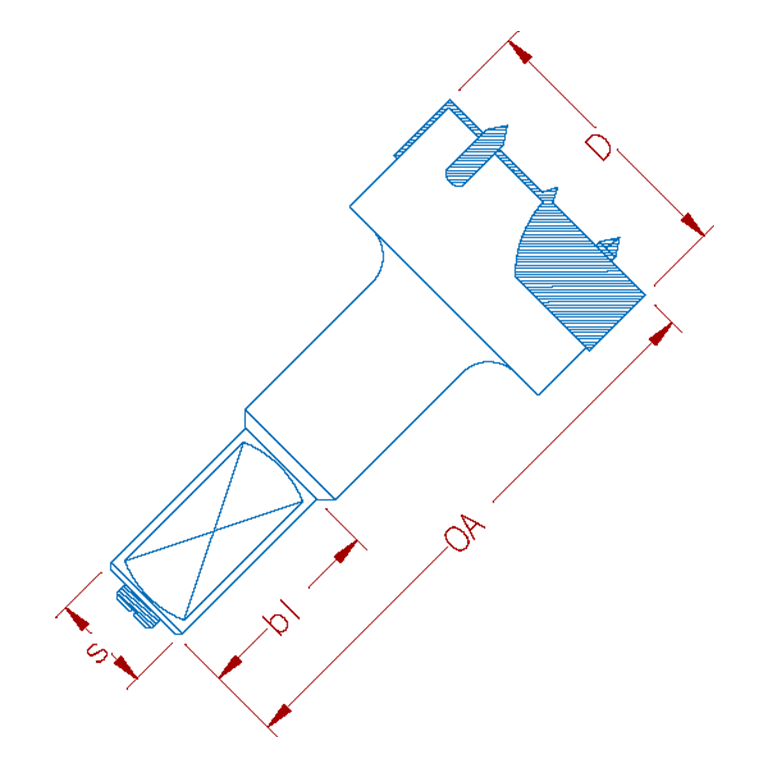

| Part | D | b1 | Sh | Z | Rotation | OA |
|---|---|---|---|---|---|---|
| D180.150L ** | 15mm | 26mm | 10mm | 2+2 | LH | 57mm |
| D180.150R ** | 15mm | 26mm | 10mm | 2+2 | RH | 57mm |
| D180.160L | 16mm | 26mm | 10mm | 2+2 | LH | 57mm |
| D180.160R | 16mm | 26mm | 10mm | 2+2 | RH | 57mm |
| D180.170R | 17mm | 26mm | 10mm | 2+2 | RH | 57mm |
| D180.180L ** | 18mm | 26mm | 10mm | 2+2 | LH | 57mm |
| D180.180R ** | 18mm | 26mm | 10mm | 2+2 | RH | 57mm |
| D180.190R | 19mm | 26mm | 10mm | 2+2 | RH | 57mm |
| D180.200L | 20mm | 26mm | 10mm | 2+2 | LH | 57mm |
| D180.200R | 20mm | 26mm | 10mm | 2+2 | RH | 57mm |
| D180.220L | 22mm | 26mm | 10mm | 2+2 | LH | 57mm |
| D180.220R | 22mm | 26mm | 10mm | 2+2 | RH | 57mm |
| D180.250L ** | 25mm | 26mm | 10mm | 2+2 | LH | 57mm |
| D180.250R | 25mm | 26mm | 10mm | 2+2 | RH | 57mm |
| D180.260L ** | 26mm | 26mm | 10mm | 2+2 | LH | 57mm |
| D180.260R ** | 26mm | 26mm | 10mm | 2+2 | RH | 57mm |
| D180.300L | 30mm | 26mm | 10mm | 2+2 | LH | 57mm |
| D180.300R ** | 30mm | 26mm | 10mm | 2+2 | RH | 57mm |
| D180.320L | 32mm | 26mm | 10mm | 2+2 | LH | 57mm |
| D180.320R | 32mm | 26mm | 10mm | 2+2 | RH | 57mm |
| D180.350L | 35mm | 26mm | 10mm | 2+2 | LH | 57mm |
| D180.350R ** | 35mm | 26mm | 10mm | 2+2 | RH | 57mm |
| D180.350R(CMT) | 35mm | 26mm | 10mm | 2+2 | RH | 57mm |
| D180.380L | 38mm | 26mm | 10mm | 2+2 | LH | 57mm |
| D180.380R | 38mm | 26mm | 10mm | 2+2 | RH | 57mm |
| D180.400L ** | 40mm | 26mm | 10mm | 2+2 | LH | 57mm |
| D180.400R ** | 40mm | 26mm | 10mm | 2+2 | RH | 57mm |
| D185.150L | 15mm | 26mm | 10mm | 2+2 | LH | 70mm |
| D185.150R | 15mm | 26mm | 10mm | 2+2 | RH | 70mm |
| D185.160R | 16mm | 26mm | 10mm | 2+2 | RH | 70mm |
| D185.180L | 18mm | 26mm | 10mm | 2+2 | LH | 70mm |
| D185.180R | 18mm | 26mm | 10mm | 2+2 | RH | 70mm |
| D185.200L | 20mm | 26mm | 10mm | 2+2 | LH | 70mm |
| D185.200R | 20mm | 26mm | 10mm | 2+2 | RH | 70mm |
| D185.220L | 22mm | 26mm | 10mm | 2+2 | LH | 70mm |
| D185.220R | 22mm | 26mm | 10mm | 2+2 | RH | 70mm |
| D185.250L | 25mm | 26mm | 10mm | 2+2 | LH | 70mm |
| D185.250R | 25mm | 26mm | 10mm | 2+2 | RH | 70mm |
| D185.260L | 26mm | 26mm | 10mm | 2+2 | LH | 70mm |
| D185.260R | 26mm | 26mm | 10mm | 2+2 | RH | 70mm |
| D185.300L | 30mm | 26mm | 10mm | 2+2 | LH | 70mm |
| D185.300R | 30mm | 26mm | 10mm | 2+2 | RH | 70mm |
| D185.350L | 35mm | 26mm | 10mm | 2+2 | LH | 70mm |
| D185.350R | 35mm | 26mm | 10mm | 2+2 | RH | 70mm |
| D185.380R | 38mm | 26mm | 10mm | 2+2 | RH | 70mm |
| D185.400L | 40mm | 26mm | 10mm | 2+2 | LH | 70mm |
| D185.400R | 40mm | 26mm | 10mm | 2+2 | RH | 70mm |
