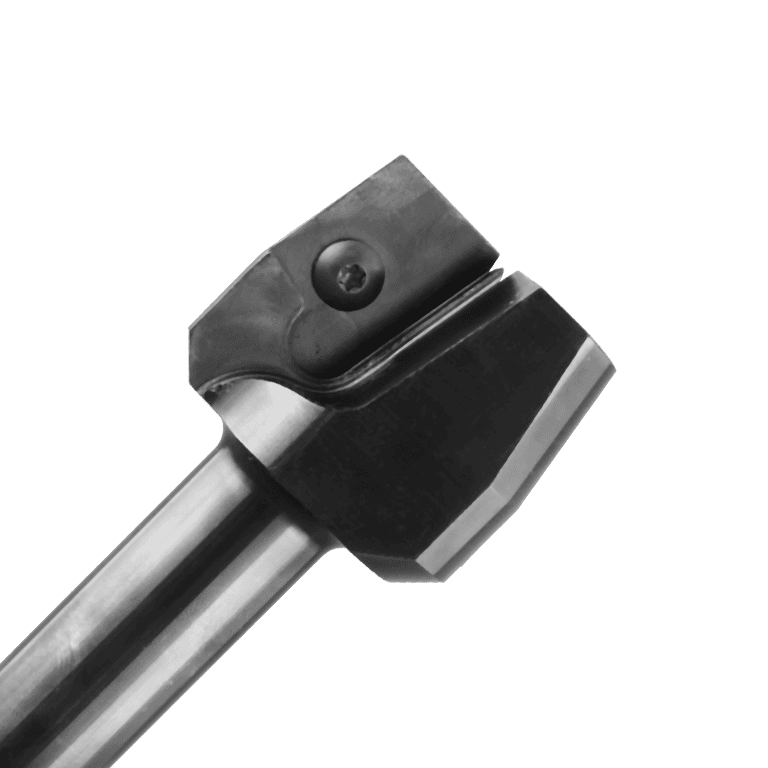

564IP.041-2W

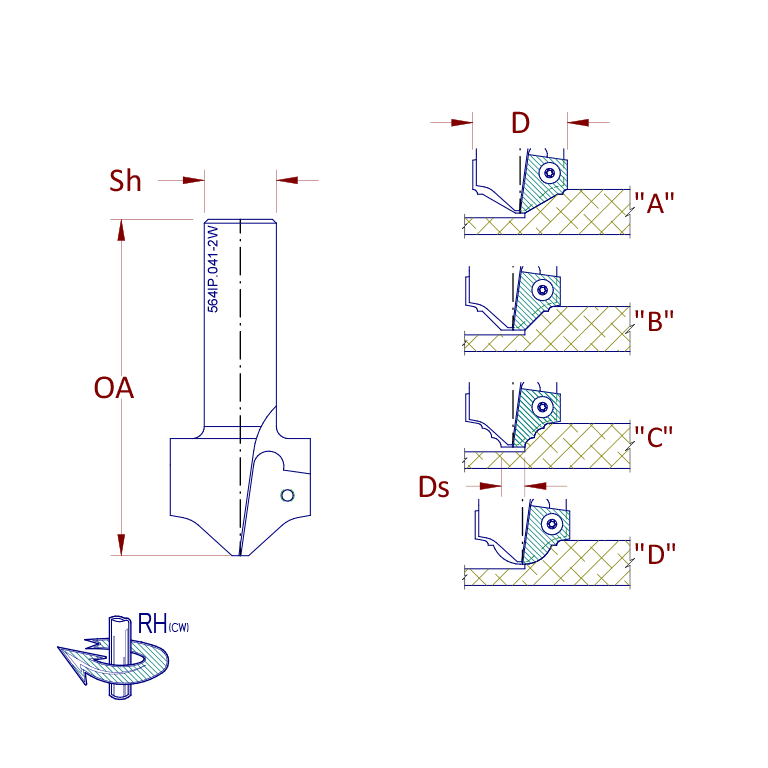

*Tool Body ONLY* Single 564IP.041-2W steel body can accommodate additional profiles "A-D" shown below. Tool is used primarily when manufacturing MDF door profiles.

Diameter
40mm
Shank
0.750"
Overall Length
90mm
Rotation
RH
Number of Wings
2

Replacement Parts

Part NumberDescriptionQuantity Per One
158-564IP.041-2W-AOptional Profiled Insert2
158-564IP.041-2W-BOptional Profiled Insert2
158-564IP.041-2W-COptional Profiled Insert2
158-564IP.041-2W-DOptional Profiled Insert2
580.RH-M3505.9Replacement Knife Screw2
